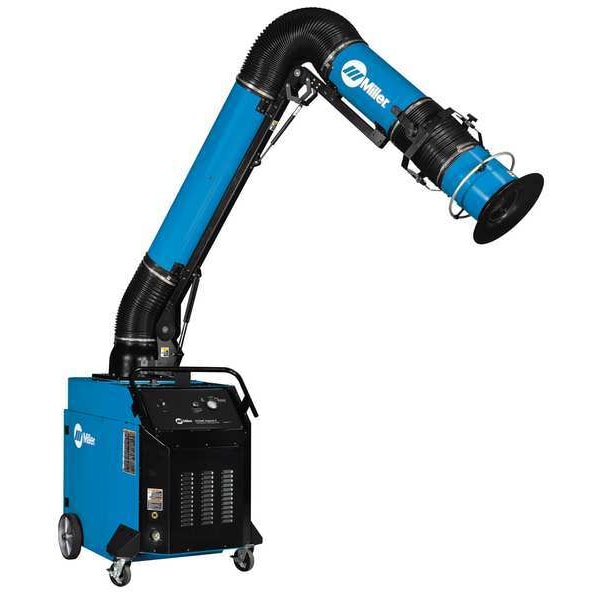

Fume Extractor, 900 CFM, 460V

  • Mfr # 951575

  • Zoro # G9826336


product price: $23,863.99
/ea
Additional $160.00 delivery surcharge applies per item.
See details

Key Features

Features
Large Rear Wheels, Lockable Swivel Casters
Filter Type
Self-Cleaning
Application
Maintenance and Repair Operations, Manufacturing and Fabrication Shops
Series
FILTAIR Capture 5
Includes
Filtek Xl Filter, Mobile Capture 5 Extractor 460 V, Primary Power Connector 2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
951575
Zoro #
G9826336
UPC #
715959632263
Country of Origin
United States

Dimensions

Height (In.)
43 in
Width (In.)
36 in
Depth (In.)
48 in
Housing Height
43 in
Housing Depth
48 in
Housing Width
48 in
Extraction Arm Length (Maximum)
12 ft

Details

Item
Portable Fume Extractor
Features
Large Rear Wheels, Lockable Swivel Casters
Filter Type
Self-Cleaning
Application
Maintenance and Repair Operations, Manufacturing and Fabrication Shops
Series
FILTAIR Capture 5
Includes
Filtek Xl Filter, Mobile Capture 5 Extractor 460 V, Primary Power Connector 2
Input Voltage
460/480V AC
Filter Media
Cellulose
Hz
60
Motor HP
3 hp
Standards
ANSI UL STD 507, cETLus, CSA STD C22.2 No. 113, UL Listed
MERV
15
Sound Level dBA
77
Input (Amps)
5.8 A
Air Flow (CFM)
900
Extraction Arm Adjustability
360 Degrees Rotation
Process
Fabrication Shops, Manufacturing, Repair Work, Training Centers, Welding
Filter MERV Rating
16
Maximum Air Flow
900 cfm
Filter Efficiency
95 %
Motor Horsepower (Maximum)
3 hp
Filter Area
452 pies cuad.
Housing Color
Black, Blue
Current
5.8 A
Power Source
Corded
Frequency
60 Hz
Phase
Three
Sound Level
77 dB
Extraction Arm Material
Aluminum, Steel
Includes Extraction Arm
Yes

Description

Portable Fume Extractor, Maximum Air Flow 900 cfm, Extraction Arm Length (Maximum) 12 ft, Filter Efficiency 95 Percent, Sound Level 77 dB, Filter Area 452 pies cuad., Filter MERV Rating 16, Input Voltage 460/480V AC, Motor Horsepower (Maximum) 3 hp, Series FILTAIR Capture 5, Current 5.8 A, Extraction Arm Adjustability 360 Degrees Rotation, Extraction Arm Material Aluminum, Steel, Features Large Rear Wheels, Lockable Swivel Casters, Filter Media Cellulose, Frequency 60 Hz
