  5. MIG Welder, Millermatic 141, Single-Phase, 110/115/120V AC, 30 to 140A DC, 20 %

This item is Discontinued.

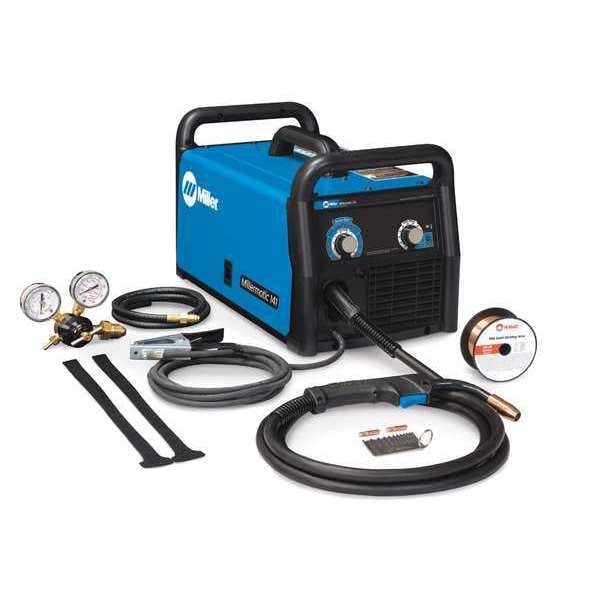

Miller Electric MIG Welder, Millermatic 141, Single-Phase, 110/115/120V AC, 30 to 140A DC, 20 % 907612

MIG Welder, Millermatic 141, Single-Phase, 110/115/120V AC, 30 to 140A DC, 20 % (Discontinued)

  • Mfr # 907612
  • Zoro # G8571071
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
907612
Zoro #
G8571071
UPC #
715959598521
Country of Origin
United States

Dimensions

Mild Steel - Material Thickness
24 ga to 3/16 in
Overall Height
12.5 in
Wire Size
0.023 in to 0.035 in, Flux 0.030 in to 0.035 in
Aluminum - Material Thickness
14 to 18 ga
Overall Width
20.5 in
Stainless Steel - Material Thickness
20 ga to 1/8 in
Overall Depth
11.25 in
For Minimum Material Thickness
24 ga (Mild Steel)
Minimum Wire Diameter
0.024 in (Solid Steel), 0.024 in (Stainless Steel), 0.03 in (Flux-Cored), 0.6 mm (Solid Steel), 0.6 mm (Stainless Steel), 0.8 mm (Flux-Cored)
For Maximum Material Thickness
3/16 in (Mild Steel)
Power Cord Length
6 1/2 ft
Maximum Wire Diameter
0.03 in (Solid), 0.035 in (Flux-Cored)
Max. Wire Diameter
0.03 in (Solid), 0.035 in (Flux-Cored)

Details

Item
MIG Welder
Series
Millermatic 141
Input Voltage
110/115/120V AC
Welded Material
Mild Steel, Stainless Steel, Aluminum
Phase
Single-Phase
Welding Processes
Flux-Cored Welding (FCAW), MIG Welding (GMAW)
Hz
60
Portability
Handheld Portable
Rated Output
90A @ 18.5V DC
Application
Customizing, DIY, Farm and Ranch, Home Hobbyist, Manufacturing, Metal Art, Racing, Restoring, Sculptures
Includes
10 ft. M-100 MIG Gun, 10 ft. Work Cable with Clamp, Argon and Ar/Co2 Mix Flow Gauge Regulator with Gas Hose, Hobart Spool of 0.030 in. Solid Wire, Quick Select Drive Rolls, Two Contact Tips
Duty Cycle
20 %
Features
Overload Protection
Standards
CSA Certified
Input Amps
20
Output Range
30 to 140A DC
For Material Type
Mild Steel, Stainless Steel
Power Cord Included
Yes
MIG Welding Output @ Duty Cycle
40 A @ 16 V, 100%, 90 A @ 18.5 V, 20%
Weight
51 lb
For Wire Type
Flux-Cored, Solid
Color
Blue
Max. Amperage Range (MIG)
Less than 150 A
Rated Output at Duty Cycle (MIG)
40 A @ 100%, 90 A @ 20%
Kit Includes
Contact Tips, Drive Rolls, Flow Gauge Regulator & Gas Hose, MIG Gun, Solid Wire, Work Cable with Clamp
Welding Mode
CV
Input Frequency
60 Hz
Amperage Range
30 to 140 A
MIG Welding Maximum Output Current
140 A
Plug Type
5-15P
Maximum Wire Feed Speed
360 in/min
Welder Kit Type
MIG Package
Minimum Wire Feed Speed
15 in/min
Input Voltage (Nominal)
120V
MIG Welding Minimum Output Current
30 A
Polarity
DC
Model
907612
Maximum Amperage Range (MIG)
Less than 150 A
Process
Flux-Cored Welding (FCAW), MIG Welding (GMAW)
brand-mfr model
MILLER ELECTRIC - 907612

Description

MIG Welder, Series Millermatic 141, Input Voltage 110/115/120V AC, Phase Single-Phase, Welding Mode CV, Polarity DC, Input Frequency 60 Hz, Welding Processes Flux-Cored Welding (FCAW), MIG Welding (GMAW), For Wire Type Flux-Cored, Solid, Maximum Wire Diameter 0.03 in (Solid), 0.035 in (Flux-Cored), Maximum Wire Feed Speed 360 in/min, Model 907612, MIG Welding Output @ Duty Cycle 40 A @ 16 V, 100 Percent, 90 A @ 18.5 V, 20 Percent
