  5. MIG Welder, Millermatic 252 w/Spool, 1, 240/480/575V AC, 30 to 300A DC, 60%/40%

This item is Discontinued.

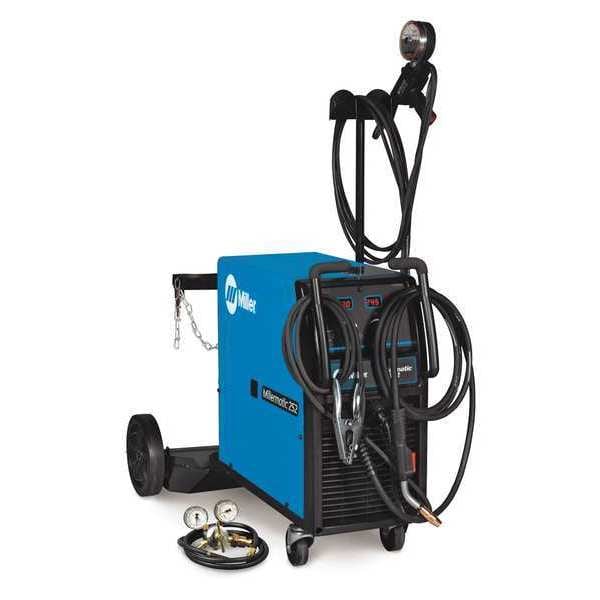

Miller Electric MIG Welder, Millermatic 252 w/Spool, 1, 240/480/575V AC, 30 to 300A DC, 60%/40% 951065

MIG Welder, Millermatic 252 w/Spool, 1, 240/480/575V AC, 30 to 300A DC, 60%/40% (Discontinued)

  • Mfr # 951065
  • Zoro # G9810787
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
951065
Zoro #
G9810787
UPC #
715959379984
Country of Origin
United States

Dimensions

Mild Steel - Material Thickness
22 ga to 1/2 in
Wire Size
0.023 in to 0.045 in, Flux 0.030 to 0.045 in
Overall Height
30 in
Overall Width
19 in
Aluminum - Material Thickness
14 ga to 3/8 in
Overall Depth
40 in
For Maximum Material Thickness
1/2 in (Mild Steel), 3/8 in (Aluminum)
Power Cord Length
10 ft
For Minimum Material Thickness
14 ga (Aluminum), 22 ga (Mild Steel)
Maximum Wire Diameter
0.045 in (Flux-Cored), 0.045 in (Solid), 1/16 in (Aluminum)
Max. Wire Diameter
1/16 in (Aluminum), 0.045 in (Solid), 0.045 in (Flux-Cored)
Minimum Wire Diameter
0.023 in (Solid Steel), 0.023 in (Stainless Steel), 0.03 in (Flux-Cored)

Details

Item
MIG Welder
Series
Millermatic 252
Input Voltage
240/480/575V AC
Welded Material
Mild Steel, Aluminum
Phase
1
Welding Processes
Flux Core, MIG
Hz
60
Portability
Wheeled Mounted
Application
Fabrication/Mro/Mfg/Farm
Rated Output
200A @ 28V DC/250A @ 28V DC
Duty Cycle
60%/40%
Input Amps
42/21/17
Output Range
30 to 300A DC
Standards
CSA certified
Includes
Millermatic(R) 252, Spoolmatic 30A #130831, 10 ft (3 m) power cord, 15 ft (4.6 m), 250 amp M-25 MIG gun for .030/.035 in wire, Two Argon mix regulator/flow gauges and one hose, 10 ft (3 m) work cable and clamp, Extra contact tips, EZ-Change(TM) Dual Cylinder Rack #300337, .030/.035 in reversible drive rolls
Input Voltage (Nominal)
240V, 480V, 575V
Weight
205 lb
Welding Mode
CV
Amperage Range
30 to 300 A
Max. Amperage Range (MIG)
150 A - 300 A
Polarity
DC
MIG Welding Minimum Output Current
30 A
Maximum Wire Feed Speed
700 in/min
Kit Includes
Contact Tips, Drive Rolls, Flow Gauge Regulator & Gas Hose, MIG Gun, Running Gear, Spool Gun, Work Cable with Clamp
Power Cord Included
Yes
Plug Type
6-50P
Minimum Wire Feed Speed
50 in/min
Rated Output at Duty Cycle (MIG)
200 A @ 60%, 250 A @ 40%
For Material Type
Aluminum, Mild Steel, Stainless Steel
Input Frequency
60 Hz
Welder Kit Type
MIG/Aluminum Package w/Running Gear
MIG Welding Output @ Duty Cycle
200 A @ 28 V, 60%, 250 A @ 28 V, 40%
MIG Welding Maximum Output Current
300 A
For Wire Type
Aluminum, Flux-Cored, Solid
Model
951065
Maximum Amperage Range (MIG)
150 A - 300 A
Process
Flux-Cored Welding (FCAW), MIG Welding (GMAW)
brand-mfr model
MILLER ELECTRIC - 951065

Description

MIG Welder, Series Millermatic 252, Input Voltage 230V AC, 460/480V AC, 575V AC, Phase Single-Phase, Welding Mode CV, Polarity DC, Input Frequency 60 Hz, Welding Processes Flux-Cored Welding (FCAW), MIG Welding (GMAW), For Wire Type Aluminum, Flux-Cored, Solid, Maximum Wire Diameter 0.045 in (Flux-Cored), 0.045 in (Solid), 1/16 in (Aluminum), Maximum Wire Feed Speed 700 in/min, Model 951065, MIG Welding Output @ Duty Cycle 200 A @ 28 V, 60 Percent, 250 A @ 28 V, 40 Percent
