  5. MIG Welder, Millermatic 350P Aluminum, Single; Three, 208/240/480V AC, 25 to 400A DC, 60 %

This item is Discontinued.

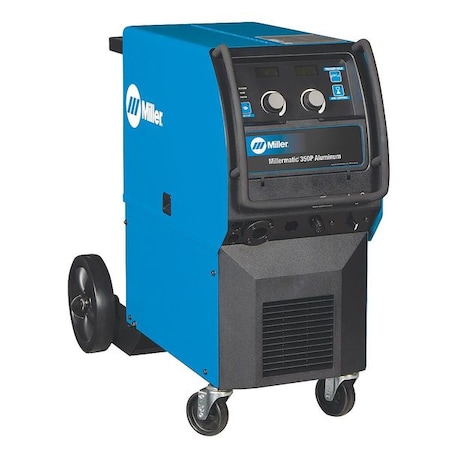

Miller Electric MIG Welder, Millermatic 350P Aluminum, Single; Three, 208/240/480V AC, 25 to 400A DC, 60 % 907474

MIG Welder, Millermatic 350P Aluminum, Single; Three, 208/240/480V AC, 25 to 400A DC, 60 % (Discontinued)

  • Mfr # 907474
  • Zoro # G2196839
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
907474
Zoro #
G2196839
UPC #
715959551373
Country of Origin
United States

Dimensions

Mild Steel - Material Thickness
24 ga to 1/2 in
Overall Height
34 in
Overall Width
19 in
Wire Size
0.035 in to 0.047 in
Overall Depth
41 in
Aluminum - Material Thickness
18 ga to 1/2 in
Power Cord Length
10 ft
Maximum Wire Diameter
3/64 in (Aluminum), 3/64 in (Solid)
For Minimum Material Thickness
24 ga (Mild Steel)
Minimum Wire Diameter
0.035 in (Aluminum), 0.9 mm (Aluminum)
Max. Wire Diameter
3/64 in (Aluminum), 3/64 in (Solid)
For Maximum Material Thickness
1/2 in (Mild Steel)

Details

Item
MIG Welder
Series
Millermatic 350P
Input Voltage
208/240/480V AC
Welded Material
Mild Steel, Aluminum
Phase
Single; Three
Welding Processes
Flux Core, MIG
Hz
60
Portability
Wheeled Mounted
Output Range
25 to 400A DC
Duty Cycle
60 %
Application
Boat, Ship and Yacht Building, Recreational Vehicles, Trucks and Trailer, Sign Manufacturers, Emergency Vehicles
Includes
Power source, 10-ft (3 m) industrial power cord (without plug), 10-ft (3 m) work cable with clamp, Factory-installed gas solenoid, Smith(R) Argon mix regulator/flow gauge with hose, Factory-installed, low-mounted running gear/cylinder rack, .035 and .047- in (0.9 and 1.2 mm) U-groove aluminum drive rolls
Rated Output
300A @ 32V DC
Input Amps
20
Standards
CSA certified
Features
Pulsed Mig
MIG Welding Output @ Duty Cycle
300 A @ 32 V DC, 60%
Input Voltage (Nominal)
208V, 240V, 480V
Welding Mode
CV
MIG Welding Maximum Output Current
400 A
For Material Type
Aluminum
Input Frequency
60 Hz
Minimum Wire Feed Speed
50 in/min
Kit Includes
Drive Rolls, Flow Gauge Regulator & Gas Hose, Running Gear, Work Cable with Clamp
Plug Type
Bare Leads
Power Cord Included
Yes
Rated Output at Duty Cycle (MIG)
300 A @ 60%
Max. Amperage Range (MIG)
Greater than 300 A
Maximum Wire Feed Speed
800 in/min
Amperage Range
25 to 400 A
Weight
181 lb
Welder Kit Type
MIG Package w/Running Gear
MIG Welding Minimum Output Current
25 A
For Wire Type
Aluminum, Solid
Polarity
AC/DC
Model
907474
Maximum Amperage Range (MIG)
Greater than 300 A
Process
Aluminum Welding
brand-mfr model
MILLER ELECTRIC - 907474

Description

MIG Welder, Series Millermatic 350P, Input Voltage 208V AC, 220/230/240V AC, 460/480V AC, Phase Single-/Three-Phase, Welding Mode CV, Polarity AC/DC, Input Frequency 60 Hz, Welding Processes Aluminum Welding, For Wire Type Aluminum, Solid, Maximum Wire Diameter 0.047 in (Aluminum), 0.047 in (Solid), Maximum Wire Feed Speed 800 in/min, Model 907474, MIG Welding Output @ Duty Cycle 300 A @ 32 V DC, 60 Percent
