  5. MIG Welder, Millermatic 350P Aluminum, Single; Three, 208/240/480V AC, 25 to 400A DC, 60 %

This item is Discontinued.

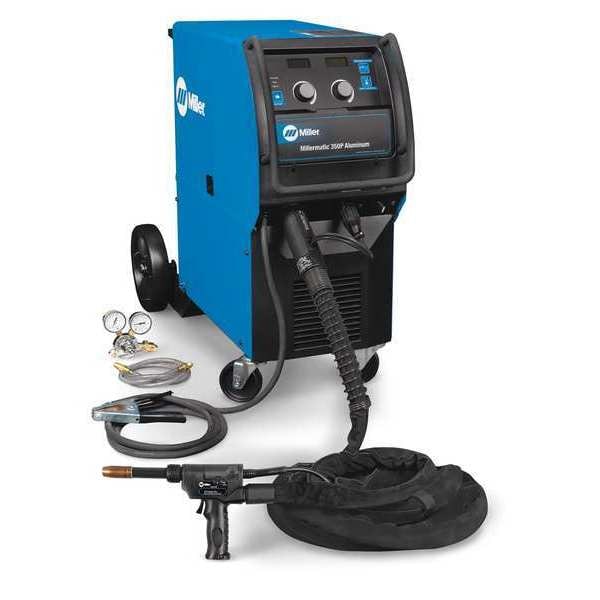

Miller Electric MIG Welder, Millermatic 350P Aluminum, Single; Three, 208/240/480V AC, 25 to 400A DC, 60 % 951453

MIG Welder, Millermatic 350P Aluminum, Single; Three, 208/240/480V AC, 25 to 400A DC, 60 % (Discontinued)

  • Mfr # 951453
  • Zoro # G2196805
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
951453
Zoro #
G2196805
UPC #
715959589710
Country of Origin
United States

Dimensions

Mild Steel - Material Thickness
27 ga to 1/2 in
Aluminum - Material Thickness
18 ga to 1/2 in
Overall Width
19 in
Overall Depth
41 in
Wire Size
0.035 in to 0.047 in
Overall Height
34 in
For Maximum Material Thickness
1/2 in (Aluminum), 3/8 in (Aluminum)
Minimum Wire Diameter
0.035 in (Aluminum)
For Minimum Material Thickness
1/20 in (Aluminum)
Maximum Wire Diameter
3/64 in (Aluminum), 3/64 in (Solid)
Power Cord Length
10 ft
Max. Wire Diameter
3/64 in (Aluminum), 3/64 in (Solid)

Details

Item
MIG Welder
Series
Millermatic 350P
Input Voltage
208/240/480V AC
Welded Material
Mild Steel, Aluminum
Phase
Single; Three
Welding Processes
Flux Core, MIG
Hz
60
Portability
Wheeled Mounted
Input Amps
20
Standards
CSA certified
Application
Boat, Ship and Yacht Building, Recreational Vehicles, Trucks and Trailer, Sign Manufacturers, Emergency Vehicles
Output Range
25 to 400A DC
Rated Output
300A @ 32V DC
Features
Pulsed Mig
Duty Cycle
60 %
Includes
Power source, 25-ft (7.6 m), 200 A gun for .030-.047 in (0.8-1.2 mm) aluminum (#300 783), 10-ft (3 m) industrial power cord (without plug), 10-ft (3 m) work cable with clamp, Factory-installed gas solenoid, Smith(R) Argon mix regulator/flow gauge with hose, Factory-installed, low-mounted running gear/cylinder rack, .035 and .047- in (0.9 and 1.2 mm) U-groove aluminum drive rolls
Max. Amperage Range (MIG)
Greater than 300 A
Welding Mode
CV
Polarity
AC/DC
Rated Output at Duty Cycle (MIG)
300 A @ 60%
Welder Kit Type
MIG/Aluminum Package w/Running Gear
MIG Welding Maximum Output Current
400 A
Amperage Range
25 to 400 A
Minimum Wire Feed Speed
50 in/min
Power Cord Included
Yes
Weight
181 lb
Maximum Wire Feed Speed
800 in/min
Kit Includes
Drive Rolls, Flow Gauge Regulator & Gas Hose, Push-Pull Gun, Running Gear, Work Cable with Clamp
Input Voltage (Nominal)
208V, 240V, 480V
MIG Welding Output @ Duty Cycle
300 A @ 32 V DC, 60%
For Material Type
Aluminum
Input Frequency
60 Hz
For Wire Type
Aluminum, Solid
MIG Welding Minimum Output Current
25 A
Plug Type
Bare Leads
Model
951453
Maximum Amperage Range (MIG)
Greater than 300 A
brand-mfr model
MILLER ELECTRIC - 951453
Process
Aluminum Welding

Description

MIG Welder, Series Millermatic 350P, Input Voltage 208V AC, 220/230/240V AC, 460/480V AC, Phase Single-/Three-Phase, Welding Mode CV, Polarity AC/DC, Input Frequency 60 Hz, Welding Processes Aluminum Welding, For Wire Type Aluminum, Solid, Maximum Wire Diameter 0.047 in (Aluminum), 0.047 in (Solid), Maximum Wire Feed Speed 800 in/min, Model 951453, MIG Welding Output @ Duty Cycle 300 A @ 32 V DC, 60 Percent
