  9. MIG Welder, Millermatic 350P, Single; Three, 208/240/480V AC, 25 to 400A DC, 60 %

This item is Discontinued.

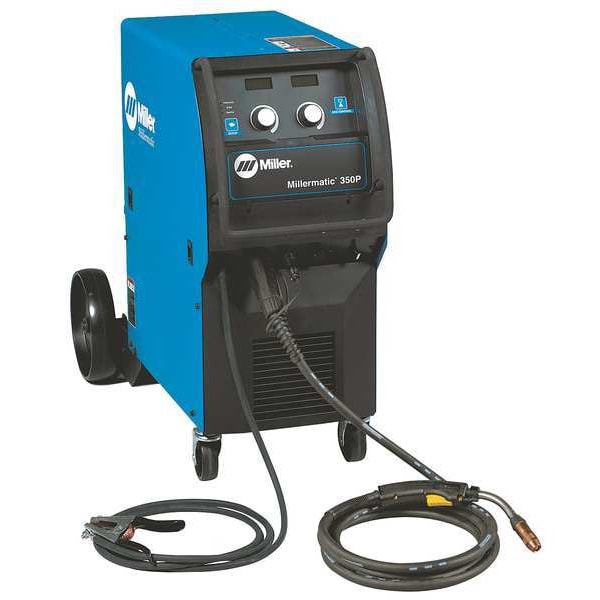

Miller Electric MIG Welder, Millermatic 350P, Single; Three, 208/240/480V AC, 25 to 400A DC, 60 % 907300

MIG Welder, Millermatic 350P, Single; Three, 208/240/480V AC, 25 to 400A DC, 60 % (Discontinued)

  • Mfr # 907300
  • Zoro # G0809627
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
907300
Zoro #
G0809627
UPC #
715959338059
Country of Origin
United States

Dimensions

Mild Steel - Material Thickness
22 ga to 1/2 in
Aluminum - Material Thickness
18 ga to 1/2 in
Overall Width
19 in
Overall Height
34 in
Overall Depth
41 in
Wire Size
0.023 in to 0.045 in, Aluminum 0.035 in to 0.047 in
For Minimum Material Thickness
24 ga (Mild Steel)
Maximum Wire Diameter
0.045 in (Solid), 0.052 in (Flux-Cored)
Power Cord Length
10 ft
For Maximum Material Thickness
1/2 in (Mild Steel)
Max. Wire Diameter
0.052 in (Flux-Cored), 0.045 in (Solid)
Minimum Wire Diameter
0.023 in (Solid Steel), 0.03 in (Flux-Cored), 0.03 in (Stainless Steel), 0.035 in (Aluminum), 0.035 in (Metal Core), 0.6 mm (Solid Steel), 0.8 mm (Flux-Cored), 0.8 mm (Stainless Steel), 0.9 mm (Aluminum), 0.9 mm (Metal Core)

Details

Item
MIG Welder
Series
Millermatic 350P
Input Voltage
208/240/480V AC
Welded Material
Mild Steel, Aluminum
Phase
Single; Three
Welding Processes
Flux Core, MIG, Pulsed MIG
Hz
60
Portability
Wheeled Mounted
Duty Cycle
60 %
Includes
Millermatic 350P power source, Bernard(R) Q300 15 ft (4.6 m) MIG gun with extra Centerfire(TM) contact tips, 10 ft (3 m) work cable with clamp, 10 ft (3 m) Industrial power cord (without plug) for single- or three-phase, Factory-installed gas solenoid, Argon mix regulator/flow meter, Factory-installed, low-mounted running gear/cylinder rack, .035/.045 in (0.9/1.2 mm) reversible V-groove drive rolls (order U-groove drive roll kits for aluminum welding), Extra Contact tips
Features
Pulsed Mig
Rated Output
300A @ 32V DC
Input Amps
34/30/15/12 or 69/61/30/24
Output Range
25 to 400A DC
Standards
CSA certified
Application
Fabrication/Mro/Mfg/Farm
MIG Welding Output @ Duty Cycle
300 A @ 32 V DC, 60%
Weight
181 lb
For Wire Type
Flux-Cored, Solid
Amperage Range
25 to 400 A
Kit Includes
Contact Tips, Drive Rolls, Flow Gauge Regulator & Gas Hose, MIG Gun, Running Gear, Work Cable with Clamp
For Material Type
Mild Steel, Stainless Steel
Rated Output at Duty Cycle (MIG)
300 A @ 60%
Power Cord Included
Yes
MIG Welding Maximum Output Current
400 A
Welding Mode
CV
Welder Kit Type
MIG Package w/Running Gear
Enhanced Process
Pulsed MIG (GMAW-P)
Minimum Wire Feed Speed
50 in/min
Maximum Wire Feed Speed
700 in/min
Input Voltage (Nominal)
208V, 240V, 480V
MIG Welding Minimum Output Current
25 A
Input Frequency
60 Hz
Polarity
DC
Plug Type
Bare Leads
Max. Amperage Range (MIG)
Greater than 300 A
Model
907300
Maximum Amperage Range (MIG)
Greater than 300 A
Process
Flux-Cored Welding (FCAW), MIG Welding (GMAW)
brand-mfr model
MILLER ELECTRIC - 907300

Description

MIG Welder, Series Millermatic 350P, Input Voltage 208V AC, 220/230/240V AC, 460/480V AC, Phase Single-/Three-Phase, Welding Mode CV, Polarity DC, Input Frequency 60 Hz, Welding Processes Flux-Cored Welding (FCAW), MIG Welding (GMAW), For Wire Type Flux-Cored, Solid, Maximum Wire Diameter 0.045 in (Solid), 0.052 in (Flux-Cored), Maximum Wire Feed Speed 700 in/min, Model 907300, MIG Welding Output @ Duty Cycle 300 A @ 32 V DC, 60 Percent
