This item is Discontinued.

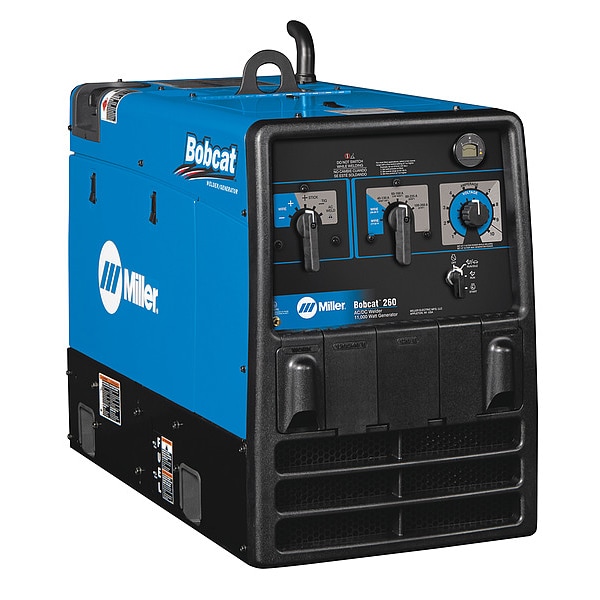

Miller Electric MILLER 260A Gas Engine-Driven Welder 907792

MILLER 260A Gas Engine-Driven Welder (Discontinued)

  • Mfr # 907792
  • Zoro # G8359313
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
907792
Zoro #
G8359313
UPC #
715959681483
Country of Origin
United States

Dimensions

Width
20 in
Height
32 3/4 in
Depth
40 1/2 in
Overall Height
32.75 in
Overall Width
20 in
Overall Depth
40.5 in

Details

Item
Engine-Driven Welder
Series
Bobcat(TM) 260
Polarity
AC/DC
Includes
GFCI Receptacle, Remote Start/Stop Fob
Rated Output CC/DC
260A @ 25V, 100% Duty Cycle
Start Type
Electric
Fuel Type
Gas
Engine Brand
Kohler
Phase
1
Peak Auxiliary Power
11,000 W
HP
23.5 hp
Rated Output CC/AC
225A @ 25 V, 100% Duty Cycle
Continuous Auxiliary Power
9,500 W
Amperage Range
40 to 260
Welding Mode
CC/CV
Circuit Breaker
Yes
Fuel Tank Capacity Range
10 gal - 20 gal
Generator Outlets
20 A 120V GFCI 5-20R (4), 50 A 120/240V 14-50R
TIG Welding Maximum Output Current
260 A
Generator Fuel Type
Gasoline
MIG Welding Output @ Duty Cycle
260 A @ 28 V, 100%, 275 A @ 25 V, 60%
Sound Level
72.5 dB
Generator Outlet Type
14-50R, 5-20R
Weight
501 lb
Stick Welding Maximum Output Current
260 A
Stick Welding Minimum Output Current
40 A
Welder Type
with GFCI Receptacles
For Material Type
Aluminum, Stainless Steel, Steel
Max. Amperage Range (Stick)
150 A - 300 A
Rated Output at Duty Cycle (Stick)
225 A @ 100%, 260 A @ 100%, 260 A @ 60%
TIG Welding Output @ Duty Cycle
225 A @ 25 V, 100% (AC), 260 A @ 25 V, 100% (DC), 260 A @ 25 V, 60% (AC)
Stick Welding Output @ Duty Cycle
225 A @ 25 V, 100% (AC), 260 A @ 25 V, 100% (DC), 260 A @ 25 V, 60% (AC)
Engine Model
Kohler CH730
Oil Capacity
1 1/2 qt
TIG Welding Minimum Output Current
40 A
Horsepower
24 hp
Color
Blue
Horsepower Range
15 hp - 30 hp
Fuel Tank Capacity
12 gal
Model
907792
Process
Air Carbon Arc Cutting and Gouging (CAC-A), Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
Welder Model Type
with GFCI Receptacles
brand-mfr model
MILLER ELECTRIC - 907792

Description

Engine-Driven Welder, Color Blue, For Material Type Aluminum, Stainless Steel, Steel, Generator Fuel Type Gasoline, MIG Welding Output @ Duty Cycle 260 A @ 28 V, 100 Percent, 275 A @ 25 V, 60 Percent, Phase Single-Phase, Polarity AC/DC, Start Type Electric, Stick Welding Maximum Output Current 260 A, Stick Welding Minimum Output Current 40 A, Stick Welding Output @ Duty Cycle 225 A @ 25 V, 100 Percent (AC), 260 A @ 25 V, 100 Percent (DC), 260 A @ 25 V, 60 Percent (AC)
