  5. Multiprocess Welder, Multimatic 215, Phase Single-Phase , 110/115/120V AC, 220/230/240V AC

This item is Discontinued.

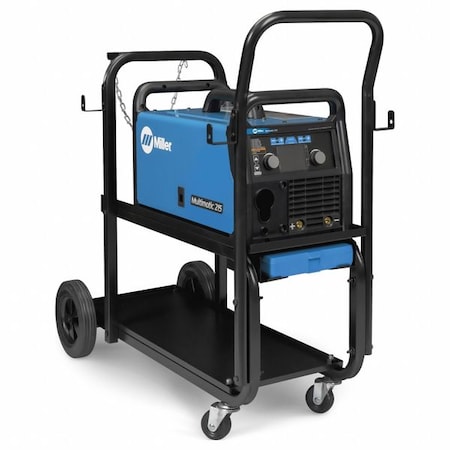

Miller Electric Multiprocess Welder, Multimatic 215, Phase Single-Phase , 110/115/120V AC, 220/230/240V AC 951000001

Multiprocess Welder, Multimatic 215, Phase Single-Phase , 110/115/120V AC, 220/230/240V AC (Discontinued)

  • Mfr # 951000001
  • Zoro # G909439953
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
951000001
Zoro #
G909439953
UPC #
715959702980
Country of Origin
United States

Dimensions

Maximum Wire Diameter
0.035 in (Flux-Cored), 0.035 in (Solid)
Overall Height
12.5 in
Minimum Wire Diameter
0.023 in (Solid), 0.03 in (Flux-Cored)
Overall Width
11.25 in
Overall Depth
20.5 in
For Maximum Material Thickness
3/8 in (Aluminum), 3/8 in (Steel)
For Minimum Material Thickness
18 ga (Aluminum), 24 ga (Steel)

Details

Item
Multiprocess Welder
Series
Multimatic 215
Phase
Single-Phase
Input Voltage
110/115/120V AC, 220/230/240V AC
Includes
(2) Contact Tips for 0.030 in (0.8 mm) Wire, 10 ft MDX-100 MIG Gun, 10 ft Work Cable with Clamp and 25 mm Dinse-Style Connector, 13 ft Cable Electrode Holder and 25 mm Dinse-Style Connector, Material Thickness Gauge, 6.5 ft Power Cord with MVP Plugs for 120 V and 240 V, Flow Gauge Regulator and Gas Hose for Argon or AR/CO2 Mix, Hobart Spool of 0.030 in (0.8 mm) Solid Wire, Hook-and-Loop Cord Wraps, Power Source, Quick Selectc Drive Roll for 0.024 in (0.6 mm) or 0.030/0.035 in (0.8/0.9 mm) Solid Wire and 0.030/0.035 in (0.8/0.9 mm) Flux Cored Wire
Amperage Range
20 to 230 A
Features
Angled Drive System with Quick Select Drive Roll, Color LCD with Auto-Set Elite, Fan-On-Demand, Inverter Technology, Multiprocess Capabilities
Welding Processes
MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
Application
Farm and Ranch, Manufacturing, Metal Art, Racing, Welding Education and Training
Standards
ISO 9001
MIG Welding Maximum Output Current
230 A
Plug Type
5-15P, 6-50P
Minimum Wire Feed Speed
60 in/min
Stick Welding Minimum Output Current
30 A
Open Circuit Voltage
58 V DC
MIG Welding Minimum Output Current
30 A
Model
951000001
TIG Welding Minimum Output Current
20 A
Weight
38 lb
For Material Type
Aluminum, Stainless Steel, Steel
Stick Welding Output @ Duty Cycle
190 A @ 27.6 V, 20% (240 V), 90 A @ 23.6 V, 40% (120 V)
Stick Welding Maximum Output Current
200 A
TIG Welding Maximum Output Current
210 A
Welding Mode
CC/CV
MIG Welding Output @ Duty Cycle
110 A @ 19.5 V, 60% (120 V), 150 A @ 21.5 V, 40% (240 V), 200 A @ 24 V, 20% (240 V)
Input Frequency
50/60 Hz
For Wire Type
Flux-Cored, Solid
Maximum Wire Feed Speed
600 in/min
Polarity
DC
TIG Welding Output @ Duty Cycle
140 A @ 15.6 V, 40% (120 V), 190 A @ 17.6 V, 20% (240 V)

Description

Multiprocess Welder, Series Multimatic 215, Input Voltage 110/115/120V AC, 220/230/240V AC, Phase Single-Phase, Welding Mode CC/CV, Polarity DC, Input Frequency 50/60 Hz, Welding Processes MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW), Stick Welding Maximum Output Current 200 A, TIG Welding Maximum Output Current 210 A, MIG Welding Maximum Output Current 230 A, For Wire Type Flux-Cored, Solid, Maximum Wire Diameter 0.035 in (Flux-Cored), 0.035 in (Solid)
