  5. Multiprocess Welder, Piperworx 400, Phase 3 , 220/230/240/460/480 , 400A @ 44V DC

This item is Discontinued.

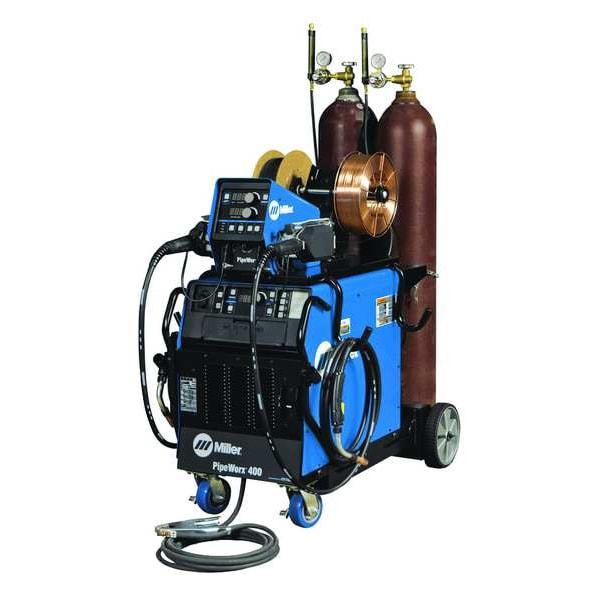

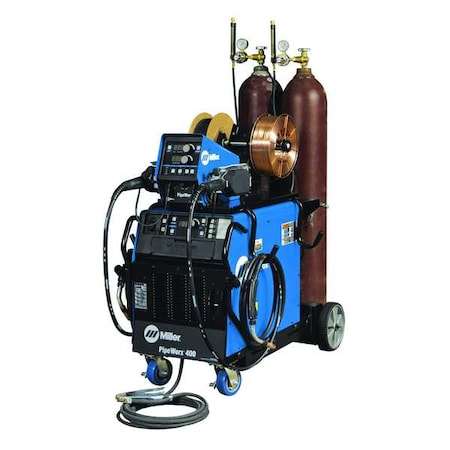

Miller Electric Multiprocess Welder, Piperworx 400, Phase 3 , 220/230/240/460/480 , 400A @ 44V DC 951381

Multiprocess Welder, Piperworx 400, Phase 3 , 220/230/240/460/480 , 400A @ 44V DC (Discontinued)

  • Mfr # 951381
  • Zoro # G4323140
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
951381
Zoro #
G4323140
UPC #
715959562454
Country of Origin
United States

Dimensions

Overall Depth (In.)
31 3/4 in
Overall Width (In.)
19 1/2 in
Overall Height (In.)
28 1/2 in
Maximum Wire Diameter
0.062 in (Flux-Cored)
Minimum Wire Diameter
0.035 in (Flux-Cored)
Overall Width
19.5 in
Max. Wire Diameter
1/16 in (Flux-Cored)
Overall Depth
31.75 in
Overall Height
28.5 in

Details

Item
Multiprocess Welder
Series
PipeWorx 400
Phase
Three-Phase
Input Voltage
220/230/240V AC, 460/480V AC
Function
DC TIG, Flux Cored, MIG, Pulsed TIG, RMD, Stick
Rated Output
400A @ 44V DC
Amps AC
40-400
Input (Amps)
24.3/33.4
Features
Quick Process Changeover
Hz
50/60
OCV
90
Application
Construction, Fabrication, Mechanical Contracting, Pipe Welding, Pressure Vessel, Shipbuilding
Includes
(2) 15 ft PipeWorx 300A MIG Guns (195400), Cable Kit with 25 ft Work Sense Lead (300367), PipeWorx Dual Feeder with Drive Rolls (300366), Running Gear with Dual Cylinder Rack (300368)
Welding Processes
Air Carbon Arc Cutting and Gouging (CAC-A), Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
Amperage Range
10 A to 400 A
Welder Kit Type
Power Source w/Running Gear
Minimum Wire Feed Speed
50 in/min
Power Cord Included
No
Kit Includes
External Wire Feeder, Running Gear
Maximum Wire Feed Speed
780 in/min
Rated Output at Duty Cycle (Stick)
400 A @ 100%
MIG Welding Maximum Output Current
400 A
Weight
225 lb
Max. Input Current
43.9 A @ 230V AC (Three-Phase)
TIG Welding Output @ Duty Cycle
350 A @ 24 V, 100%
For Material Type
Metal, Stainless Steel, Steel
TIG Welding Maximum Output Current
350 A
Input Voltage (Nominal)
240V
Enhanced Process
Pulsed MIG (GMAW-P), RMD
Input Frequency
50/60 Hz
Polarity
DC
Stick Welding Maximum Output Current
400 A
Max. Amperage Range (TIG)
Greater than 300 A
Welding Mode
CC/CV
Color
Blue
Stick Welding Minimum Output Current
40 A
Plug Type
Bare Leads
TIG Welding Minimum Output Current
10 A
Open Circuit Voltage
90 V DC
Max. Amperage Range (Stick)
Greater than 300 A
Stick Welding Output @ Duty Cycle
400 A @ 36 V, 100%
Remote Connection Type
14-Pin (Miller)
Max. Amperage Range (MIG)
Greater than 300 A
TIG Arc Start Feature
High Frequency Start, Lift Arc Start
MIG Welding Output @ Duty Cycle
400 A @ 36 V, 100%
For Wire Type
Flux-Cored, Solid
Model
951381
Process
Air Carbon Arc Cutting and Gouging (CAC-A), Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
brand-mfr model
MILLER ELECTRIC - 951381

Description

Multiprocess Welder, Series PipeWorx 400, Input Voltage 220/230/240V AC, 460/480V AC, Phase Three-Phase, Welding Mode CC/CV, Polarity DC, Input Frequency 50/60 Hz, Welding Processes Air Carbon Arc Cutting and Gouging (CAC-A), Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW), Stick Welding Maximum Output Current 400 A, TIG Welding Maximum Output Current 350 A, MIG Welding Maximum Output Current 400 A, For Wire Type Flux-Cored, Solid
