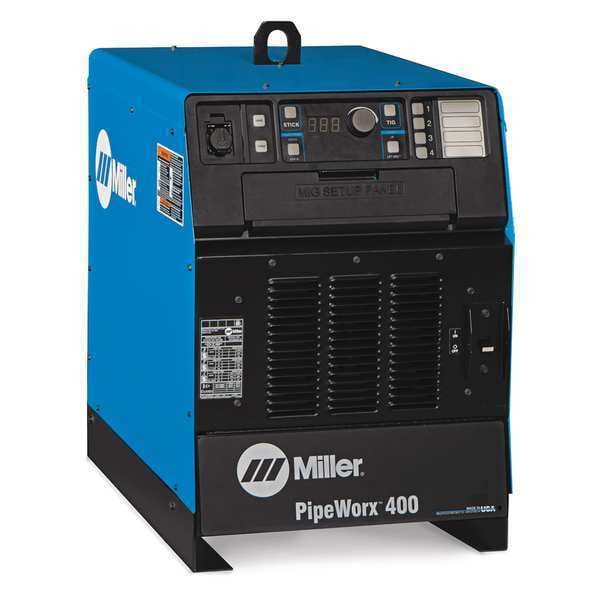

Miller Electric Multiprocess Welder, PipeWorx 400 Series, 220/230/240V AC, 460/480V AC, 400A at 44V Rated Output 907382 - main

Multiprocess Welder, PipeWorx 400 Series, 220/230/240V AC, 460/480V AC, 400A at 44V Rated Output

  • Mfr # 907382

  • Zoro # G9862185

product price:  $15,525.99
/ea
Additional $130.00 delivery surcharge applies per item.
See details

Key Features

Welding Processes
Air Carbon Arc Cutting and Gouging (CAC-A), Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG DC (GTAW-DC)
Input Voltage
220/230/240/460/480V AC
Rated Output
400A @ 44V
Series
PipeWorx 400
Overall Width (In.)
19 1/2 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
907382
Zoro #
G9862185
UPC #
715959379878
Country of Origin
United States

Dimensions

Overall Width (In.)
19 1/2 in
Overall Height (In.)
28 in
Overall Depth (In.)
31 3/4 in
Overall Width
19.5 in
Overall Depth
31.75 in
Overall Height
28 in
Minimum Wire Diameter
0.035 in (Flux-Cored)
Maximum Wire Diameter
0.062 in
Wire Diameter Flux-Cored - Minimum
0.035 in

Details

Item
Multiprocess Welder
Welding Processes
Air Carbon Arc Cutting and Gouging (CAC-A), Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG DC (GTAW-DC)
Input Voltage
220/230/240/460/480V AC
Rated Output
400A @ 44V
Series
PipeWorx 400
Duty Cycle
100%
Function
FCAW, MIG, MIG Pulse, MIG RMD, Stick, TIG
Phase
Three
OCV
90
Features
Quick Process Changeover
Hz
60
Application
FCAW, MIG, MIG Pulse, MIG RMD, Stick, TIG
Input (Amps)
54/31
Includes
Cable Hangers, One blank memory card (#301080), Short gas hose for connecting output gas connection on power source to TIG block
Polarity
DC
Standards
CSA
TIG Welding Maximum Output Current
350 A
Stick Welding Maximum Output Current
400 A
TIG Welding Output @ Duty Cycle
350 A @ 24 V, 100%
MIG Welding Maximum Output Current
400 A
Weight
225 lb
Open Circuit Voltage
90 V DC
MIG Welding Output @ Duty Cycle
400 A @ 34 V, 100%
Maximum Wire Feed Speed
780 in/min
Plug Type
Bare Leads
Minimum Wire Feed Speed
50 in/min
Welding Mode
CC/CV
Input Frequency
50/60 Hz
For Wire Type
Flux-Cored
Max. Input Current
43.9 A @ 230V AC (Three-Phase)
For Material Type
Metal, Stainless Steel, Steel
Power Cord Included
No
Stick Welding Output @ Duty Cycle
400 A @ 36 V, 100%
Model
907382
Rated Output @ Duty Cycle (TIG)
350 A @ 24 V, 100%
Rated Output @ Duty Cycle (Stick)
400 A @ 36 V, 100%
Amperage MIG - Maximum
400 A
Welding Power Source Type
CC/CV
Amperage Stick - Maximum
400 A
Maximum Input Current
43.9 A @ 230V AC (Three-Phase)
Process
Air Carbon Arc Cutting and Gouging (CAC-A), Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), DC TIG Welding (GTAW-DC)
Rated Output @ Duty Cycle (MIG)
400 A @ 34 V, 100%
Amperage TIG - Maximum
350 A

Description

Multiprocess Welder, Series PipeWorx 400, Input Voltage 220/230/240V AC, 460/480V AC, Phase Three-Phase, Welding Mode CC/CV, Polarity DC, Input Frequency 50/60 Hz, Welding Processes Air Carbon Arc Cutting and Gouging (CAC-A), Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG DC (GTAW-DC), Stick Welding Maximum Output Current 400 A, TIG Welding Maximum Output Current 350 A, MIG Welding Maximum Output Current 400 A, For Wire Type Flux-Cored, Maximum Wire Diameter 0.062 in
