Shop LINCOLN ELECTRIC

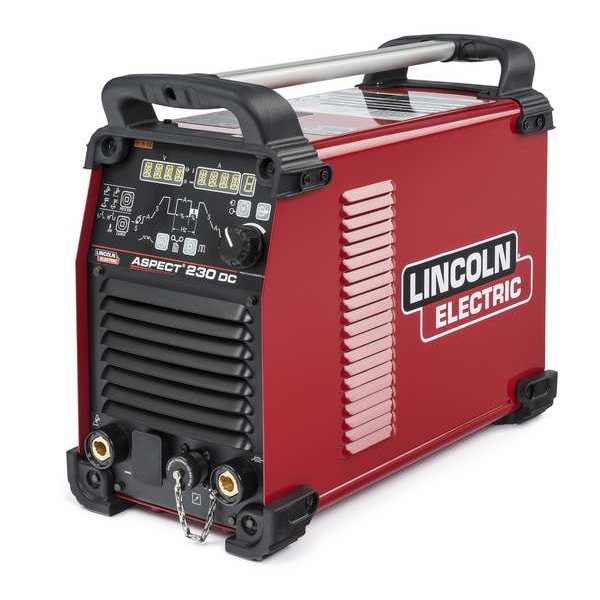

TIG Welder, Aspect 230 DC Series, 120 V, 208 V, 230 V, 460 V

  • Mfr # K4346-1

  • Zoro # G902590576

product price:
$
6,474.99
/ea
Free Shipping & Returns

Key Features

Welding Processes
Stick Welding (SMAW), TIG Welding (GTAW)
Input Voltage
120/208/230/460V AC
Series
Aspect 230 DC
Features
Exceptional Arc Response and Stability, Highly Customizable TIG Machine, Portable, Lightweight, and Easy to Transport
Power Cord Length
10 ft
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
K4346-1
Zoro #
G902590576
UPC #
015082631868
Country of Origin
Poland
Item
TIG Welder
Welding Processes
Stick Welding (SMAW), TIG Welding (GTAW)
Input Voltage
120/208/230/460V AC
Series
Aspect 230 DC
Features
Exceptional Arc Response and Stability, Highly Customizable TIG Machine, Portable, Lightweight, and Easy to Transport
Plug Type
Bare Leads
Remote Connection Type
6-Pin (Lincoln)
Polarity
DC
Phase
Single/Three
Stick Welding Output @ Duty Cycle
110 A @ 14.4 V, 100% (Single-Phase, 120 V), 125 A @ 15 V, 60% (Single-Phase, 120 V), 150 A @ 16 V, 35% (Single-Phase, 120 V), 160 A @ 16.4 V, 100% (Single/Three-Phase, 208-480 V), 190 A @ 17.6 V, 60% (Single/Three-Phase, 208-480 V), 230 A @ 19.2 V, 35% (Single/Three-Phase, 208-480 V)
Amperage Range
2 to 230 A
Includes
Power Source Only
Power Cord Included
Yes
TIG Welding Minimum Output Current
2 A
Color
Red
TIG Welding Maximum Output Current
150 A
Remote Control
Remote Control Not Included
TIG Welding Output @ Duty Cycle
110 A @ 14.4 V, 100% (Single-Phase, 120 V), 125 A @ 15 V, 60% (Single-Phase, 120 V), 150 A @ 16 V, 35% (Single-Phase, 120 V), 160 A @ 16.4 V, 100% (Single/Three-Phase, 208-480 V), 190 A @ 17.6 V, 60% (Single/Three-Phase, 208-480 V), 230 A @ 19.2 V, 35% (Single/Three-Phase, 208-480 V)
Application
Automotive, Brewery, Distillery, General Fabrication, Maintenance and Repair, Marine Applications, Marine Fabrication and Repair, Pharmaceutical Equipment, Repair Welding, Shipbuilding
Input Frequency
50/60 Hz
Weight
46.5 lb
Model
K4346-1
Stick Welding Maximum Output Current
230 A
TIG Arc Start Feature
High Frequency Start, Lift Arc Start
Max. Input Current
34 A @ 120VAC
Pulse Frequency
0.1 to 2000 pulses/second
Welding Mode
CC
Stick Welding Minimum Output Current
2 A
Rated Output @ Duty Cycle (Stick)
110 A @ 14.4 V, 100% (Single-Phase, 120 V), 125 A @ 15 V, 60% (Single-Phase, 120 V), 150 A @ 16 V, 35% (Single-Phase, 120 V), 160 A @ 16.4 V, 100% (Single/Three-Phase, 208-480 V), 190 A @ 17.6 V, 60% (Single/Three-Phase, 208-480 V), 230 A @ 19.2 V, 35% (Single/Three-Phase, 208-480 V)
Amperage TIG - Maximum
150 A
Amperage TIG - Minimum
2 A
Welding Power Source Type
CC
Amperage Stick - Minimum
2 A
Process
Stick Welding (SMAW), TIG Welding (GTAW)
Rated Output @ Duty Cycle (TIG)
110 A @ 14.4 V, 100% (Single-Phase, 120 V), 125 A @ 15 V, 60% (Single-Phase, 120 V), 150 A @ 16 V, 35% (Single-Phase, 120 V), 160 A @ 16.4 V, 100% (Single/Three-Phase, 208-480 V), 190 A @ 17.6 V, 60% (Single/Three-Phase, 208-480 V), 230 A @ 19.2 V, 35% (Single/Three-Phase, 208-480 V)
Amperage Stick - Maximum
230 A
Maximum Input Current
34 A @ 120VAC

Description

TIG Welder, Input Frequency 50/60 Hz, Max. Input Current 34 A @ 120VAC, Phase Single/Three, Polarity DC, Series Aspect 230 DC, Stick Welding Maximum Output Current 230 A, Stick Welding Minimum Output Current 2 A
