Shop LINCOLN ELECTRIC

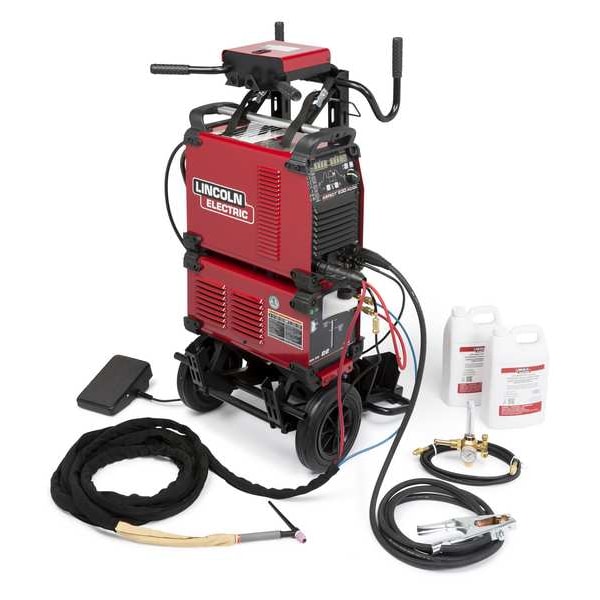

TIG Welder, Aspect 230 AC/DC Series, 120 V, 208 V, 230 V, 460 V

  • Mfr # K4342-1
  • Zoro # G602590562
product price:
$
14,295.99
/ea
Additional $150.00 delivery surcharge applies per item.
See details

Key Features

Welding Processes
Stick Welding (SMAW), TIG Welding (GTAW)
Input Voltage
120/208/230/460V AC
Series
Aspect 230 AC/DC
Includes
Cool Arc(R) 22, Foot Pedal, Gas Lens Kit for PTW-20, Gas Regulator, Ground Clamp w/15 ft (4.6) Cable, Low Conductivity Coolant, Torch Twist Mate(TM) Connector, Two Wheeled Cart, Water Cooled TIG Torch PTW-20 250A, 25 ft (7.6 m), Water Cooled TIG Torch Quick Connect Fitting (Qty. 2), Zippered Cable Cover, 25 ft (7.6 m)
Input Frequency
50/60 Hz
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
K4342-1
Zoro #
G602590562
UPC #
015082631851
Country of Origin
United States

Dimensions

Overall Width
22 in
Power Cord Length
10 ft
Overall Height
46.5 in
Overall Depth
24 in
Fits Chest Size
Exceptional Arc Response and Stability, Highly Customizable TIG Machine, Portable, Lightweight, and Easy to Transport

Details

Item
TIG Welder
Welding Processes
Stick Welding (SMAW), TIG Welding (GTAW)
Input Voltage
120/208/230/460V AC
Series
Aspect 230 AC/DC
Includes
Cool Arc(R) 22, Foot Pedal, Gas Lens Kit for PTW-20, Gas Regulator, Ground Clamp w/15 ft (4.6) Cable, Low Conductivity Coolant, Torch Twist Mate(TM) Connector, Two Wheeled Cart, Water Cooled TIG Torch PTW-20 250A, 25 ft (7.6 m), Water Cooled TIG Torch Quick Connect Fitting (Qty. 2), Zippered Cable Cover, 25 ft (7.6 m)
Input Frequency
50/60 Hz
Features
Exceptional Arc Response and Stability, Highly Customizable TIG Machine, Portable, Lightweight, and Easy to Transport
Pulse Frequency
0.1 to 2000 pulses/second
TIG Welding Maximum Output Current
150 A
Remote Connection Type
6-Pin (Lincoln)
TIG Arc Start Feature
High Frequency Start, Lift Arc Start
Model
K4342-1
Plug Type
Bare Leads
Stick Welding Minimum Output Current
2 A
Stick Welding Output @ Duty Cycle
110 A @ 14.4 V, 100% (Single-Phase, 120 V), 125 A @ 15 V, 60% (Single-Phase, 120 V), 150 A @ 16 V, 35% (Single-Phase, 120 V), 160 A @ 16.4 V, 100% (Single/Three-Phase, 208-480 V), 190 A @ 17.6 V, 60% (Single/Three-Phase, 208-480 V), 230 A @ 19.2 V, 35% (Single/Three-Phase, 208-480 V)
Application
Automotive, Brewery, Construction, Distillery, General Fabrication, Maintenance and Repair, Marine Applications, Marine Fabrication and Repair, Oil and Gas, Pharmaceutical Equipment, Power Generation, Power Plants, Repair Welding, Shipbuilding
Phase
Single/Three
Power Cord Included
Yes
Amperage Range
2 to 230 A
Remote Control
Foot Control Included
Color
Red
TIG Welding Output @ Duty Cycle
110 A @ 14.4 V, 100% (Single-Phase, 120 V), 125 A @ 15 V, 60% (Single-Phase, 120 V), 150 A @ 16 V, 35% (Single-Phase, 120 V), 160 A @ 16.4 V, 100% (Single/Three-Phase, 208-480 V), 190 A @ 17.6 V, 60% (Single/Three-Phase, 208-480 V), 230 A @ 19.2 V, 35% (Single/Three-Phase, 208-480 V)
TIG Welding Minimum Output Current
2 A
Stick Welding Maximum Output Current
230 A
Max. Input Current
34 A @ 120VAC
Polarity
AC/DC
Weight
212 lb
Welding Mode
CC
Amperage TIG - Maximum
150 A
Process
Stick Welding (SMAW), TIG Welding (GTAW)
Amperage Stick - Maximum
230 A
Amperage TIG - Minimum
2 A
Amperage Stick - Minimum
2 A
Rated Output @ Duty Cycle (TIG)
110 A @ 14.4 V, 100% (Single-Phase, 120 V), 125 A @ 15 V, 60% (Single-Phase, 120 V), 150 A @ 16 V, 35% (Single-Phase, 120 V), 160 A @ 16.4 V, 100% (Single/Three-Phase, 208-480 V), 190 A @ 17.6 V, 60% (Single/Three-Phase, 208-480 V), 230 A @ 19.2 V, 35% (Single/Three-Phase, 208-480 V)
Welding Power Source Type
CC
Rated Output @ Duty Cycle (Stick)
110 A @ 14.4 V, 100% (Single-Phase, 120 V), 125 A @ 15 V, 60% (Single-Phase, 120 V), 150 A @ 16 V, 35% (Single-Phase, 120 V), 160 A @ 16.4 V, 100% (Single/Three-Phase, 208-480 V), 190 A @ 17.6 V, 60% (Single/Three-Phase, 208-480 V), 230 A @ 19.2 V, 35% (Single/Three-Phase, 208-480 V)
Maximum Input Current
34 A @ 120VAC

Description

TIG Welder, Input Frequency 50/60 Hz, Max. Input Current 34 A @ 120VAC, Phase Single/Three, Polarity AC/DC, Series Aspect 230 AC/DC, Stick Welding Maximum Output Current 230 A, Stick Welding Minimum Output Current 2 A

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
