  9. Multiprocess Welder, XMT 350 CC/CV, Phase Single-/Three-Phase, 350A at 34V DC, 60%

This item is Discontinued.

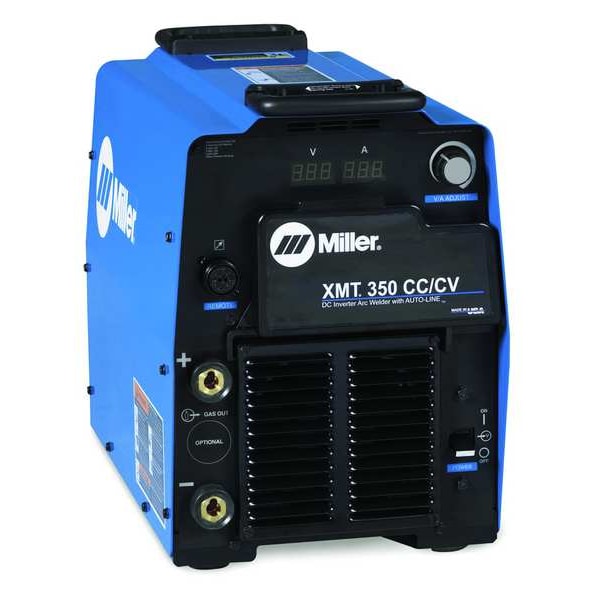

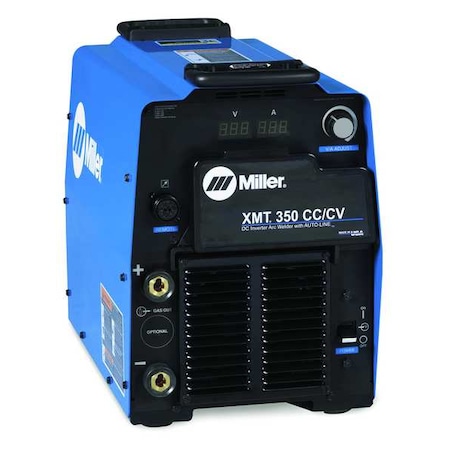

Miller Electric Multiprocess Welder, XMT 350 CC/CV, Phase Single-/Three-Phase, 350A at 34V DC, 60% 907161

Multiprocess Welder, XMT 350 CC/CV, Phase Single-/Three-Phase, 350A at 34V DC, 60% (Discontinued)

  • Mfr # 907161
  • Zoro # G5422588
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
907161
Zoro #
G5422588
UPC #
715959307475
Country of Origin
United States

Dimensions

Overall Height (In.)
17 in
Overall Depth (In.)
24 in
Overall Width (In.)
12 1/2 in
Maximum Wire Diameter
0.40 in (Aluminum), 0.45 in (Nickel), 0.45 in (Steel)
Overall Depth
26 in
Minimum Wire Diameter
0.35 (Aluminum), 0.35 (Nickel), 0.35 (Steel)
Overall Width
20 in
Overall Height
16 in

Details

Item
Multiprocess Welder
Series
XMT 350 CC/CV
Phase
Single-/Three-Phase
Input Voltage
208V AC, 220/230/240V AC, 380/400V AC, 440/460/480V AC, 575V AC
Function
MIG, Air Carbon Arc Cutting and Gouging, Flux-Cored, Stick, TIG
Rated Output
350A @ 34V DC,60%
Includes
Power source only
Features
Output Connector Choices, Power Management Technology, Standard 14-Pin Receptacle, Welder Friendly Control Panel
Application
Aerospace, Construction, Heavy Equipment Manufacturing, High Purity Processing, Infrastructure, Manufacturing, Railcar, Shipbuilding
Input (Amps)
40.4
OCV
75
Hz
50/60
Standards
CSA
Welding Processes
Air Carbon Arc Cutting and Gouging (CAC-A), Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
Amperage Range
5 A to 425 A
For Wire Type
Aluminum, Flux-Cored, Solid
Polarity
DC
Stick Welding Minimum Output Current
5 A
For Material Type
Aluminum, Metal, Stainless Steel, Steel
TIG Welding Maximum Output Current
425 A
MIG Welding Output @ Duty Cycle
300 A @ 32 VDC, 60%, 350 A @ 34 VDC, 60%
Stick Welding Output @ Duty Cycle
300 A @ 32 V, 60%, 350 A @ 34 V, 60%
Max. Input Current
40.4 A @ 208V AC (Three-Phase), 60.8 A @ 208V AC (Single-Phase)
Weight
80 lb
Welding Mode
CC/CV
TIG Welding Minimum Output Current
5 A
MIG Welding Minimum Output Current
5 A
MIG Welding Maximum Output Current
425 A
Stick Welding Maximum Output Current
425 A
TIG Welding Output @ Duty Cycle
300 A @ 32 V, 60% (1-Phase), 350 A @ 34 V, 60% (3-Phase)
Plug Type
Bare Leads
TIG Arc Start Feature
Lift Arc Start
Color
Blue
Remote Connection Type
14-Pin (Miller)
Open Circuit Voltage
75 V DC
Input Frequency
50/60 Hz
Model
907161

Description

Multiprocess Welder, Series XMT 350 CC/CV, Input Voltage 208V AC, 220/230/240V AC, 380/400V AC, 440/460/480V AC, 575V AC, Phase Single-/Three-Phase, Welding Mode CC/CV, Polarity DC, Input Frequency 50/60 Hz, Welding Processes Air Carbon Arc Cutting and Gouging (CAC-A), Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW), Stick Welding Maximum Output Current 425 A, TIG Welding Maximum Output Current 425 A, MIG Welding Maximum Output Current 425 A
