This item is Discontinued.

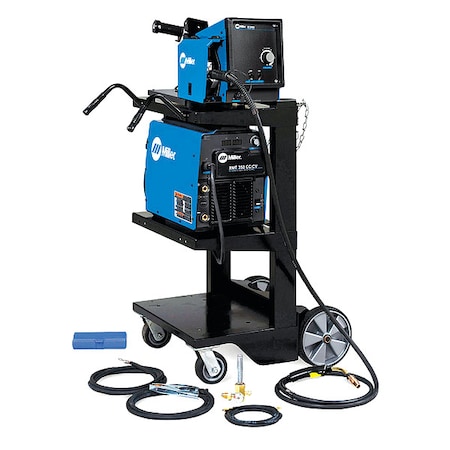

Miller Electric Multiprocess Welder, XMT 350 CC/CV, Phase Single-/Three-Phase , Gouging, MIG, Stick, TIG 951786

Multiprocess Welder, XMT 350 CC/CV, Phase Single-/Three-Phase , Gouging, MIG, Stick, TIG (Discontinued)

  • Mfr # 951786
  • Zoro # G0195014
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
951786
Zoro #
G0195014
UPC #
715959670142
Country of Origin
United States

Dimensions

Aluminum - Material Thickness
14 ga to 3/8 in
Stainless Steel - Material Thickness
22 ga to 5/8 in
Mild Steel - Material Thickness
22 ga to 5/8 in
Wire Size
0.035 in to 0.045 in
Overall Width (In.)
12 1/2 in
Overall Depth (In.)
24 in
Overall Height (In.)
17 in
For Minimum Material Thickness
1/32 in (Mild Steel), 1/32 in (Stainless Steel), 5/64 in (Aluminum)
Overall Depth
24 in
Minimum Wire Diameter
0.035 in (Flux-Cored)
Overall Width
12.5 in
Maximum Wire Diameter
0.045 in
Overall Height
17 in
For Maximum Material Thickness
3/8 in (Aluminum), 5/8 in (Mild Steel, 5/8 in (Stainless Steel)

Details

Item
Multiprocess Welder
Series
XMT 350 CC/CV
Phase
Single-/Three-Phase
Input Voltage
208V AC, 220/230/240V AC, 380/400V AC, 440/460/480V AC, 575V AC
Function
Gouging, MIG, Stick, TIG
Rated Output
350A @ 34V DC, 60%
Includes
0.035-0.045 in Reversible Dual V Drive Rolls, 10 ft 2/0 Work Cable with Clamp, 20 Series Wire Feeder, Bernard BTB 300 MIG Gun, MIGRunner Cart, Regulator/Flowmeter with 3 ft Gas Hose
Welding Processes
Air Carbon Arc Cutting and Gouging (CAC-A), Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
Amperage Range
5 A to 425 A
OCV
75
Duty Cycle
60%
Standards
CSA
Hz
60
Output Range
10 to 38V, 15 to 425A
Input (Amps)
60.8/54.6/29.7/24.5/19.9 or 40.4/36.1/20.6/17.8/14.1
Application
Aerospace, Construction, Heavy Equipment Manufacturing, High Purity Processing, Infrastructure, Manufacturing, Railcar, Shipbuilding
Features
Adaptive Hot Start(TM), Auto Remote Sense(TM), Auto-Line(TM) Power Management Technology, Dual Digital Meters, Fan-On-Demand(TM), Infinite Arc Control, Lift-Arc(TM), Output Connector Choices, Primary Voltage Display, Process Selector Switch, Standard 14-Pin Receptacle, Wind Tunnel Technology(TM)
TIG Arc Start Feature
Lift Arc Start
Stick Welding Output @ Duty Cycle
300 A @ 32 V, 60%, 350 A @ 34 V, 60%
TIG Welding Output @ Duty Cycle
300 A @ 32 V, 60% (1-Phase), 350 A @ 34 V, 60% (3-Phase)
Input Frequency
50/60 Hz
Stick Welding Minimum Output Current
5 A
Welding Mode
CC/CV
Plug Type
Bare Leads
MIG Welding Minimum Output Current
5 A
MIG Welding Output @ Duty Cycle
350 A @ 34 V, 60%
For Wire Type
Aluminum, Flux-Cored, Solid
Remote Connection Type
14-Pin (Miller)
Color
Blue
Max. Input Current
60.8/54.6/29.7/24.5/19.9 or 40.4/36.1/20.6/17.8/14.1 A
TIG Welding Minimum Output Current
5 A
MIG Welding Maximum Output Current
425 A
For Material Type
Aluminum, Metal, Stainless Steel, Steel
Weight
80 lb
Polarity
DC
TIG Welding Maximum Output Current
425 A
Stick Welding Maximum Output Current
425 A
Open Circuit Voltage
75 V DC
Model
951786

Description

Multiprocess Welder, Series XMT 350 CC/CV, Input Voltage 208V AC, 220/230/240V AC, 380/400V AC, 440/460/480V AC, 575V AC, Phase Single-/Three-Phase, Welding Mode CC/CV, Polarity DC, Input Frequency 50/60 Hz, Welding Processes Air Carbon Arc Cutting and Gouging (CAC-A), Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW), Stick Welding Maximum Output Current 425 A, TIG Welding Maximum Output Current 425 A, MIG Welding Maximum Output Current 425 A
