  5. Multiprocess Welder, XMT 350 CC/CV, Phase Single-/Three-Phase , MIG, Stick, TIG , 350A

This item is Discontinued.

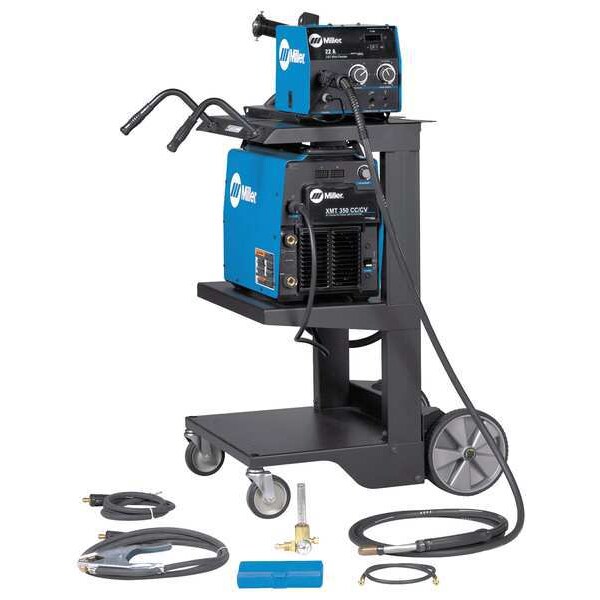

Miller Electric Multiprocess Welder, XMT 350 CC/CV, Phase Single-/Three-Phase , MIG, Stick, TIG , 350A 951314

Multiprocess Welder, XMT 350 CC/CV, Phase Single-/Three-Phase , MIG, Stick, TIG , 350A (Discontinued)

  • Mfr # 951314
  • Zoro # G9895566
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
951314
Zoro #
G9895566
UPC #
094722404529
Country of Origin
United States

Dimensions

Overall Height (In.)
65 in
Overall Depth (In.)
26 in
Overall Width (In.)
32 in
Overall Depth
24 in
Minimum Wire Diameter
0.35 (Aluminum), 0.35 (Nickel), 0.35 (Steel)
Overall Width
12.5 in
Max. Wire Diameter
0.04 in (Aluminum)
Overall Height
17 in
Maximum Wire Diameter
0.40 in (Aluminum), 0.45 in (Nickel), 0.45 in (Steel)
Power Cord Length
6 ft

Details

Item
Multiprocess Welder
Series
XMT 350 CC/CV
Phase
Single-/Three-Phase
Input Voltage
208V AC, 220/230/240V AC, 380/400V AC, 440/460/480V AC, 575V AC
Function
MIG, Stick, TIG
Rated Output
350A
Includes
10 ft Work Cable & Clamp, Bernard Q300 MIG Gun, MIGRunner Cart, Regulator/Flowmeter with 3 ft Gas Hose, S-74D Wire Feeder
Application
Aerospace, Construction, Heavy Equipment Manufacturing, High Purity Processing, Infrastructure, Manufacturing, Railcar, Shipbuilding
Features
Welder
Standards
CSA
Input (Amps)
40.4/36.1/20.6/17.8/14.1 o 60.8/54.6/29.7/25.4/19.9
OCV
70
Hz
50/60
Welding Processes
Air Carbon Arc Cutting and Gouging (CAC-A), Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
Amperage Range
5 A to 425 A
TIG Arc Start Feature
Lift Arc Start
Max. Amperage Range (TIG)
Greater than 300 A
MIG Welding Maximum Output Current
425 A
Welder Kit Type
MIG Package w/S-74D Wire Feeder
Input Voltage (Nominal)
208V, 400V, 460V, 575V
Plug Type
Bare Leads
Max. Input Current
40.4 A @ 208V AC (Three-Phase), 60.8 A @ 208V AC (Single-Phase)
Kit Includes
External Wire Feeder, MIG Gun, Running Gear, Work Cable with Clamp
Remote Connection Type
14-Pin (Miller)
MIG Welding Output @ Duty Cycle
300 A @ 32 V, 60%, 350 A @ 34 V, 60%
TIG Welding Maximum Output Current
425 A
Stick Welding Output @ Duty Cycle
300 A @ 32 V, 60%, 350 A @ 34 V, 60%
Welding Mode
CC/CV
TIG Welding Minimum Output Current
5 A
Input Frequency
50/60 Hz
For Material Type
Aluminum, Metal, Stainless Steel, Steel
TIG Welding Output @ Duty Cycle
300 A @ 32 V, 60% (1-Phase), 350 A @ 34 V, 60% (3-Phase)
Polarity
DC
Stick Welding Maximum Output Current
425 A
For Wire Type
Aluminum, Flux-Cored, Solid
MIG Welding Minimum Output Current
5 A
Open Circuit Voltage
75 V DC
Rated Output at Duty Cycle (Stick)
300 A @ 60%
Max. Amperage Range (MIG)
Greater than 300 A
Color
Blue
Weight
80 lb
Max. Amperage Range (Stick)
Greater than 300 A
Power Cord Included
Yes
Stick Welding Minimum Output Current
5 A
Model
951314
Process
Air Carbon Arc Cutting and Gouging (CAC-A), Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
brand-mfr model
MILLER ELECTRIC - 951314

Description

Multiprocess Welder, Series XMT 350 CC/CV, Input Voltage 208V AC, 220/230/240V AC, 380/400V AC, 440/460/480V AC, 575V AC, Phase Single-/Three-Phase, Welding Mode CC/CV, Polarity DC, Input Frequency 50/60 Hz, Welding Processes Air Carbon Arc Cutting and Gouging (CAC-A), Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW), Stick Welding Maximum Output Current 425 A, TIG Welding Maximum Output Current 425 A, MIG Welding Maximum Output Current 425 A
