This item is Discontinued.

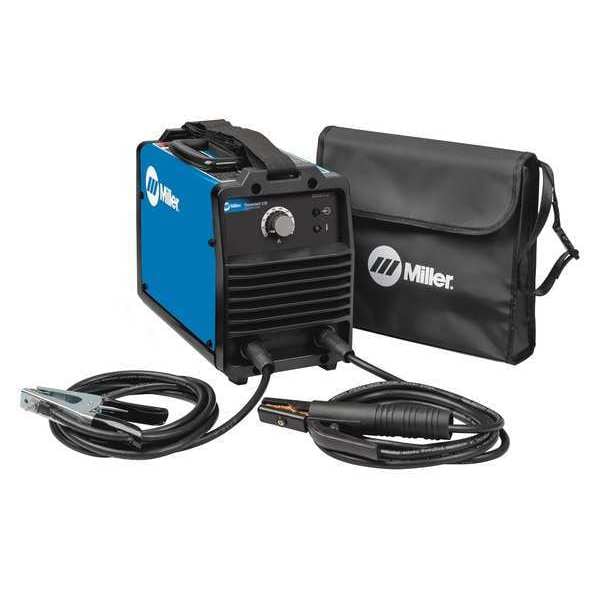

Miller Electric Stick Welder, Thunderbolt Series, 10-1/2 H 907722

Stick Welder, Thunderbolt Series, 10-1/2 H (Discontinued)

  • Mfr # 907722
  • Zoro # G0211193
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
907722
Zoro #
G0211193
UPC #
715959642149
Country of Origin
China

Dimensions

Overall Height (In.)
10 1/2 in
Overall Width (In.)
7 1/8 in
Overall Depth (In.)
13 3/8 in
Power Cord Length
6 1/2 ft
Work Cable Length
10 ft
Overall Depth
13.38 in
Overall Height
10.5 in
Electrode Cable Length
10 ft
Overall Width
7.25 in

Details

Item
Stick Welder
Series
Thunderbolt 210
Standards
ANSI/IEC, CSA
Includes
10 ft. No. 4 Electrode Cable with Heavy-Duty Electrode Holder, 10 ft. Work Cable with Clamp
Input Voltage
220/230/240V AC
Features
High Weld Output, Hot Start Technology
Phase
Single-Phase
Welding Processes
Stick Welding (SMAW)
Duty Cycle
20%
Output Amps @20% Duty Cycle
210A
Welding Amp Range Low
25 to 210
Amps DC
25 to 210
Output Amps @100% Duty Cycle
90 A
Hz
50/60
Polarity
DC
Input (Amps)
52
OCV
85
Rated Output
AC: 210A/240V/20%
Welding Range (Amps DC)
25-210
Application
Farms, Garages, Job Shops, Light Fabrication, Maintenance and Repair, Ranches, Shipbuilding
Welding Amp Range High
25 to 210
Output Range (Amps)
25 to 210
Stick Welding Maximum Output Current
210 A
Welding Mode
CC
Effective Input Current
43.4 A @ 240V AC (Single-Phase)
For Material Type
Stainless Steel, Steel
Cable Connection Type
Dinse-Style
Open Circuit Voltage
85 V DC
Stick Welding Minimum Output Current
25 A
Plug Type
6-50P
Stick Welding Output @ Duty Cycle
210 A @ 43.4 V, 20%
Color
Blue
Weight
15.5 lb
Input Frequency
50/60 Hz
Model
907722

Description

Stick Welder, Electrode Cable Length 10 ft, For Material Type Stainless Steel, Steel, Input Frequency 50/60 Hz, Input Voltage 220/230/240V AC, Phase Single-Phase, Polarity DC, Model 907722, Stick Welding Maximum Output Current 210 A, Cable Connection Type Dinse-Style, Stick Welding Output @ Duty Cycle 210 A @ 43.4 V, 20 Percent, Stick Welding Minimum Output Current 25 A, Welding Processes Stick Welding (SMAW), Welding Mode CC
