  5. Tig Welder, Syncrowave 350 LX Complete Package Series, 230/460/575V AC, 400 Max. Output Amps

This item is Discontinued.

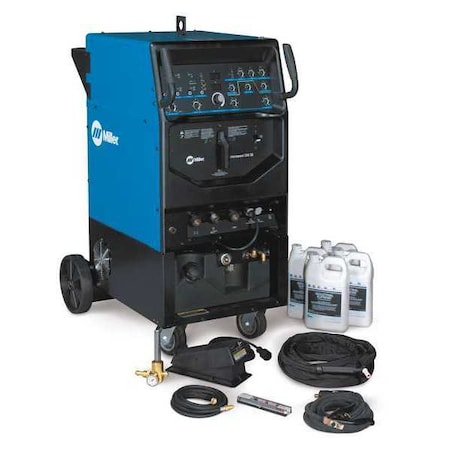

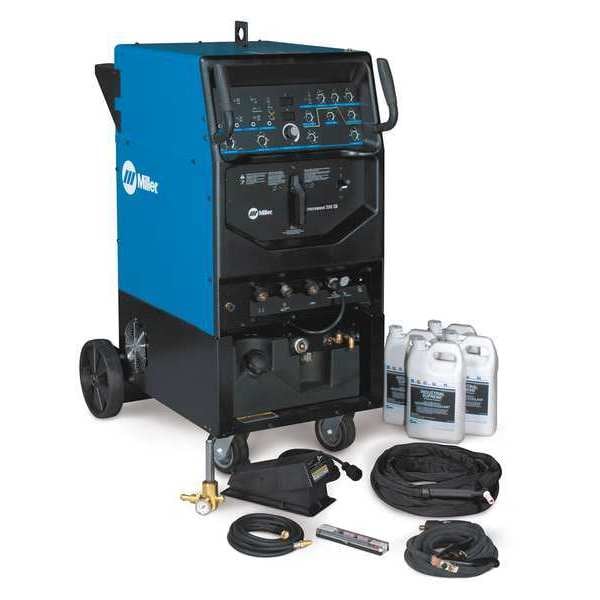

Miller Electric Tig Welder, Syncrowave 350 LX Complete Package Series, 230/460/575V AC, 400 Max. Output Amps 951623

Tig Welder, Syncrowave 350 LX Complete Package Series, 230/460/575V AC, 400 Max. Output Amps (Discontinued)

  • Mfr # 951623
  • Zoro # G9862307
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
951623
Zoro #
G9862307
UPC #
715959389563
Country of Origin
United States

Dimensions

Mild Steel - Material Thickness
0.012 in to 5/8 in
Aluminum - Material Thickness
0.015 in to 1/2 in
Overall Depth
25 in
Overall Width
22 1/2 in
Overall Height
36 1/4 in
For Maximum Material Thickness
1/2 in (Aluminum), 5/8 in (Mild Steel)
For Minimum Material Thickness
0.012 in (Mild Steel), 0.015 in (Aluminum)

Details

Item
TIG Welder
Welder Industrial Class
Heavy
Welding Processes
Pulsed TIG, Stick, TIG
Input Voltage
230/460/575V AC
Rated Output
300A @ 32V/350A @ 34V
Welder Max. Output Amps
400
Welder Min. Output Amps
3
Welder Duty Cycle
40 %
Series
Syncrowave 350 LX Complete Package
Welder Input Phase
1
Welder Input Hz
50/60
Input (Amps)
128/65/50
Includes
Coolant (4 one-gallon bottles of 043810), Coolmate(TM) 3X, RFCS-14HD remote foot control and receiver (194744), Running Gear, Syncrowave(R) 350 LX, Weldcraft(TM) W-375 torch kit and accessories (301268)
Welded Material
Aluminum, Mild Steel, Stainless Steel
Features
AC/DC Square Wave, Digital Meters, Pulser
Polarity
AC/DC
Application
Auto / Cycle (Racing, Customizing, Restoring), Construction, DIY / Home Hobbyist, Farm and Ranch, Infrastructure, Manufacturing, Metal Art / Sculptures, High Purity Processing, Boat / Yacht
Power Source Weight
496 lb
Welding Mode
CC
Max. Input Current
146 A @ 200V (Single-Phase)
Input Frequency
50/60 Hz
Remote Control
Yes
Open Circuit Voltage
80V DC
For Material Type
Aluminum, Mild Steel, Stainless Steel
Plug Type
Bare Leads
Weight
496 lb
Power Cord Included
No
Color
Blue/Black
Model
951623

Description

TIG Welder, For Material Type Aluminum, Mild Steel, Stainless Steel, For Maximum Material Thickness 1/2 in (Aluminum), 5/8 in (Mild Steel), For Minimum Material Thickness 0.012 in (Mild Steel), 0.015 in (Aluminum), Input Frequency 50/60 Hz, Max. Input Current 146 A @ 200V (Single-Phase), Phase Single-Phase, Polarity AC/DC, Series Syncrowave 350 LX, Welding Processes Air Carbon Arc Cutting and Gouging (CAC-A), Stick Welding (SMAW), TIG Welding (GTAW)
