  5. Tig Welder, Syncrowave 350 LX TIGRunner Series, 230/460/575V AC, 400 Max. Output Amps

This item is Discontinued.

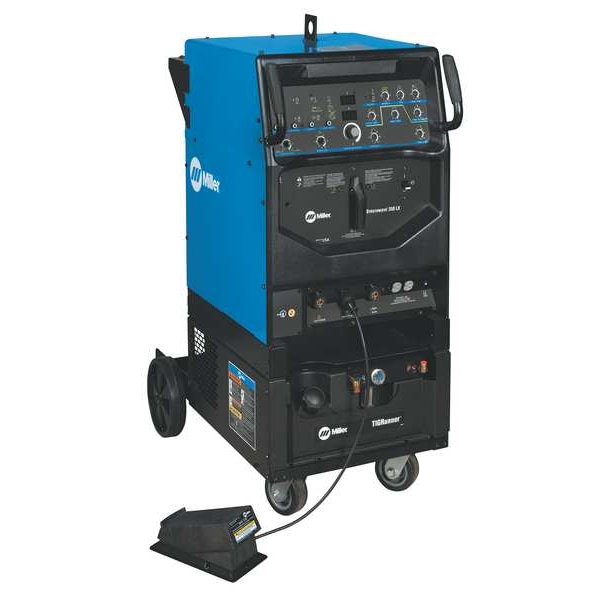

Miller Electric Tig Welder, Syncrowave 350 LX TIGRunner Series, 230/460/575V AC, 400 Max. Output Amps 907199032

Tig Welder, Syncrowave 350 LX TIGRunner Series, 230/460/575V AC, 400 Max. Output Amps (Discontinued)

  • Mfr # 907199032
  • Zoro # G9862325
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
907199032
Zoro #
G9862325
UPC #
715959372497
Country of Origin
Unknown

Dimensions

Mild Steel - Material Thickness
0.012 in to 5/8 in
Aluminum - Material Thickness
0.015 in to 1/2 in
Overall Width
22 1/2 in
Overall Height
36 1/4 in
Overall Depth
25 in
For Minimum Material Thickness
0.012 in (Mild Steel), 0.015 in (Aluminum)
For Maximum Material Thickness
1/2 in (Aluminum), 5/8 in (Mild Steel)

Details

Item
TIG Welder
Welder Industrial Class
Heavy
Welding Processes
Pulsed TIG, Stick, TIG
Input Voltage
230/460/575V AC
Rated Output
300A @ 32V/350A @ 34V
Welder Max. Output Amps
400
Welder Min. Output Amps
3
Welder Duty Cycle
40 %
Series
Syncrowave 350 LX TIGRunner
Power Source Weight
496 lb
Welded Material
Aluminum, Mild Steel, Stainless Steel
Includes
Coolmate(TM) 3X, RFCS-14HD remote foot control and receiver (194744), Running Gear, Syncrowave(R) 350 LX
Features
AC/DC Square Wave, Digital Meters, Pulser
Welder Input Phase
1
Welder Input Hz
50/60
Application
Auto / Cycle (Racing, Customizing, Restoring), Construction, DIY / Home Hobbyist, Farm and Ranch, Infrastructure, Manufacturing, Metal Art / Sculptures, High Purity Processing, Boat / Yacht
Polarity
AC/DC
Input (Amps)
128/65/50
Stick Welding Maximum Output Current
400 A
Power Cord Included
No
Stick Welding Output @ Duty Cycle
300 A @ 32 V/350 A @ 34 V, 40 %
Plug Type
Bare Leads
Input Frequency
50/60 Hz
Amperage Range
3 A to 400 A
Stick Welding Minimum Output Current
3 A
TIG Welding Output @ Duty Cycle
300 A @ 32 V/350 A @ 34 V, 40 %
Open Circuit Voltage
80V DC
Weight
496 lb
For Material Type
Aluminum, Mild Steel, Stainless Steel
Remote Control
Yes
TIG Welding Maximum Output Current
400 A
Color
Blue/Black
Welding Mode
CC
TIG Welding Minimum Output Current
3 A
Max. Input Current
146 A @ 200V (Single-Phase)
Model
907199032

Description

TIG Welder, For Material Type Aluminum, Mild Steel, Stainless Steel, For Maximum Material Thickness 1/2 in (Aluminum), 5/8 in (Mild Steel), For Minimum Material Thickness 0.012 in (Mild Steel), 0.015 in (Aluminum), Input Frequency 50/60 Hz, Max. Input Current 146 A @ 200V (Single-Phase), Phase Single-Phase, Polarity AC/DC, Series Syncrowave 350 LX, Stick Welding Maximum Output Current 400 A, Stick Welding Minimum Output Current 3 A
