  9. Water Coolant System, 1/4 HP, 3.5 gal.
Shop All Arc Welder Accessories
Miller Electric

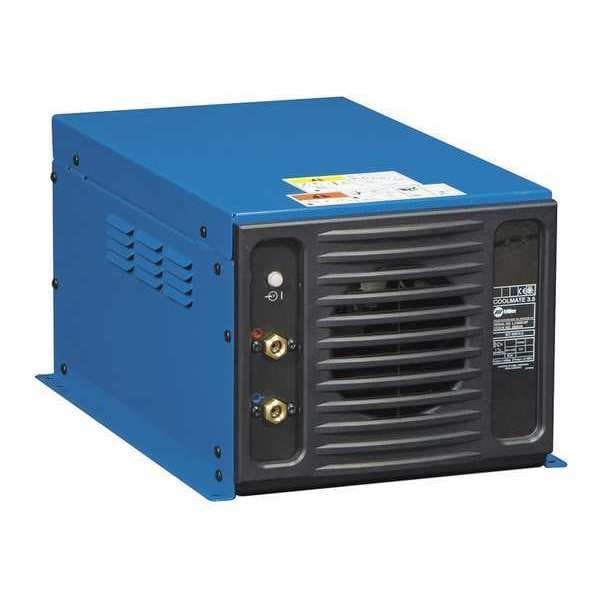

Water Coolant System, 1/4 HP, 3.5 gal.

product price: $2,351.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Promotion Restriction Not eligible for promotion
  • Tank Capacity 3.5 gal
  • Series Coolmate 3.5
  • Voltage 115 V
  • For Use With Water Cooled Torches Up to 600 Amperes
See all product information

Product Information

Dimensions

Overall Width (In.) 15 3/4 in
Overall Length (In.) 26 in
Overall Height (In.) 11 3/4 in
Overall Length 26 in
Overall Height 11.8 in
Overall Width 15.8 in
Power Cord Length 10 ft

Details

Promotion Restriction Not eligible for promotion
Item Water Coolant System
Tank Capacity 3.5 gal
Series Coolmate 3.5
Voltage 115 V
For Use With Water Cooled Torches Up to 600 Amperes
Motor HP 1/4 hp
Input (Amps) 4.7 A
Features Efficient Fin-and-Tube Heat Exchanger, Rustproof Fan Shroud and Filler Spout
Standards CE Approved
Process MIG (GMAW), Plasma Cutting, Resistance Welding, TIG (GTAW)
Compatible with Brand Coolmate
Rated Cooling Capacity 5,660 BtuH
Compatible Torch Current (Maximum) 600 A
Mounting Orientation Horizontal
Motor Horsepower (Maximum) 1/4 hp
Input Current 4.7 A @ 60Hz, 5.9 A @ 50Hz
Input Voltage 120V
Phase Single
Industry Application Aerospace, Automation, Automotive, Manufacturing, Tube Mills
Maximum Flow Rate 5 qt/min
Weight Without Coolant 64 lb
Frequency 50 Hz, 60 Hz
Cooling Capacity (Maximum) 14,000 BtuH
Compatible with Manufacturer Model Number Dynasty 400/700, Maxstar 400/700
Flow Rate (Maximum) 5 qt/min
Compatible with Manufacturer Model Number [NEW] Dynasty 400/700, Maxstar 400/700
Compatible Manufacturer Part Number Dynasty 400/700, Maxstar 400/700
Compatible with Manufacturer Part Number Dynasty 400/700, Maxstar 400/700
Compatible Manufacturer Model Number Dynasty 400/700, Maxstar 400/700
For Use with Mfr. Model Number Dynasty 400/700, Maxstar 400/700
For Use With Mfr. Model Number Dynasty 400/700, Maxstar 400/700

Description

Water Coolant System, Cooling Capacity (Maximum) 14,000 BtuH, Rated Cooling Capacity 5,660 BtuH, Compatible with Manufacturer Model Number Dynasty 400/700, Maxstar 400/700, Compatible Torch Current (Maximum) 600 A, Tank Capacity 3.5 gal, Series Coolmate 3.5, Compatible with Brand Coolmate, Features Efficient Fin-and-Tube Heat Exchanger, Rustproof Fan Shroud and Filler Spout, Flow Rate (Maximum) 5 qt/min, Frequency 50 Hz, 60 Hz
