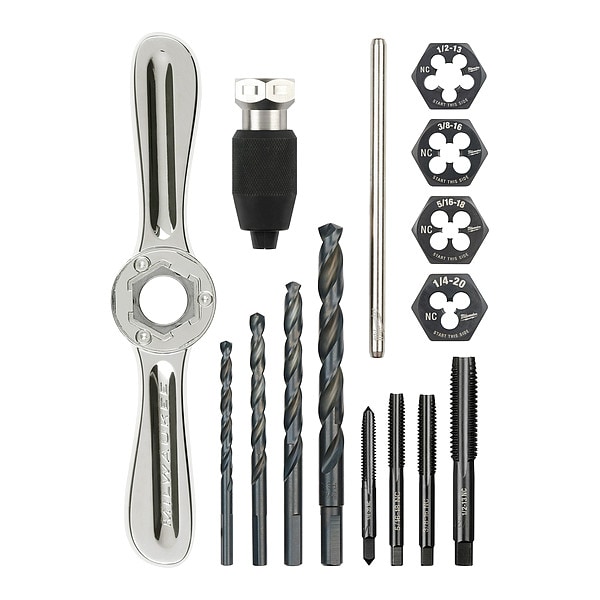

Milwaukee Tool 15PC SAE Tap and Die Set with Hex-LOK 2-in-1 Handle 49-22-5602 - main

15PC SAE Tap and Die Set with Hex-LOK 2-in-1 Handle

  • Mfr # 49-22-5602

  • Zoro # G211208797

product price: $94.97
/ea
Free Shipping & Returns

Key Features

Tap Finish
Black Oxide
Number of Pieces
15
Die Type
1 in Hex
Features
2-in-1 Handle Compatibility Allows for Easy Snap in and Out, Tool-Free Die and Collet Changes, Drill Bits are Designed for use with Drill Drivers, For Best Results use with Cutting Fluid, Hex Dies can be used to Create or Repair Threads, Hex-lok(TM) 2-in-1 Handle is the most Versatile Threading Solution Designed for Tap and Die Threading, Includes Precision Machined Threading Accessories for the most Common Applications, Plug Style Tap is Designed for through Hole Threading, Taps and Dies Feature Long Lasting Laser Etch for the Clearest Markings
Tap Chamfer
Plug
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
49-22-5602
Zoro #
G211208797
UPC #
045242779369
Country of Origin
China

Dimensions

Dimensions Standard
SAE
Min. Tap Thread Size
5/16-18 NC
Die Hex Size
1 in
Drill Bit Size
#7, 27/64", 5/16", F
Tap Sizes Included
1/2 in-13 NC, 1/4 in-20 NC, 3/8 in-16 NC, 5/16 in-18 NC
Thread Sizes Included
#7 Drill Bit, 1/2-13 NC Straight Flute Plug Tap, 1/2-13 NC, 1 in Hex Threading Die, 1/4-20 NC Straight Flute Plug Tap, 1/4-20 NC, 1 in Hex Threading Die, 27/64 in Drill Bit, 3/8-16 NC Straight Flute Plug Tap, 3/8-16 NC, 1 in Hex Threading Die, 5/16 in Drill Bit, 5/16-18 NC Straight Flute Plug Tap, 5/16-18 NC, 1 in Hex Threading Die, F Drill Bit
Max. Tap Thread Size
1/2-13 NC
Max. Die Thread Size
1/2-13 NC
Tap Overall Length
11.0000 in
Die Thread Sizes Included
1/2-13 NC, 1/4-20 NC, 3/8-16 NC, 5/16-18 NC

Details

Item
Tap and Die Set
Tap Finish
Black Oxide
Number of Pieces
15
Die Type
1 in Hex
Features
2-in-1 Handle Compatibility Allows for Easy Snap in and Out, Tool-Free Die and Collet Changes, Drill Bits are Designed for use with Drill Drivers, For Best Results use with Cutting Fluid, Hex Dies can be used to Create or Repair Threads, Hex-lok(TM) 2-in-1 Handle is the most Versatile Threading Solution Designed for Tap and Die Threading, Includes Precision Machined Threading Accessories for the most Common Applications, Plug Style Tap is Designed for through Hole Threading, Taps and Dies Feature Long Lasting Laser Etch for the Clearest Markings
Tap Chamfer
Plug
Die Shape
Hex
Thread Type
SAE
Measurement System
SAE
Finish - Machining
Black Oxide
Primary Material Application
Ferrous, Non-Ferrous
Tap Type
Plug
Number Of Taps
4
Die Finish
Black Oxide
Number of Dies in Set
4
Threads per Inch
13, 16, 18, 20
Material - Machining
Metal
Thread Standard
SAE

Description

Tap and Die Set, Number of Pieces 15, Die Shape Hex, Tap Type Plug, Thread Sizes Included #7 Drill Bit, 1/2-13 NC Straight Flute Plug Tap, 1/2-13 NC, 1 in Hex Threading Die, 1/4-20 NC Straight Flute Plug Tap, 1/4-20 NC, 1 in Hex Threading Die, 27/64 in Drill Bit, 3/8-16 NC Straight Flute Plug Tap, 3/8-16 NC, 1 in Hex Threading Die, 5/16 in Drill Bit, 5/16-18 NC Straight Flute Plug Tap, 5/16-18 NC, 1 in Hex Threading Die, F Drill Bit
