25PC 135 Degree Heavy-Duty Jobber Drill Set Cle-Line 1878 Black & Gold HSS RHS/RHC 1mm-13mmx.5mm
Mfr # C74059
Zoro # G2827583
Key Features
Specifications
Product Information
- MFR #
- C74059
- Zoro #
- G2827583
- UPC #
- 697334740599
- Country of Origin
- United States
Dimensions
- Drill Bit Size
- 1 mm to 13 mm by 0.5 mm
- Drill Bit Dimension Type
- Metric
- Depth x Dia. Ratio
- 4xD
- Size Range
- 1/16"-1/2", A-Z, #1-#60
- Depth:Dia. Ratio
- 4xD
- Smallest Drill Bit Size
- 1 mm
- Drill Length Class
- Jobber-Length
- Largest Drill Bit Size
- 13 mm
- Drill Bit Sizes Included
- 1 mm, 1.5 mm, 10 mm, 10.5 mm, 11 mm, 11.5 mm, 12 mm, 12.5 mm, 13 mm, 2 mm, 2.5 mm, 3 mm, 3.5 mm, 4 mm, 4.5 mm, 5 mm, 5.5 mm, 6 mm, 6.5 mm, 7 mm, 7.5 mm, 8 mm, 8.5 mm, 9 mm, 9.5 mm
- Overall Length
- 1 11/32 in, 1 9/16 in, 1 15/16 in, 2 15/64 in, 2 13/32 in, 2 49/64 in, 2 61/64 in, 3 5/32 in, 3 25/64 in, 3 21/32 in, 3 63/64 in, 4 19/64 in, 4 39/64 in, 4 59/64 in, 5 15/64 in, 5 19/32 in, 5 61/64 in
- Wire Rope Length
- 1 11/32 in, 1 9/16 in, 1 15/16 in, 2 15/64 in, 2 13/32 in, 2 49/64 in, 2 61/64 in, 3 5/32 in, 3 25/64 in, 3 21/32 in, 3 63/64 in, 4 19/64 in, 4 39/64 in, 4 59/64 in, 5 15/64 in, 5 19/32 in, 5 61/64 in
- Length
- 1 11/32 in, 1 9/16 in, 1 15/16 in, 2 15/64 in, 2 13/32 in, 2 49/64 in, 2 61/64 in, 3 5/32 in, 3 25/64 in, 3 21/32 in, 3 63/64 in, 4 19/64 in, 4 39/64 in, 4 59/64 in, 5 15/64 in, 5 19/32 in, 5 61/64 in
Description

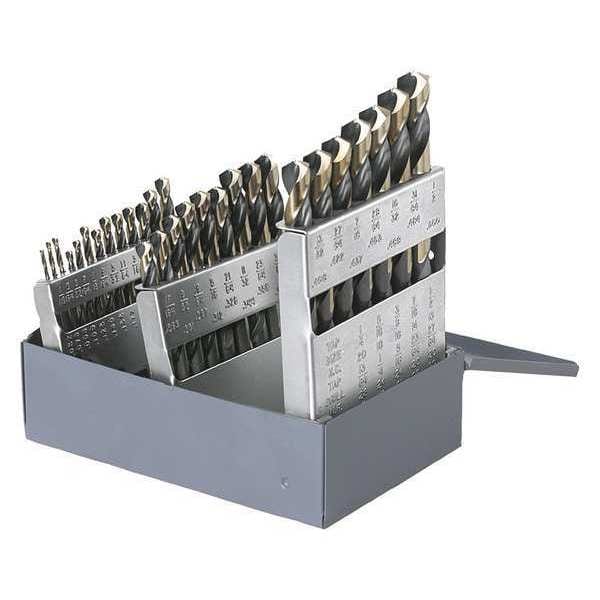

The CLE-LINE - C74059 is a jobber-length drill bit set intended for use in drilling applications in the specified materials. The set features 25 high-speed steel drill bits ranging in size from 1 mm to 13 mm, with a two-flute design and split point tips (135°) for drill centering. These right-hand spiral drill bits comply with ASME B94.11M and DIN 338 standards and come with a metal index case for storage in a metal index case and bit identification by size. The shanks are straight with three flats (for compatibility with chucks and reduced slip risk when clamped).
Key Features:
- Contains 25 pieces with drill sizes from 1 mm to 13 mm.
- Jobber-length style with a length-to-diameter ratio of approximately 4xD.
- Made of high-speed steel (HSS) suitable for drilling in aluminum, cast iron, and steel.
- Split point with a 135-degree angle (135°) to support drill centering and reduce walking.
- Two-flute spiral design with right-hand cutting direction and spiral helix angles ranging from 21 to 34 degrees.
- Straight shank with three flats for clamping engagement.
- Includes a metal drill index case for bit organization and storage.
- Meets metric measurement standards with sizes incremental by 0.5 mm.
