This item is Discontinued.

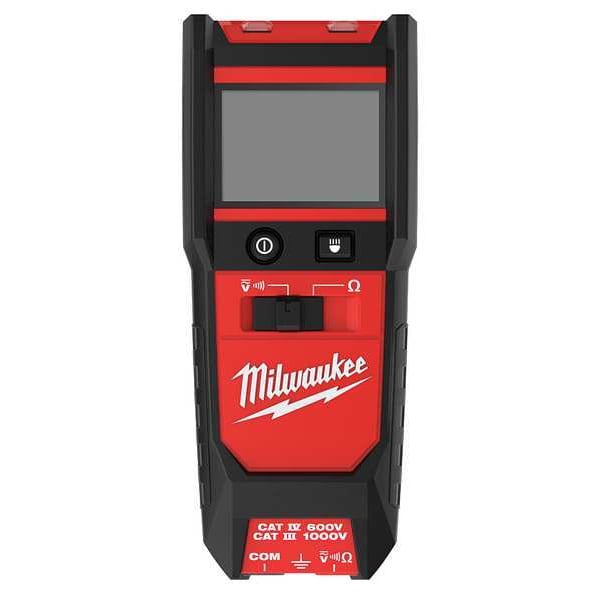

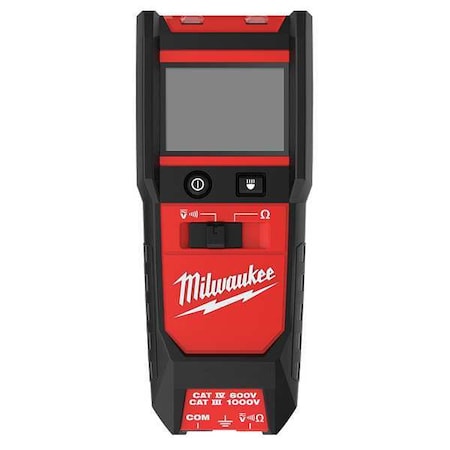

Milwaukee Tool Auto Voltage/Continuity Tester W/ Resistance 2213-20

Auto Voltage/Continuity Tester W/ Resistance (Discontinued)

  • Mfr # 2213-20
  • Zoro # G9078246
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2213-20
Zoro #
G9078246
UPC #
045242314645
Country of Origin
China

Dimensions

Manufacturers Warranty Length
5 yr
Manufacturer Warranty Length
5 yr
Cable Length
4.58 ft
Battery Size
AAA
Tool Length
14 in
Tool Height
9.9 in
Tool Width
13.1 in

Details

Item
Voltage and Continuity Tester
Battery Type
AAA
Safety Rating
CAT III 1000V, CAT IV 600V
Flashlight
Yes
AC Voltage Range
5 to 600
Auto Ranging
Yes
DC Voltage Range
2 to 600
Basic DC Accuracy
+/-3% + 5 Digits
Includes
Belt Clip, Test Lead Set
Resistance
Yes
Special Features
Belt Clip Accessory and LCD Display
Standards
Measurement Category IV, 600V, Pollution Degree II, EMC EN 61326-1, UL/CSA/IEC/EN 61010-031 First Edition +A1 (Probes), UL/CSA/IEC/EN 61010-1 Third Edition and IEC/EN 61010-2-033 First Edition (Meter)
Features
Auto-Function and Auto-Ranging for Simple Use, Belt Clip Eliminates Holding the Meter While You Work, Built-In Test Lead Holders for Quick Storage, Dual LED and Audible Indicators for Fast and Convenient Test Results, LED Worklight for Low-Lit Areas, Replaceable Test Leads for Greater Flexibility, Rugged Over-Molding
Auto Power Off
Yes
Maximum DC Voltage Measured
600 V
Includes Batteries
Yes
Minimum Resistance Measured
20 kiloohm
Maximum Operating Temperature
122 Degrees F
Minimum AC Voltage Measured
5 V
Built-In Flashlight
Yes
DC Voltage Accuracy
+/-3.00% +5 digits
Minimum DC Voltage Measured
200 V
Test Connection Type
Probe Tip
Power Source
Battery
Display Type
Digital
Testing Functions
Continuity
Battery Chemistry
Alkaline
Number of Batteries Required
2
Display Screen Type
LCD
Maximum AC Voltage Measured
600 V
Maximum Resistance Measured
20 kiloohm
Non-Contact
No
Continuity Confirmation
2 to 20 kiloohm
Alert Type
Digital Display, Light, Sound
Minimum Operating Temperature
32 Degrees F
CAT Safety Rating
CAT IV 600V
Tester Type
Voltage and Continuity Tester
Maximum Operating Temperature
122 Degrees F

Description

The Milwaukee Auto Voltage/Continuity Tester W/ Resistance combines the features you get from high performance electrical meters into an accurate, simple, and productive tester. While traditional testers only indicate broad voltage ranges that mask electrical issues like voltage drops, the Milwaukee Auto Voltage/Continuity Tester W/ Resistance delivers measurements down to the decimal and displays them on an easy to read LCD. The tester also automatically determines whether to test for Voltage or Continuity and is compatible with common threaded carrying and mounting accessories like belt clips and magnets. The LED worklight provides visibility in low-lit areas and test lead holders conveniently store the probes for when the job is done. This Auto Voltage/Continuity Tester w/ Resistance is the ideal tester for use on outlets, switches, wires, and breaker panels; perfect for any Residential, Apprentice or Journeymen Electrician looking for an accurate, simple and productive tester at an affordable price. Accessory Attachments: 1⁄4”-20 Thread Compatible, Belt Clip (Included), Magnet (Sold Separately 49-24-2351)
