Milwaukee Tool

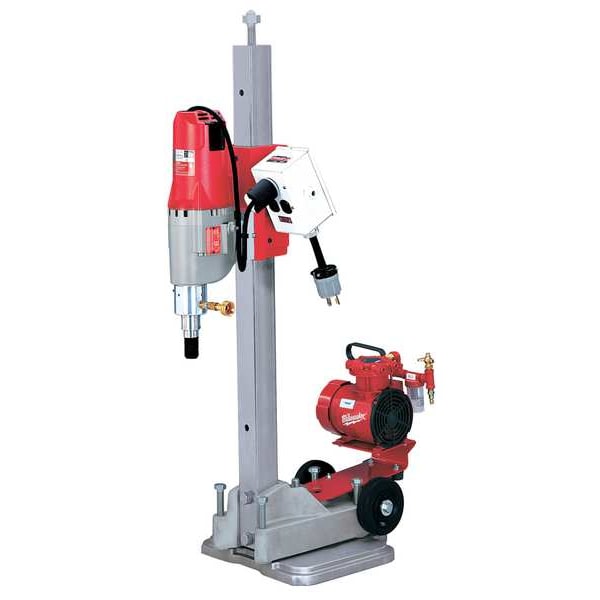

Diamond Coring Rig w/Small Base Stand, Vac-U-Rig Kit, Meter Box

Hover or click to zoom Tap to zoom
Key Features
  • Promotion Restriction: Not eligible for promotion
  • Item: Diamond Coring Rig
  • Motor HP: 4 4/5 hp
  • Amps: 20.0 A
  • No Load RPM: 450/900
  • Core Bit Cap Concrete: 10 in
  • Overall Height: 43 1/2 in
  • Corded/Cordless: Corded
See full product details
$2,053.33
Item requires special delivery charges. A $75.00 per item surcharge will be applied.
Join our email list for 10% off your first order
For 10% Off Your First Order
Free Shipping on $50+ Orders
No-Hassle, 30-Day Returns 30-Day Returns
125 U.S.-Based Customer Service Agents 125 U.S.-Based Customer Service Agents

Milwaukee Tool #4115-22 Specifications

  • Promotion Restriction: Not eligible for promotion
  • Item: Diamond Coring Rig
  • Motor HP: 4 4/5 hp
  • Amps: 20.0 A
  • No Load RPM: 450/900
  • Core Bit Cap Concrete: 10 in
  • Overall Height: 43 1/2 in
  • Corded/Cordless: Corded
  • Column Dia.: 2-1/2 in x 2-1/2 in
  • Column Height: 43 1/2 in
  • Corded/Banded: Corded
  • Voltage: 120V AC
  • Tool Weight: 111.5 lb
  • Includes: 4096 Diamond Coring Rig Motor, Meter Box, Small Base Stand, Vac-u-rig Kit
  • Features: 1-1/4 in -7 Spindle, Rear Mounted Rack And Pinion Feed, Small Cast Aluminum Base With Four Leveling Screws
  • Minimum Spindle Speed: 450 RPM
  • Relative Base Size: Small
  • Spindle Decimal Equivalent Screw Size: 1.25 in
  • Angle-to-Surface: 90 Degrees
  • Power Source: Corded
  • Overload Protection Clutch: Yes
  • Plug Type: L5-20P
  • Adjustable Angle: No
  • Current: 20 A
  • Maximum Spindle Speed: 900 RPM
  • Spindle Thread Size: 1 1/4"-7
  • Anti-Kickback Clutch Type: Mechanical
  • Horsepower: 4.8 hp
  • Application: Drilling with Stability
  • Nominal Voltage: 115V AC
  • Series: Contractor
  • Coring Capacity in Concrete: 10 in
  • Reversible: Yes
  • Minimum Core Bit Compatibility: 2 in
  • Maximum Core Bit Compatibility: 10 in
  • Column Diameter: 2 1/2 in
  • Spindle Screw Size: 1 1/4 in
  • Phase: Single-Phase
  • Speed Setting: Variable Speed
  • Number of Pieces: 5
  • Core Drill Type: Core Drill Rig
  • Maximum Speed: 900 RPM
  • Country of Origin (subject to change): United States

Description

Diamond Coring Rig, Core Drill Type Core Drill Rig, Horsepower 4.8 hp, Coring Capacity in Concrete 10 in, Current 20 A, Column Height 43 1/2 in, Angle-to-Surface 90 Degrees , Maximum Spindle Speed 900 RPM, Minimum Spindle Speed 450 RPM, Phase Single-Phase, Tool Weight 111.5 lb, Speed Setting Variable Speed, Adjustable Angle No, Anti-Kickback Clutch Type Mechanical
