M12 FORCE LOGIC Press Tool

Mfr # 2473-20
Zoro # G7370651

1,949.00

Free Shipping & Returns

Zoro's best price: not eligible for any other offers or promotions

Key Features

Compatible Material Type

Black Iron, Copper, PEX, Stainless Steel, Black Steel, Copper Ring PEX

Compatible Pipe Size

1/2 in to 1 1/4 in

Compatible Fitting System

M12 FORCE LOGIC

Cycle Time

5 sec

Series

M12 FORCE LOGIC

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: 2473-20
Zoro #: G7370651
UPC #: 045242288304
Country of Origin: Germany

Dimensions

Compatible Pipe Size: 1/2 in to 1 1/4 in
Overall Height: 3.8 in
Overall Width: 2.8 in
Overall Length: 12.6 in
Minimum Compatible Tube Size - Copper: 1/2 in
Minimum Compatible Tube Size - ASTM F1807/F2159 (Copper Ring PEX): 1/2 in
Minimum Compatible Tube Size - PEX: 1/2 in
Manufacturer Warranty Length: 2 yr Jaw Warranty, 5 yr Tool
Maximum Compatible Pipe Size - Stainless Steel: 1 1/4 in
Maximum Compatible Tube Size - Copper: 1 1/4 in
Minimum Compatible Pipe Size - Stainless Steel: 1/2 in
Maximum Compatible Pipe Size - Black Steel: 1 in
Maximum Compatible Tube Size - ASTM F1807/F2159 (Copper Ring PEX): 1 1/2 in
Maximum Compatible Tube Size - PEX: 1 1/4 in
Minimum Compatible Pipe Size - Black Steel: 1/2 in
Maximum Compatible Pipe Size: 1 1/4 in
Minimum Compatible Pipe Size: 1/2 in
Wire Rope Length: 12.6 in
Length: 12.6 in

Details

Compatible Material Type: Black Iron, Copper, PEX, Stainless Steel, Black Steel, Copper Ring PEX
Compatible Fitting System: M12 FORCE LOGIC
Cycle Time: 5 sec
Series: M12 FORCE LOGIC
Voltage: 12 V
Press Tool Type: Compact
Item: Cordless Press Tool
Crimping Force: 5,400 lb
Features: Balanced, In-line Design Suitable for One-Handed Use, Batteries Recharge in 30 min, Cuts, Fastens and Connects in One System; Auto-Cycles, Pre-press Battery Check, Service Cycle Interval: 32,000 Cycles

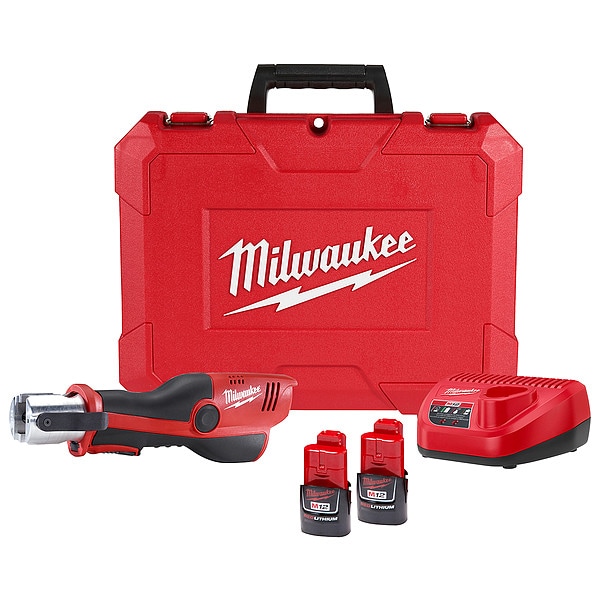

Includes: (2) REDLITHIUM CP1.5 Battery Packs (48-11-2401), Carrying Case, Charger (48-59-2401)
Battery Capacity: 1.5 Ah
Tool Weight: 3.8 lb
Calibration Interval: 32,000 Cycles
Standards: cCSAus Certified
Handle Type: Inline
Pressing Capacities: 1/2 to 1-1/4 in
Battery Platform: M12(TM) REDLITHIUM(TM)
Throw Type: Short Throw
Battery Model Number: 48-11-2401
Charger Model Number: 2XKZ7
Number of Batteries Included: 2
Cordless Tool Kit Contents: (2) Batteries, Bare Tool, Charger
Includes Charger: Yes
Compatible Battery Manufacturer Part Number: 48-11-2401
Compatible Battery Brand: Milwaukee(R)
Tool Series: FORCE LOGIC(TM)
Grip Material: Rubber
Bare Tool / Battery Included: Battery Included
Service Cycle Interval: 32,000 Cycles
Power Source: Cordless
Auto-Cycle: Yes
Pre-Press Battery Check: Yes

Description

The MILWAUKEE TOOL - 2473-20 is a cordless press tool, a portable and battery-powered device used by plumbing professionals to make connections in piping systems. It applies force to crimp and seal fittings onto pipes, aimed at creating secure and leak-free connections.

Key Features of the MILWAUKEE TOOL - 2473-20 Cordless Press Tool:

Battery Platform: The M12(TM) REDLITHIUM(TM) platform indicates the specific type of battery required for optimal operation.
Compatible Fitting System: Compatible with the M12 FORCE LOGIC fitting system, intended for use in various plumbing applications.
Compatible Material Type: Suitable for use with materials such as Black Iron, Copper, PEX, Stainless Steel, Black Steel, Copper Ring PEX.
Compatible Pipe Size: Compatible with pipe sizes ranging from 1/2 inch to 1 1/4 inches.
Crimping Force: Capable of exerting a maximum pressure of up to 5.400 lb.
Handle Type: Inline handle design is intended for direct force application during tasks.
Included Items: Comes with (2) REDLITHIUM CP1.5 Battery Packs (48-11-2401), Carrying Case, Charger (48-59-2401).
