Shop MILWAUKEE VALVE

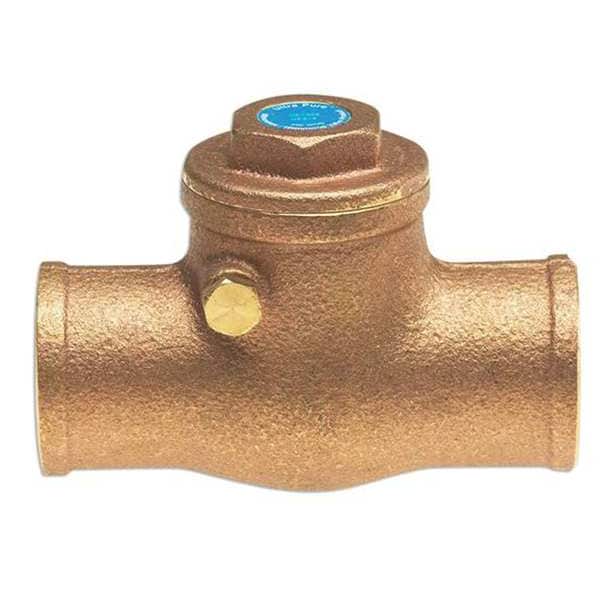

1" Sweat Low Lead Bronze Spring Check Valve

  • Mfr # UP1509 1

  • Zoro # G2256502

product price:
$
131.99
/ea
Free Shipping & Returns

Key Features

Pipe Size
1"
Connection Type
Solder
Connection
Sweat
Body Material
Bronze
Max. Steam Pressure - Valves
Not Rated
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
UP1509 1
Zoro #
G2256502
UPC #
697988624696
Country of Origin
United States

Dimensions

Pipe Size
1"
Pipe or Tube Size - Check Valves
1 in
Overall Height
1 31/32 in
Length
4 in
Size
1"
Width
1 in
Overall Length
4 in
Pipe or Tube Size
1 in
Connection Size - Side 2
1 in
Height - Cap to Inlet Center
1 5/16 in
Connection Size - Side 1
1 in
Nominal Valve Size
1 in
Wire Rope Length
4 in

Details

Connection Type
Solder
Connection
Sweat
Body Material
Bronze
Max. Steam Pressure - Valves
Not Rated
Max. Pressure
300 psi Non Shock CWP
Max. Temp.
200 Degrees F
Max. Water Pressure
300 psi Non Shock CWP
Cracking Pressure - Check Valves
0.750 to 1.000 psi
Application - Valves
General Purpose
Flow - Valves
31.0 gpm
Mechanism and Body Design
Inline Swing
Max. Temp. - Valves
200 Degrees F
Sub-Category
Bronze
Flow Design
Single
Material of Construction
Bronze
Cap to Inlet Center
1 31/32 in
Connection Type - Check Valves
Sweat x Sweat
Flow
31 gpm
Seat Material - Check Valves
Brass
Item - Check Valves
Check Valve
Item
Low Lead Swing Check Valve
Seal Material - Check Valves
Bronze
Mounting Orientation - Check Valves
Horizontal
Standards
NSF/ANSI 372
Body Material - Valves
Bronze
Full Flow - Valves
Yes
Mounting Position
With Pressure Coming From Under the Disc
Max. Water Pressure - Valves
300 psi @ 150 Degrees F
Cracking Pressure
0.5 psi
Min. Temp. - Valves
-20 Degrees F
Seat Material
Bronze
Seal Material
Bronze
Mounting Orientation
Horizontal
Type
Horizontal Swing
Includes Counterweight
No Counterweight
NSF Certifications for Food and Drinking Water
NSF 61
Connection Type - Side 2
Sweat
Check Mechanism
Swing
Operating Temperature - Minimum
-20 Degrees F
Maximum Pressure - Operating
300 psi
For Media
Gas, Oil, Water
Connection Type - Side 1
Sweat
Silent Check
Standard
Connection Gender - Side 2
Female
Vacuum Service Rating
Not Rated
Operating Temperature - Maximum
200 Degrees F
Maximum Pressure - Steam
Not Rated
3-A Standard Compliance
Not Rated
Coefficient of Volume (Cv)
31
Connection Gender - Side 1
Female
Valve Body Style
Inline
Check Mechanism Material
Brass
Valve Series
UP1509

Description

The MILWAUKEE VALVE UP1509 is a 1 in. low lead bronze swing check valve with an inline body design and sweat x sweat connections. It is designed for one-way flow control in gas, oil, and water service and uses a swing check mechanism to help prevent backflow. This valve is rated for horizontal mounting with pressure coming from under the disc. Full flow: Yes.

Key Features:

  • 1 in. nominal valve size with 1 in. female sweat connections on both sides
  • Low lead bronze body with brass check mechanism
  • Inline swing design; type: horizontal swing
  • For use with gas, oil, and water
  • Flow capacity: 31 gpm; Cv: 31
  • Cracking pressure: 0.750 to 1.000 psi
  • Maximum pressure: 300 psi non-shock CWP; maximum water pressure: 300 psi at 150 degrees F
  • Operating temperature range: -20 degrees F to 200 degrees F
  • Full flow: Yes
  • Certification: NSF 61
  • Standard: NSF/ANSI 372
  • Overall length: 4 in.; overall height: 1 31/32 in.; width: 1 in.
