Milwaukee Valve

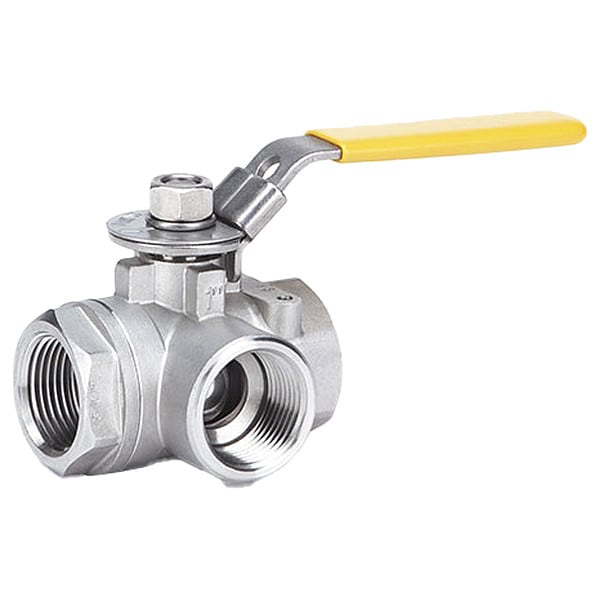

2" FNPT Stainless Steel Ball Valve 3-Way

product price: $438.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Body Material 316 Stainless Steel
  • Body Style 3-Way
  • Max. Pressure 1000 psi CWP
  • Body Seal Material PTFE
  • Valve Structure 2-Piece
See all product information

Product Information

Dimensions

Pipe Size 2"
Overall Length 5.59 in
Handle Height 3.46 in
Outlet Connection Size - Side 2 2 in
Inlet Connection Size 2 in
Nominal Valve Size 2 in
Outlet Connection Size - Side 1 2 in
Handle Length 8.07 in

Details

Body Material 316 Stainless Steel
Body Style 3-Way
Max. Pressure 1000 psi CWP
Body Seal Material PTFE
Valve Structure 2-Piece
Handle Material 304 Stainless Steel
Seat Material RPTFE
Ball Material 316 stainless steel
Stem Material 316 stainless steel
Ball Valve Basic Body Material Stainless Steel
Connection Type FNPT x FNPT x FNPT
Standards ASTM-A 351 GR CF8M
Temp. Range -20 Degrees to 450 Degrees F
Port Standard L
Ball Valve Product Group Manual
Handle Type Locking Lever
Item Ball Valve
Seal Material RPTFE
Stem Type Blowout Resistant
Connection FNPT
Type Two Piece, Three Way
Sub-Category Steel Ball Valves
Material of Construction 316 Stainless Steel
Color - Valve Handle Yellow
Ball Port Style Standard Port
Operating Temperature - Minimum -20 Degrees F
Outlet Connection Gender - Side 2 Female
Maximum Pressure - Combustible Gas Not Rated
3-A Standard Compliance Not Rated
Vacuum Service Rating 29.92 in Hg
Flow Pattern L Flow
Maximum Pressure - Steam 65 psi
Operating Temperature - Maximum 450 Degrees F
Valve Ways 3-Way
Inlet Connection Entry Side
Outlet Connection Gender - Side 1 Female
Outlet Connection Type - Side 1 NPT
For Media Gas, Oil, Water
Outlet Connection Type - Side 2 NPT
Maximum Pressure - Operating 1,000 psi
Valve Construction Two-Piece
Inlet Connection Type NPT
Handle - Locking Locking
Inlet Connection Gender Female

Description

Manual Three-Way Ball Valve, Body Material CF8M Stainless Steel, Valve Construction Two-Piece, Average Surface Roughness (Ra) Not Applicable, Flow Pattern L Flow, 3-A Standard Compliance Not Rated, Ball Port Style Standard Port, Nominal Valve Size 2 in, Inlet Connection Size 2 in, Inlet Connection Gender Female, Inlet Connection Type NPT, Inlet Connection Entry Side, ANSI Flange Class Not Applicable, Outlet Connection Size - Side 1 2 in, Outlet Connection Gender - Side 1 Female
