  11. 3/4" Press x Hose Cap Brass Ball Valve Inline
Shop All Ball Valves
Milwaukee Valve

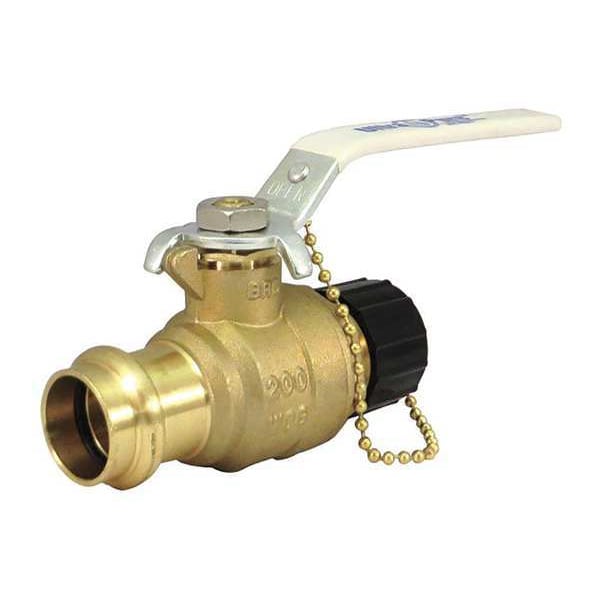

3/4" Press x Hose Cap Brass Ball Valve Inline

product price: $93.19
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Body Material Brass
  • Body Style Inline
  • Tube Size 3/4 in
  • Port Full
  • Stem Type Blowout Resistant
See all product information

Product Information

Dimensions

Pipe Size 3/4 in
Tube Size 3/4 in
Overall Length 3.5 in
Handle Height 2.01 in
Handle Length 4.33 in
Connection Size - Side 1 3/4 in
Nominal Valve Size 3/4 in
Connection Size - Side 2 3/4 in

Details

Body Material Brass
Body Style Inline
Port Full
Stem Type Blowout Resistant
Hose I.D. 3/4 in
Handle Material Zinc-Plated Steel
Handle Type Lever
Stem Material Brass
Ball Valve Basic Body Material Brass
Body Seal Material PTFE
Seat Material PTFE
Ball Valve Product Group Manual
Valve Structure 2-Piece
Ball Material Chrome-Plated Brass
Connection Type Press x Hose Cap
Standards IAPMO, NSF/ANSI 372
Compliance NSF 372/61
Max. Pressure 200 psi CWP
Temp. Range 0 Degrees to 250 Degrees F
Item Manual Two-Way Ball Valve
Seal Material PTFE
Sub-Category Brass Ball Valves
Valve Body Style Straight
Vacuum Service Rating -29.92 in Hg
Maximum Pressure - Operating 200 psi
NSF Certifications for Food and Drinking Water NSF 61
Coefficient of Volume (Cv) 40
Operating Temperature - Maximum 250 Degrees F
Color - Valve Handle White
Connection Type - Side 2 Press
Connection Gender - Side 2 Female
For Media Water
Ball Port Style Full Port
Valve Construction Two-Piece
Connection Type - Side 1 Press
3-A Standard Compliance Not Rated
Valve Ways 2-Way
Operating Temperature - Minimum 0 Degrees F
Connection Gender - Side 1 Female
Maximum Pressure - Combustible Gas Not Rated
Handle - Locking Non-Locking
Cleaned and Bagged Valve Cleaned and Bagged

Description

Manual Two-Way Ball Valve, Body Material Brass, For Media Water, Valve Construction Two-Piece, Nominal Valve Size 3/4 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 200 psi, Maximum Pressure - Steam Not Applicable, Maximum Pressure - Combustible Gas Not Rated, Vacuum Service Rating -29.92 in Hg, Ball Material Chrome-Plated Brass, Ball Port Style Full Port, Handle - Locking Non-Locking

Restrictions

  • *** This is a restricted item in CA, LA, MD, VT. It cannot be used for potable water applications.
