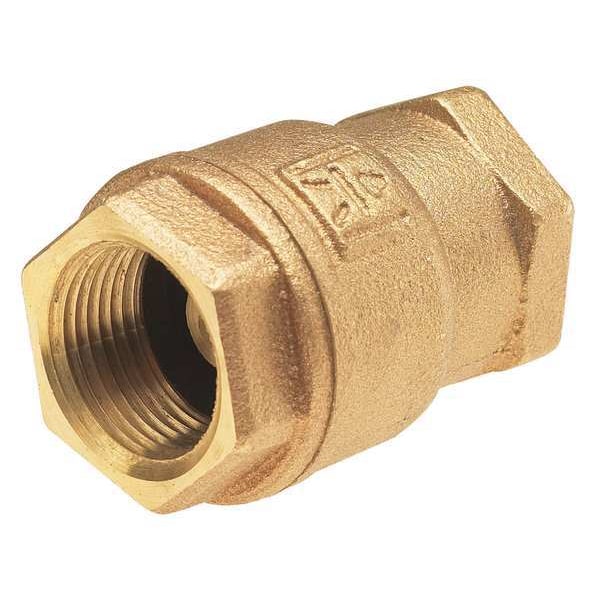

3/8" Threaded Low Lead Bronze Spring Check Valve

  • Mfr # UP548T 3/8

  • Zoro # G2119573

product price:
$
48.59
/ea

Key Features

Pipe Size
3/8"
Connection Type
Threaded
Connection
Threaded
Body Material
Cast Bronze
Pipe or Tube Size - Check Valves
3/8 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
UP548T 3/8
Zoro #
G2119573
UPC #
697988624733
Country of Origin
China
Connection Type
Threaded
Connection
Threaded
Body Material
Cast Bronze
Max. Temp. - Valves
353 Degrees F
Max. Temp.
353 Degrees F
Seat Material - Check Valves
Bronze
Item - Check Valves
Check Valve
Item
Low Lead Spring Check Valve
Cracking Pressure - Check Valves
0.750 to 1.000 psi
Application - Valves
General Purpose
Mounting Position
With Pressure Coming From Under the Disc
Material of Construction
Bronze
Flow Design
Single
Standards
NSF/ANSI 372
Max. Pressure
250 psig WOG
Spring Material - Check Valves
Bronze
Min. Temp. - Valves
-20 Degrees F
Body Material - Valves
Bronze
Sub-Category
Bronze
Mounting Orientation - Check Valves
Horizontal
Mechanism and Body Design
Inline Spring
Max. Water Pressure - Valves
250 psi @ 150 Degrees F
Max. Steam Pressure - Valves
Not Rated
Flow
2.5 gpm
Cracking Pressure
0.5 psi
Connection Type - Check Valves
FNPT x FNPT
Seal Material - Check Valves
Bronze
Flow - Valves
2.5 gpm
Full Flow - Valves
No
Spring Material
Bronze
Seal Material
PTFE
Seat Material
Bronze
Mounting Orientation
Horizontal
Type
Spring
Connection Gender - Side 2
Female
For Media
Gas, Oil, Water
Connection Type - Side 2
NPT
Connection Gender - Side 1
Female
Maximum Pressure - Steam
Not Rated
Vacuum Service Rating
Not Rated
Maximum Pressure - Operating
250 psi
Connection Type - Side 1
NPT
Valve Body Style
Inline
Includes Counterweight
No Counterweight
Operating Temperature - Maximum
353 Degrees F
NSF Certifications for Food and Drinking Water
NSF 61
Coefficient of Volume (Cv)
2.5
Check Mechanism
Swing
Operating Temperature - Minimum
-20 Degrees F
3-A Standard Compliance
Not Rated
Silent Check
Silent
Check Mechanism Material
PTFE
Valve Series
UP548T

Description

The MILWAUKEE VALVE UP548T is a 3/8 in low lead spring check valve with an inline bronze body and female NPT threaded connections on both ends. It is intended for general purpose service with gas, oil, and water and uses a spring-assisted check design for reverse-flow control applications. This valve is rated for horizontal mounting and features a spring-assisted closing design.

Key Features:

  • 3/8 in nominal valve size with 3/8 in FNPT x FNPT threaded connections
  • Cast bronze body with bronze seat and bronze spring
  • PTFE seal and PTFE check mechanism material
  • Inline spring body design with single flow path
  • Cracking pressure: 0.750 to 1.000 psi
  • Flow rate: 2.5 gpm; Cv: 2.5
  • Maximum pressure: 250 psig WOG; maximum water pressure: 250 psi at 150 degrees F
  • Operating temperature range: -20 degrees F to 353 degrees F
  • NSF 61 certified; meets NSF/ANSI 372
  • Overall length: 1.22 in; overall height: 1 31/32 in
