  11. Butterfly Valve, Lug, 2-1/2In, Ductile Iron
This item is Discontinued.

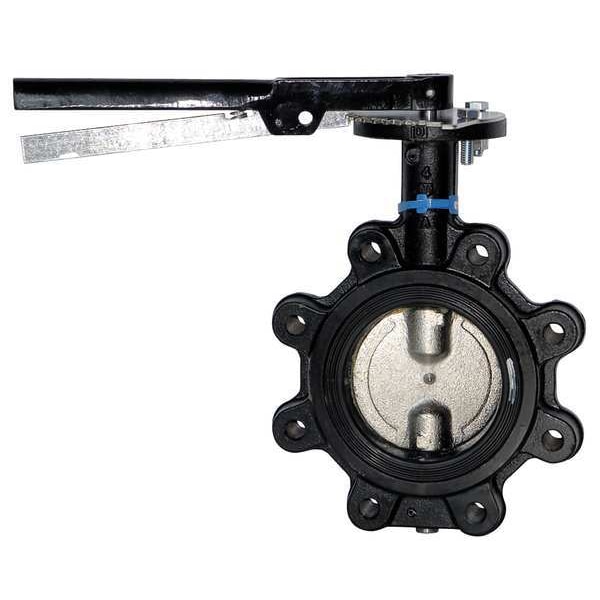

Milwaukee Valve Butterfly Valve, Lug, 2-1/2In, Ductile Iron UPML233E 2-1/2"

Butterfly Valve, Lug, 2-1/2In, Ductile Iron (Discontinued)

  • Mfr # UPML233E 2-1/2"
  • Zoro # G4715121
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
UPML233E 2-1/2"
Zoro #
G4715121
UPC #
697988663299
Country of Origin
United States

Dimensions

Pipe Size
2 1/2 in
Bolt Circle Dia.
5 1/2 in
Lug Dia.
5/8-11
Handle Length
11 in
Nominal Valve Size
2 1/2 in
Lug Diameter
5/8"-11

Details

Item
Butterfly Valve
Style
Lug
Body Material
Ductile Iron
Max. Water Pressure
200 psi
Handle Type
Lever
Number of Bolt Holes
4
Disc Material
Aluminum Bronze Alloy
Temp. Range
40 to 200 Degrees F
Liner Material
EPDM
Standards
ABS
Seal Material
EPDM
Vacuum Service Rating
Not Rated
Number of Flange Bolt Holes
4
Operating Temperature - Maximum
250 Degrees F
3-A Standard Compliance
Not Rated
Operating Temperature - Minimum
-30 Degrees F
Maximum Pressure - Operating
200 psi
Connection Type
Lug
For Media
Gas, Oil, Water
Manufacturer Warranty
1 yr
Stem Material
416 Stainless Steel
Includes Disc Position Indicator
Disc Position Indicator Included
Valve Series
M

Description

Butterfly Valve, Lug Style, Body Material Ductile Iron, Max. Water Pressure 200 psi, Pipe Size 2 1/2 in, Temp. Range 40 to 200 Degrees F, Liner Material EPDM, Disc Material Aluminum Bronze Alloy, Handle Type Lever, Number of Bolt Holes 4, Bolt Circle Dia. 5 1/2 in, Lug Dia. 5/8-11, Standards ABS
