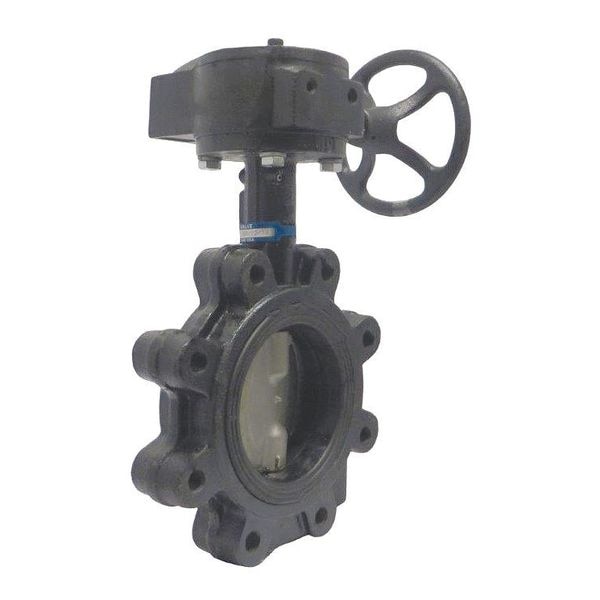

Butterfly Valve, Lug, Pipe Size 6 In

Mfr # ML332B
Zoro # G2594943

590.99

Free Shipping & Returns

Key Features

Style

Lug

Body Material

Ductile Iron

Pipe Size

6 in

Max. Water Pressure

200 psi

Handle Type

Gear Operated Handwheel

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: ML332B
Zoro #: G2594943
UPC #: 697988627024
Country of Origin: United States

Dimensions

Pipe Size: 6 in
Lug Dia.: 3/4-10
Bolt Circle Dia.: 9 1/2 in
Handle Diameter: 6 in
Nominal Valve Size: 6 in
Lug Diameter: 3/4"-10

Details

Item: Butterfly Valve
Style: Lug
Body Material: Ductile Iron
Max. Water Pressure: 200 psi
Handle Type: Gear Operated Handwheel
Disc Material: Ductile Iron
Number of Bolt Holes: 8
Liner Material: Buna-N
Temp. Range: 10 to 180 Degrees F
Standards: ABS
Seal Material: Buna-N
Operating Temperature - Minimum: 10 Degrees F
Number of Stop Positions: Unlimited
3-A Standard Compliance: Not Rated
Number of Flange Bolt Holes: 8
Operating Temperature - Maximum: 180 Degrees F
Maximum Pressure - Steam: Not Rated
For Media: Gas, Oil, Water
Disc Alignment: Concentric
Vacuum Service Rating: Not Rated
Coefficient of Volume (Cv): 2,020
Connection Type: Lug
Maximum Pressure - Operating: 200 psi
Includes Disc Position Indicator: Disc Position Indicator Included
Stem Material: 416 Stainless Steel
Manufacturer Warranty: 1 yr
Valve Series: M

Description

Butterfly Valve, Lug Style, Body Material Ductile Iron, Max. Water Pressure 200 psi, Pipe Size 6 in, Temp. Range 10 to 180 Degrees F, Liner Material Buna-N, Disc Material Ductile Iron, Handle Type Gear Operated Handwheel, Number of Bolt Holes 8, Bolt Circle Dia. 9 1/2 in, Lug Dia. 3/4-10, Standards ABS

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
