Shop MILWAUKEE VALVE

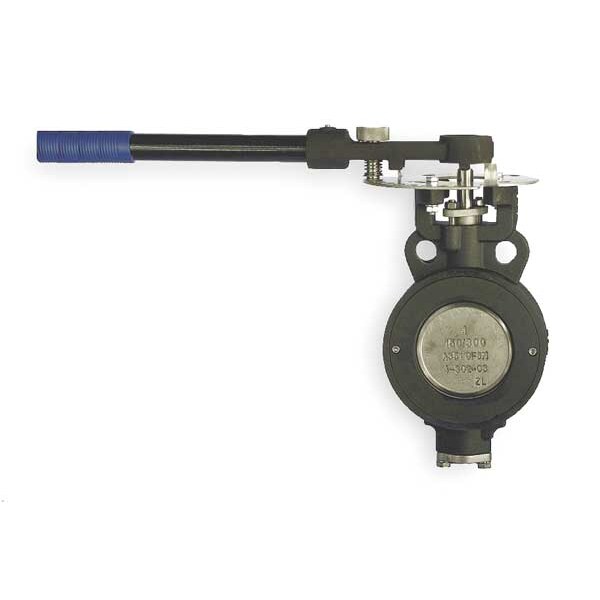

Butterfly Valve, Wafer, 3 In, RPTFE Liner

  • Mfr # HP1WCS4212 3"

  • Zoro # G3441593

product price:
$
987.99
/ea
Free Shipping & Returns

Key Features

Style
Wafer
Body Material
Carbon Steel
Pipe Size
3 in
Max. Water Pressure
285 psi
Max. Steam Pressure
150 psi
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HP1WCS4212 3"
Zoro #
G3441593
UPC #
697988606494
Country of Origin
China

Dimensions

Pipe Size
3 in
Bolt Circle Dia.
6 in
Lug Dia.
5/8-11
Nominal Valve Size
3 in
Lug Diameter
5/8"-11
Handle Length
16.87 in

Details

Item
Butterfly Valve
Style
Wafer
Body Material
Carbon Steel
Max. Water Pressure
285 psi
Max. Steam Pressure
150 psi
Handle Type
Lever
Standards
API 598, API 609B, ASME/ANSI B16.34, ASME/ANSI B16.5 or B16.47, ASTM A 351 CF8M SS, ASTM-A216 WCB CS, MSS SP-25, MSS SP-55, MSS SP-61, MSS SP-68
Number of Bolt Holes
4
Temp. Range
-20 to 400 Degrees F
Liner Material
RPFTE
Disc Material
CF8M Stainless Steel
Seal Material
FKM
Operating Temperature - Minimum
-20 Degrees F
Connection Type
Wafer
Coefficient of Volume (Cv)
263
Number of Flange Bolt Holes
4
Includes Disc Position Indicator
Disc Position Indicator Included
Handle - Locking
Locking
Operating Temperature - Maximum
400 Degrees F
Manufacturer Warranty
1 yr
Disc Alignment
Double-Offset
Maximum Pressure - Operating
285 psi
3-A Standard Compliance
Not Rated
Stem Material
17-4PH Stainless Steel
For Media
Water
Maximum Pressure - Steam
150 psi
Number of Stop Positions
10
Vacuum Service Rating
Not Rated
ANSI Flange Class
Class 150
Valve Series
HP

Description

Butterfly Valve, Wafer Style, Body Material Carbon Steel, Max. Water Pressure 285 psi, Max. Steam Pressure 150 psi, Pipe Size 3 in, Temp. Range -20 to 400 Degrees F, Liner Material RPFTE, Disc Material CF8M Stainless Steel, Handle Type Lever, Number of Bolt Holes 4, Bolt Circle Dia. 6 in, Lug Dia. 5/8-11, Standards API 598, API 609B, ASME/ANSI B16.34, ASME/ANSI B16.5 or B16.47, ASTM A 351 CF8M SS, ASTM-A216 WCB CS, MSS SP-25, MSS SP-55, MSS SP-61, MSS SP-68
