  11. Butterfly Valve, Wafer, 8 In., Carbon Steel

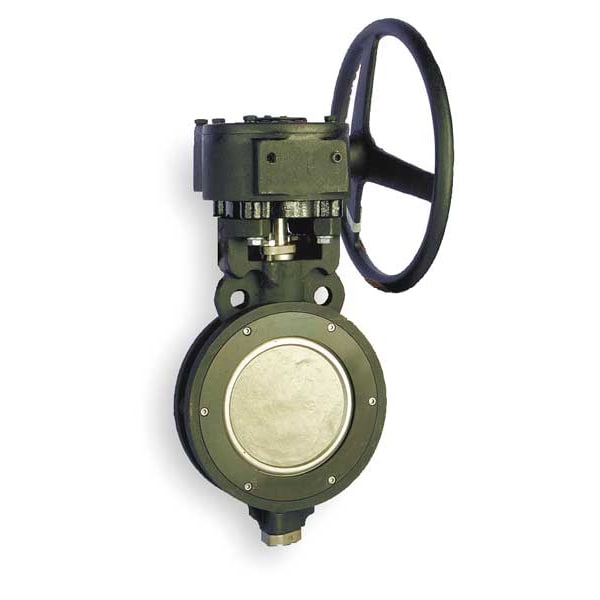

Milwaukee Valve Butterfly Valve, Wafer, 8 In., Carbon Steel HP1WCS4213 8" - main

Butterfly Valve, Wafer, 8 In., Carbon Steel

  • Mfr # HP1WCS4213 8"

  • Zoro # G8995165

product price: $2,247.99
/ea
Free Shipping & Returns

Key Features

Style
Wafer
Body Material
Carbon Steel
Pipe Size
8 in
Max. Water Pressure
285 psi
Max. Steam Pressure
150 psi
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HP1WCS4213 8"
Zoro #
G8995165
UPC #
697988606531
Country of Origin
China

Dimensions

Pipe Size
8 in
Lug Dia.
3/4-10
Bolt Circle Dia.
11 3/4 in
Handle Diameter
12 in
Nominal Valve Size
8 in
Lug Diameter
3/4"-10

Details

Item
Butterfly Valve
Style
Wafer
Body Material
Carbon Steel
Max. Water Pressure
285 psi
Max. Steam Pressure
150 psi
Handle Type
Gear Operated Handwheel
Temp. Range
-20 to 400 Degrees F
Standards
API 598, API 609B, ASME/ANSI B16.34, ASME/ANSI B16.5 or B16.47, ASTM A 351 CF8M SS, ASTM-A216 WCB CS, MSS SP-25, MSS SP-55, MSS SP-61, MSS SP-68
Liner Material
RPFTE
Number of Bolt Holes
8
Disc Material
CF8M Stainless Steel
Seal Material
FKM
Stem Material
17-4PH Stainless Steel
Disc Alignment
Double-Offset
Includes Disc Position Indicator
Disc Position Indicator Included
Coefficient of Volume (Cv)
2,060
For Media
Water
ANSI Flange Class
Class 150
Manufacturer Warranty
1 yr
Vacuum Service Rating
Not Rated
Operating Temperature - Maximum
400 Degrees F
Operating Temperature - Minimum
-20 Degrees F
3-A Standard Compliance
Not Rated
Maximum Pressure - Steam
150 psi
Number of Stop Positions
Unlimited
Maximum Pressure - Operating
285 psi
Number of Flange Bolt Holes
8
Connection Type
Wafer
Valve Series
HP

Description

Butterfly Valve, Wafer Style, Body Material Carbon Steel, Max. Water Pressure 285 psi, Max. Steam Pressure 150 psi, Pipe Size 8 in, Temp. Range -20 to 400 Degrees F, Liner Material RPFTE, Disc Material CF8M Stainless Steel, Handle Type Gear Operated Handwheel, Number of Bolt Holes 8, Bolt Circle Dia. 11 3/4 in, Lug Dia. 3/4-10, Standards API 598, API 609B, ASME/ANSI B16.34, ASME/ANSI B16.5 or B16.47, ASTM A 351 CF8M SS, ASTM-A216 WCB CS, MSS SP-25, MSS SP-55, MSS SP-61, MSS SP-68
