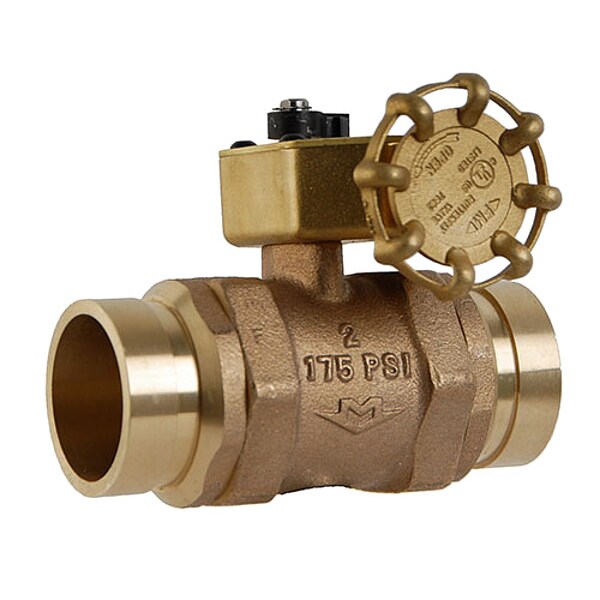

Control Valve, Fire Sprinkler, 2 In
Mfr # BBVSC100 2
Zoro # G0392104
product price:Â $570.99
/ea
Free Shipping & Returns
Key Features
Body Material
Bronze
Pipe Size
2 in
Max. Water Pressure
175 psi
Handle Type
Gear Operated Handwheel
Standards
cULus, FM, NYC BSA Approved, UL/FM
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
- MFR #
- BBVSC100 2
- Zoro #
- G0392104
- UPC #
- 697988581173
- Country of Origin
- United States
Dimensions
- Pipe Size
- 2 in
- Nominal Valve Size
- 2 in
Details
- Item
- Butterfly Disc Valve
- Body Material
- Bronze
- Max. Water Pressure
- 175 psi
- Handle Type
- Gear Operated Handwheel
- Standards
- cULus, FM, NYC BSA Approved, UL/FM
- Temp. Range
- -30 to 250 Degrees F
- Disc Material
- 304 Stainless Steel
- Liner Material
- FKM
- Seal Material
- EPDM
- Operating Temperature - Minimum
- -30 Degrees F
- Vacuum Service Rating
- Not Rated
- Maximum Pressure - Operating
- 175 psi
- For Media
- Water
- 3-A Standard Compliance
- Not Rated
- Connection Type
- Grooved
- Manufacturer Warranty
- 1 yr
- Operating Temperature - Maximum
- 250 Degrees F
- Includes Disc Position Indicator
- Disc Position Indicator Included
- Valve Series
- Butterball Slo-Close
Description
Butterfly Disc Valve, Body Material Bronze, Max. Water Pressure 175 psi, Pipe Size 2 in, Temp. Range -30 to 250 Degrees F, Liner Material FKM, Disc Material 304 Stainless Steel, Handle Type Gear Operated Handwheel, Standards cULus, FM, NYC BSA Approved, UL/FM
Restrictions
This is a restricted item in the USA. It cannot be used for potable water applications.
