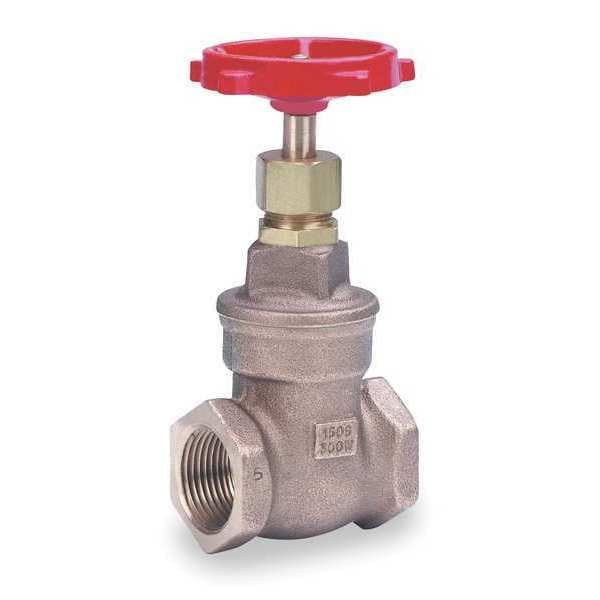

Gate Valve, Class 150, 3 In.

Mfr # 1140 3
Zoro # G2019665

$643.78

Free Shipping & Returns

Free Shipping on orders over $50

Free 30-Day Returns

Key Features

Pipe Size 3"
Connection Type FNPT
Body Material Bronze
Valve Class Class 150
Max. Cold Working Pressure - CWP 300 psi

See all product information

Brand Milwaukee Valve
MFR # 1140 3
Zoro # G2019665
UPC #
697988580138
Country of Origin United States
Category Gate Valves

Dimensions

Pipe Size	3"
Pipe Size - Valves	3"
Inlet to Outlet Length	4 5/8 in
Handle Height	10.47 in
Handle Diameter	5.25 in
Overall Length	4.63 in
Nominal Valve Size	3 in
Connection Size - Side 1	3 in
Connection Size - Side 2	3 in

Details

Connection Type	FNPT
Body Material	Bronze
Item	Gate Valve
Valve Class	Class 150
Max. Cold Working Pressure - CWP	300 psi
Standards	MSS SP-80
Handle Type	Hand Wheel
Max. Water Pressure - CWP	300 psi
Stem Material	Bronze
Max. Working Steam Pressure - WSP	150 psi
Top of Handle to Inlet Center	10 15/32 in
Valve Stem Type	Non-Rising
Body Material - Valves	Bronze
Handle Material	Malleable Iron
Valve Max. Fluid Temp.	365 Degrees F
Wedge Material	Bronze
Bonnet Style	Threaded
Seal Material	Bronze
Stem Type	Non-Rising
Maximum Pressure - Steam	150 psi
Wedge Style	Solid
Operating Temperature - Maximum	365 Degrees F
Seat Material	Bronze
Coefficient of Volume (Cv)	536
Bonnet Material	Bronze
Connection Gender - Side 1	Female
Operating Temperature - Minimum	-40 Degrees F
Connection Type - Side 1	NPT
Connection Type - Side 2	NPT
Connection Gender - Side 2	Female
Maximum Pressure - Operating	300 psi
For Media	Gas, Oil, Water

Description

Gate Valve, For Media Gas, Oil, Water, Body Material Bronze, Nominal Valve Size 3 in, ANSI Flange Class Not Applicable, Maximum Pressure - Operating 300 psi, Maximum Pressure - Steam 150 psi, Coefficient of Volume (Cv) 536, Stem Type Non-Rising, Stem Material Bronze, Wedge Style Solid, Wedge Material Bronze, Seat Material Bronze, Seal Material Bronze, Handle Type Wheel, Bonnet Material Bronze, Bonnet Style Screw-In, Connection Gender - Side 1 Female, Connection Type - Side 1 NPT
