  11. Gate Valve, Class 200, 2 In.
Shop All Gate Valves
Milwaukee Valve

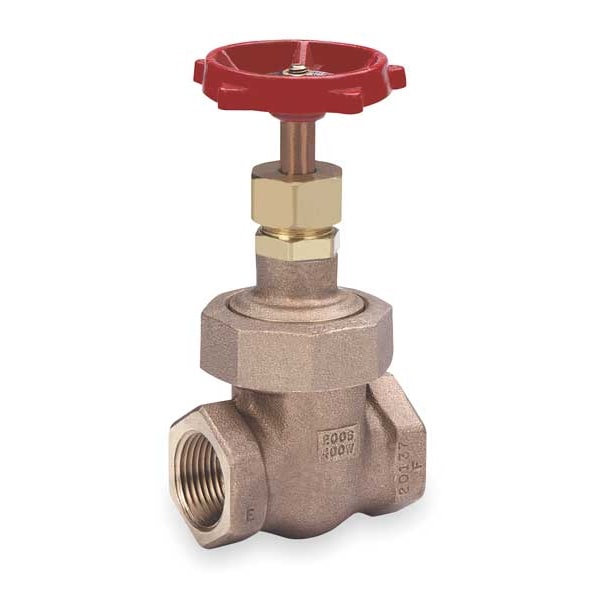

Gate Valve, Class 200, 2 In.

product price: $485.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Pipe Size 2"
  • Connection Type FNPT
  • Body Material Bronze
  • Stem Material Bronze
  • Max. Working Steam Pressure - WSP 200 psi
See all product information

Product Information

Dimensions

Pipe Size 2"
Pipe Size - Valves 2"
Inlet to Outlet Length 3-3/4"
Overall Length 3.75 in
Connection Size - Side 2 2 in
Connection Size - Side 1 2 in
Nominal Valve Size 2 in
Handle Diameter 4.25 in
Handle Height 7.69 in

Details

Connection Type FNPT
Body Material Bronze
Item Gate Valve
Stem Material Bronze
Max. Working Steam Pressure - WSP 200 psi
Body Material - Valves Bronze
Valve Stem Type Non-Rising
Handle Material Malleable Iron
Max. Water Pressure - CWP 400 psi
Wedge Material Bronze
Handle Type Hand Wheel
Bonnet Style Union
Valve Class Class 200
Valve Max. Fluid Temp. 550 Degrees F
Top of Handle to Inlet Center 7-11/16"
Max. Cold Working Pressure - CWP 400 psi
Standards MSS SP-80
Seal Material Bronze
Stem Type Non-Rising
Seat Material 304 Stainless Steel
Connection Gender - Side 2 Female
Wedge Style Solid
Maximum Pressure - Steam 200 psi
Connection Type - Side 2 NPT
Connection Type - Side 1 NPT
Operating Temperature - Minimum -40 Degrees F
Bonnet Material Bronze
Connection Gender - Side 1 Female
For Media Gas, Oil, Water
Coefficient of Volume (Cv) 230
Maximum Pressure - Operating 400 psi
Operating Temperature - Maximum 550 Degrees F

Description

Gate Valve, For Media Gas, Oil, Water, Body Material Bronze, Nominal Valve Size 2 in, ANSI Flange Class Not Applicable, Maximum Pressure - Operating 400 psi, Maximum Pressure - Steam 200 psi, Coefficient of Volume (Cv) 230, Stem Type Non-Rising, Stem Material Bronze, Wedge Style Solid, Wedge Material Bronze, Seat Material 304 Stainless Steel, Seal Material Bronze, Handle Type Wheel, Bonnet Material Bronze, Bonnet Style Union, Connection Gender - Side 1 Female, Connection Type - Side 1 NPT
