  11. Gate Valve, Class 200, 2 In., FNPT
Shop All Gate Valves
Milwaukee Valve

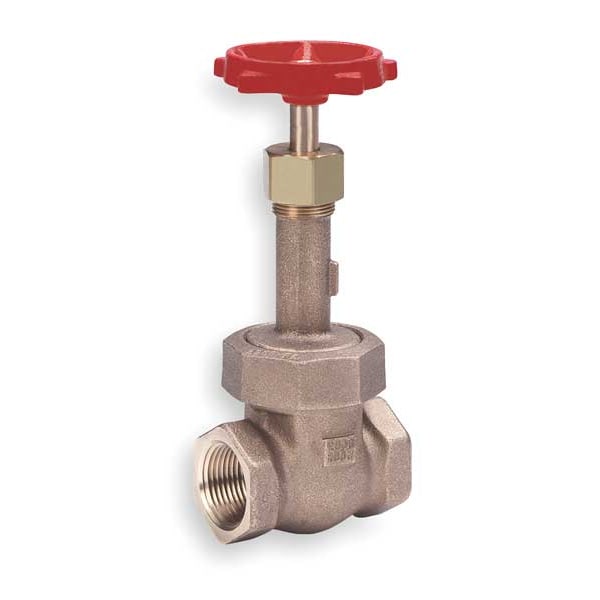

Gate Valve, Class 200, 2 In., FNPT

product price: $368.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Pipe Size 2"
  • Connection Type FNPT
  • Body Material Bronze
  • Top of Handle to Inlet Center 11 3/4 in
  • Wedge Material Bronze
See all product information

Product Information

Dimensions

Pipe Size 2"
Inlet to Outlet Length 3 3/4 in
Pipe Size - Valves 2"
Overall Length 3.75 in
Connection Size - Side 2 2 in
Handle Height 11.75 in
Handle Diameter 4.25 in
Connection Size - Side 1 2 in
Nominal Valve Size 2 in

Details

Connection Type FNPT
Body Material Bronze
Item Gate Valve
Top of Handle to Inlet Center 11 3/4 in
Wedge Material Bronze
Bonnet Style Union
Handle Material Malleable Iron
Max. Cold Working Pressure - CWP 400 psi
Body Material - Valves Bronze
Valve Max. Fluid Temp. 550 Degrees F
Max. Water Pressure - CWP 400 psi
Handle Type Hand Wheel
Valve Stem Type Rising
Standards MSS SP-80
Valve Class Class 200
Max. Working Steam Pressure - WSP 200 psi
Stem Material Bronze
Stem Type Rising
Seal Material Bronze
Seat Material Bronze
Maximum Pressure - Operating 400 psi
Operating Temperature - Minimum -40 Degrees F
Coefficient of Volume (Cv) 230
Connection Gender - Side 2 Female
Operating Temperature - Maximum 550 Degrees F
Bonnet Material Bronze
Wedge Style Solid
For Media Gas, Oil, Water
Maximum Pressure - Steam 200 psi
Connection Type - Side 1 NPT
Connection Gender - Side 1 Female
Connection Type - Side 2 NPT

Description

Gate Valve, For Media Gas, Oil, Water, Body Material Bronze, Nominal Valve Size 2 in, ANSI Flange Class Not Applicable, Maximum Pressure - Operating 400 psi, Maximum Pressure - Steam 200 psi, Coefficient of Volume (Cv) 230, Stem Type Rising, Stem Material Bronze, Wedge Style Solid, Wedge Material Bronze, Seat Material Bronze, Seal Material Bronze, Handle Type Wheel, Bonnet Material Bronze, Bonnet Style Union, Connection Gender - Side 1 Female, Connection Type - Side 1 NPT
