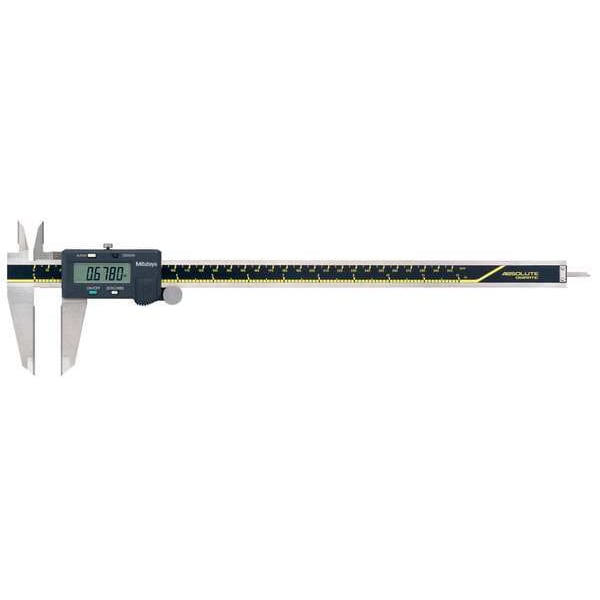

Mitutoyo Absolute Digital Caliper, 0 to 12 In 500-166-30CAL - main

Absolute Digital Caliper, 0 to 12 In

  • Mfr # 500-166-30CAL

  • Zoro # G8526953

product price: $889.99
/ea
Free Shipping & Returns

Key Features

Caliper Material
Stainless Steel
Caliper Range
0-12 in /0-300mm
Accuracy
+/- 0.0015 in
SPC Output
No
Resolution
0.0005 in/0.01 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
500-166-30CAL
Zoro #
G8526953
UPC #
-
Country of Origin
Japan

Dimensions

Jaw Depth
2 33/64 in
Measures Outside Dimension
Yes
Battery Size
SR44
Dimension Type
Inch/Metric
Measures Inside Dimension
Yes
Measures Depth
Yes
Jaw Depth - Upper Jaw
55/64 in
Depth Rod Shape
Rectangular

Details

Item
4-Way Digital Caliper
Caliper Material
Stainless Steel
Caliper Range
0-12 in /0-300mm
Accuracy
+/- 0.0015 in
SPC Output
No
Resolution
0.0005 in/0.01 mm
IP Rating
Not Rated
Absolute Positioning
Yes
Features
Carbide Tipped ID and OD Jaws
Long Form Calibration Certificate
Yes
Caliper Grouping
Digital Caliper
Standards
TUV Rheinland
Jaw Shape
Standard
Measurements
4-Way
Jaw Material
Stainless Steel
Minimum Measurement - mm
0 mm
Graduations - Upper Scale
12 in
Range
0 in to 12 in, 0 to 300 mm
Graduations - Lower Scale
0 in
Display Type
LCD
Maximum Measurement - Inch
12 in
Coolant Resistant
No
Included Certification
Long Form Calibration Certificate Traceable to NIST
Minimum Measurement - Fractional Inch
0 in
Includes Case
Yes
Repeatability
0.0005 in/0.01 mm
Measures Step
Yes
Functions
Origin-Set, Zero, Data Output, Inch/mm, Alarm: Low Voltage, Counting Value Composition Error
Linear Encoder Type
Electrostatic Capacitance
Water Resistant
No
Dust Resistant
Yes
Maximum Measurement - mm
300 mm
Left-Handed Operation
No
With Locking Nut
Yes
Jaw Actuation Type
Thumb Wheel
Minimum Measurement - Inch
0 in
Case Type
Plastic Case
Includes Battery
Yes
Inches Measured - Minimum
0 in
Battery Type
SR44
Product Type
Digital Caliper
Inches Measured - Maximum
12 in
Data Output Type
Cabled
Millimeters Measured - Minimum
0 mm
Measurement Type
Depth, Inside, Outside, Step
Millimeters Measured - Maximum
300 mm

Description

The MITUTOYO 500-166-30 W/CERT Absolute Digital Caliper is the perfect tool for measuring parts. The stainless steel caliper has a carbide tipped ID and OD jaw, which makes it ideal for use in both harsh and non-harsh environments. Featuring 0 to 12 in /0 to 300 mm range, this 4-way digital caliper can measure inside, outside, depth and step measurements. With a resolution of 0.0005 in/0.01 mm, you will be able to take accurate measurements with ease. The SPC output allows you to connect the caliper directly to your PC or printer. If you are looking for an accurate digital caliper that will provide precise results every time, then the MITUTOYO 500-166 is the one for you.
