Shop MITUTOYO

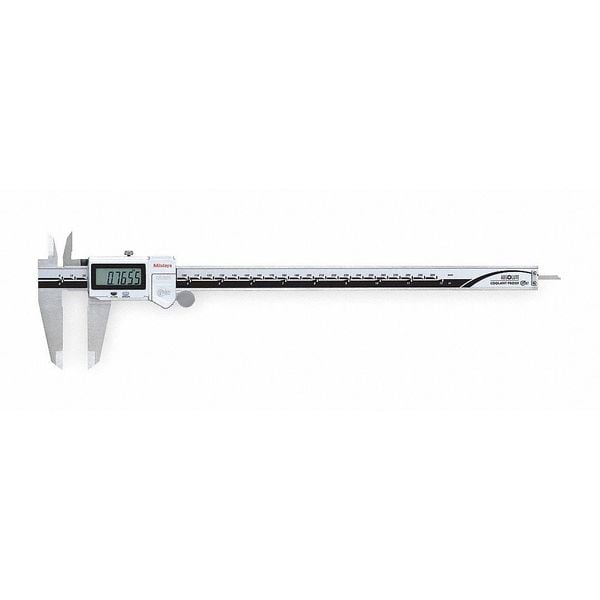

Absolute Digital Caliper, 0 to 12 In

  • Mfr # 500-754-20

  • Zoro # G1995016

product price:  $529.99
/ea
Free Shipping & Returns

Key Features

Caliper Material
Stainless Steel
Caliper Range
0-12 in /0-300mm
Accuracy
+/- 0.0015 in
SPC Output
No
Resolution
0.0005 in/0.01 mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
500-754-20
Zoro #
G1995016
UPC #
-
Country of Origin
Japan

Dimensions

Jaw Depth
2 33/64 in
Measures Inside Dimension
Yes
Depth Rod Shape
Rectangular
Dimension Type
Inch/Metric
Jaw Depth - Upper Jaw
55/64 in
Battery Size
SR44
Measures Outside Dimension
Yes
Measures Depth
Yes

Details

Item
4-Way Digital Caliper
Caliper Material
Stainless Steel
Caliper Range
0-12 in /0-300mm
Accuracy
+/- 0.0015 in
SPC Output
No
Resolution
0.0005 in/0.01 mm
IP Rating
IP67
Absolute Positioning
Yes
Features
Coolant Proof, Rolling Thumb Wheel, Control Buttons on Face, Origin, Inch/mm, Absolute Scales
Caliper Grouping
Digital Caliper
Long Form Calibration Certificate
No
Standards
TUV Rheinland
Left-Handed Operation
No
Minimum Measurement - Inch
0 in
Range
0 in to 12 in, 0 to 300 mm
Functions
Origin-Set, Zero, Auto Turn On/Off, Data Output, Inch/mm, Alarm: Low Voltage, Counting Value Composition Error
With Locking Nut
Yes
Display Type
LCD
Water Resistant
Yes
Maximum Measurement - Inch
12 in
Includes Battery
Yes
Non-Magnetic
No
Minimum Measurement - Fractional Inch
0 in
Jaw Actuation Type
Thumb Wheel
Linear Encoder Type
Electromagnetic Induction
Case Type
Plastic Case
Coolant Resistant
Yes
Maximum Measurement - mm
300 mm
Dust Resistant
Yes
Minimum Measurement - mm
0 mm
Jaw Shape
Standard
Includes Case
Yes
Measurements
4-Way
Repeatability
0.0005 in/0.01 mm
Included Certification
TUV Rheinland Certification; Certificate of Inspection
Measures Step
Yes
Jaw Material
Stainless Steel
Millimeters Measured - Maximum
300 mm
Inches Measured - Minimum
0 in
Data Output Type
Cabled
Inches Measured - Maximum
12 in
Battery Type
SR44
Product Type
Digital Caliper
Measurement Type
Depth, Inside, Outside, Step
Millimeters Measured - Minimum
0 mm

Description

4-Way Digital Caliper, Caliper Range 0-12 in /0-300mm, Resolution 0.0005 in/0.01 mm, IP Rating IP67, SPC Output No, Accuracy +/- 0.0015 in, Caliper Material Stainless Steel, Absolute Positioning Yes, Jaw Depth 2 33/64 in, Long Form Calibration Certificate No, Features Coolant Proof, Rolling Thumb Wheel, Control Buttons on Face, Origin, Inch/mm, Absolute Scales, Standards TUV Rheinland
