  13. Absolute Digital Caliper, 0 to 12 In

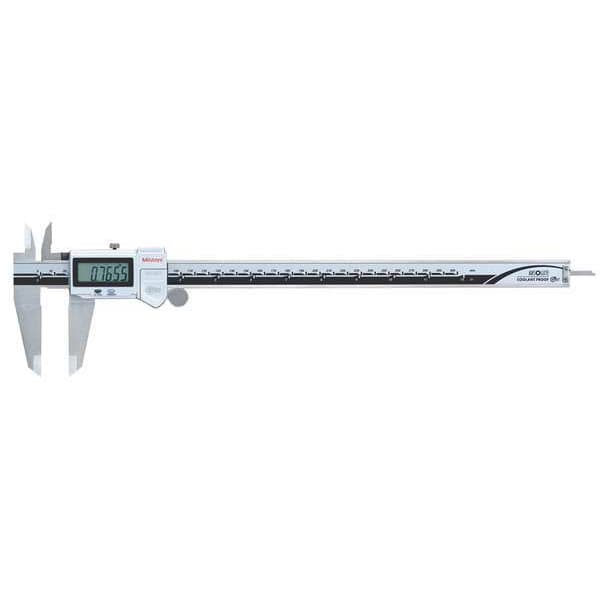

Mitutoyo Absolute Digital Caliper, 0 to 12 In 500-764-20 - main

Absolute Digital Caliper, 0 to 12 In

  • Mfr # 500-764-20

  • Zoro # G6174497

product price: $649.99
/ea
Free Shipping & Returns

Key Features

Caliper Material
Stainless Steel
Caliper Range
0-12 in /0-300mm
Accuracy
+/- 0.0015 in
SPC Output
Yes
Resolution
0.0005 in/0.01 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
500-764-20
Zoro #
G6174497
UPC #
-
Country of Origin
Japan

Dimensions

Jaw Depth
2 33/64 in
Depth Rod Shape
Rectangular
Jaw Depth - Upper Jaw
55/64 in
Battery Size
SR44
Dimension Type
Inch/Metric
Measures Outside Dimension
Yes
Measures Inside Dimension
Yes
Measures Depth
Yes

Details

Item
4-Way Digital Caliper
Caliper Material
Stainless Steel
Caliper Range
0-12 in /0-300mm
Accuracy
+/- 0.0015 in
SPC Output
Yes
Resolution
0.0005 in/0.01 mm
IP Rating
IP67
Absolute Positioning
Yes
Features
Coolant Proof
Caliper Grouping
Digital Caliper
Long Form Calibration Certificate
No
Standards
TUV Rheinland
Jaw Shape
Standard
Range
0 in to 12 in, 0 to 300 mm
Jaw Actuation Type
Thumb Wheel
Dust Resistant
Yes
With Locking Nut
Yes
Included Certification
TUV Rheinland Certification; Certificate of Inspection
Coolant Resistant
Yes
Graduations - Upper Scale
12 in
Data Output Type
Cabled
Includes Case
Yes
Minimum Measurement - Fractional Inch
0 in
Water Resistant
Yes
Functions
Origin-Set, Zero, Auto Turn On/Off, Data Output, Inch/mm, Alarm: Low Voltage, Counting Value Composition Error
Case Type
Plastic Case
Non-Magnetic
No
Maximum Measurement - mm
300 mm
Repeatability
0.0005 in/0.01 mm
Includes Battery
Yes
Jaw Material
Stainless Steel
Data Output Connection Type
Digimatic
Display Type
LCD
Linear Encoder Type
Electromagnetic Induction
Compatible SPC Cable
Mfr. No. 05CZA624; Mfr. No. 05CZA625
Measurements
4-Way
Measures Step
Yes
Minimum Measurement - mm
0 mm
Minimum Measurement - Inch
0 in
Graduations - Lower Scale
0 in
Left-Handed Operation
No
Maximum Measurement - Inch
12 in
Millimeters Measured - Minimum
0 mm
Millimeters Measured - Maximum
300 mm
Inches Measured - Minimum
0 in
Battery Type
SR44
Inches Measured - Maximum
12 in
Product Type
Digital Caliper
Data Output Wired Connection
Digimatic
Measurement Type
Depth, Inside, Outside, Step

Description

The Mitutoyo 500-764-20 Absolute Digital Caliper is a high-quality measuring device that offers accuracy and durability. It's ideal for all types of mechanical, industrial and manufacturing applications. The 4-way digital caliper has a range of 0 in to 12 in, or 0 to 300 mm. Its stainless steel body features IP67 protection against dust and water ingress. With a resolution of 0.0005 in/0.01 mm, this digital caliper has an accuracy of +/-0.0015 in.. It comes with SPC output, which allows you to download measurements into your computer via USB cable. When it comes to precision measurements on the go, you will definitely want the Mitutoyo 500-764-20 Absolute Digital Caliper.
