  13. Absolute Digital Caliper, 0 to 18 In

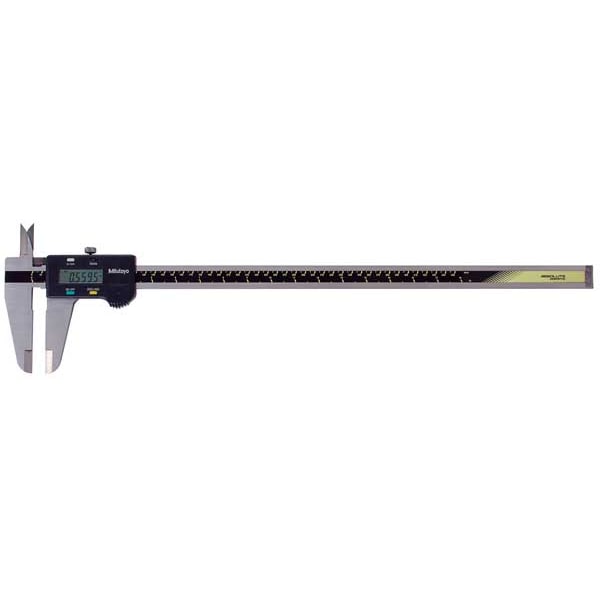

Mitutoyo Absolute Digital Caliper, 0 to 18 In 500-505-10CAL - main

Absolute Digital Caliper, 0 to 18 In

  • Mfr # 500-505-10CAL

  • Zoro # G6130031

product price: $1,030.99
/ea
Free Shipping & Returns

Key Features

Caliper Material
Stainless Steel
Accuracy
+/- 0.0020 in
SPC Output
Yes
Resolution
0.0005 in/0.01 mm
Jaw Depth
3 35/64 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
500-505-10CAL
Zoro #
G6130031
UPC #
603908245155
Country of Origin
Japan

Dimensions

Jaw Depth
3 35/64 in
Measures Depth
No
Depth Rod Shape
Rectangular
Jaw Depth - Upper Jaw
1 1/2 in
Dimension Type
Inch/Metric
Battery Size
SR44
Measures Inside Dimension
Yes
Measures Outside Dimension
Yes

Details

Item
Long Range Digital Caliper
Caliper Material
Stainless Steel
Caliper Range
0-18 in /0-450mm
Accuracy
+/- 0.0020 in
SPC Output
Yes
Resolution
0.0005 in/0.01 mm
IP Rating
Not Rated
Absolute Positioning
Yes
Features
Without Thumb Roller
Long Form Calibration Certificate
Yes
Caliper Grouping
Digital Caliper
Standards
TUV Rheinland
Functions
Origin-Set, Zero, Data Output, Inch/mm, Alarm: Low Voltage, Counting Value Composition Error
Data Output Connection Type
Digimatic
Data Output Type
Cabled
Coolant Resistant
No
Minimum Measurement - mm
0 mm
Minimum Measurement - Fractional Inch
0 in
Jaw Material
Stainless Steel
Range
0 in to 18 in, 0 to 450 mm
Maximum Measurement - Inch
18 in
Case Type
Plastic Case
Includes Battery
Yes
Graduations - Lower Scale
0 in
Measures Step
Yes
Repeatability
0.0005 in/0.01 mm
Water Resistant
No
With Locking Nut
Yes
Maximum Measurement - mm
450 mm
Compatible SPC Cable
Mfr. No. 959149; Mfr. No. 959150
Included Certification
Long Form Calibration Certificate Traceable to NIST
Graduations - Upper Scale
18 in
Left-Handed Operation
No
Jaw Shape
Standard
Jaw Actuation Type
Slide
Dust Resistant
Yes
Measurements
Outside, Inside, Step
Minimum Measurement - Inch
0 in
Display Type
LCD
Linear Encoder Type
Electrostatic Capacitance
Includes Case
Yes
Millimeters Measured - Maximum
450 mm
Data Output Wired Connection
Digimatic
Battery Type
SR44
Millimeters Measured - Minimum
0 mm
Inches Measured - Minimum
0 in
Inches Measured - Maximum
18 in
Product Type
Digital Caliper
Measurement Type
Inside, Outside, Step

Description

Long Range Digital Caliper, Caliper Range 0-18 in /0-450mm, Resolution 0.0005 in/0.01 mm, IP Rating Not Rated, SPC Output Yes, Accuracy +/- 0.0020 in, Caliper Material Stainless Steel, Absolute Positioning Yes, Jaw Depth 3 35/64 in, Long Form Calibration Certificate Yes, Features Without Thumb Roller, Standards TUV Rheinland
