  13. Absolute Digital Caliper, 0 to 24 In

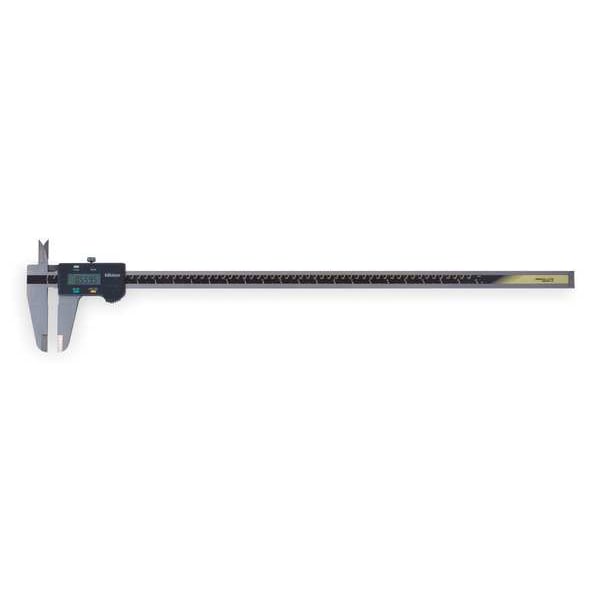

Mitutoyo Absolute Digital Caliper, 0 to 24 In 500-506-10 - main

Absolute Digital Caliper, 0 to 24 In

  • Mfr # 500-506-10

  • Zoro # G3422623

product price: $1,149.99
/ea
Free Shipping & Returns

Key Features

Caliper Material
Stainless Steel
Accuracy
+/- 0.0020 in
SPC Output
Yes
Resolution
0.0005 in/0.01 mm
Jaw Depth
3 35/64 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
500-506-10
Zoro #
G3422623
UPC #
-
Country of Origin
Japan

Dimensions

Jaw Depth
3 35/64 in
Dimension Type
Inch/Metric
Measures Depth
Yes
Battery Size
SR44
Jaw Depth - Upper Jaw
1 1/2 in
Measures Outside Dimension
Yes
Measures Inside Dimension
Yes
Depth Rod Shape
Rectangular

Details

Item
Long Range Digital Caliper
Caliper Material
Stainless Steel
Caliper Range
0-24 in /0-600mm
Accuracy
+/- 0.0020 in
SPC Output
Yes
Resolution
0.0005 in/0.01 mm
IP Rating
Not Rated
Absolute Positioning
Yes
Features
Rolling Thumb Wheel, Control Buttons on Face, Zero, On/Off and Inch/mm, Absolute Scales
Caliper Grouping
Digital Caliper
Long Form Calibration Certificate
No
Standards
TUV Rheinland
Graduations - Upper Scale
24 in
Repeatability
0.0005 in/0.01 mm
Jaw Shape
Standard
Dust Resistant
Yes
With Locking Nut
Yes
Data Output Type
Cabled
Maximum Measurement - Inch
24 in
Coolant Resistant
No
Minimum Measurement - Fractional Inch
0 in
Compatible SPC Cable
Mfr. No. 959149; Mfr. No. 959150
Case Type
Plastic Case
Maximum Measurement - mm
600 mm
Included Certification
Certificate of Inspection
Display Type
LCD
Range
0 in to 24 in, 0 to 600 mm
Functions
Origin-Set, Zero, Data Output, Inch/mm, Alarm: Low Voltage, Counting Value Composition Error
Includes Battery
Yes
Water Resistant
No
Minimum Measurement - Inch
0 in
Graduations - Lower Scale
0 in
Measurements
4-Way
Left-Handed Operation
No
Measures Step
Yes
Minimum Measurement - mm
0 mm
Jaw Material
Stainless Steel
Includes Case
Yes
Data Output Connection Type
Digimatic
Linear Encoder Type
Electrostatic Capacitance
Jaw Actuation Type
Slide
Millimeters Measured - Maximum
600 mm
Battery Type
SR44
Product Type
Digital Caliper
Millimeters Measured - Minimum
0 mm
Inches Measured - Minimum
0 in
Data Output Wired Connection
Digimatic
Inches Measured - Maximum
24 in
Measurement Type
Depth, Inside, Outside, Step

Description

The Mitutoyo 500-506-10 Absolute Digital Caliper is a digital caliper that allows you to work accurately. It can measure both in inches and millimeters, with an accuracy of +/-0.002". The 0 to 24 inch range of the Mitutoyo 500-506-10 digital caliper means it can be used for various projects. Its stainless steel jaws are durable and easy to clean. The jaw material is also made from stainless steel, so it won't rust or corrode over time. With its rolling thumb wheel, control buttons on the face, zero, on/off and inch/mm functions, this digital caliper provides accurate measurements every time. For your next project requiring precise measurements, equip yourself with the Mitutoyo 500-506-10 Absolute Digital Caliper.
