  13. Absolute Digital Caliper, 0 to 24 In

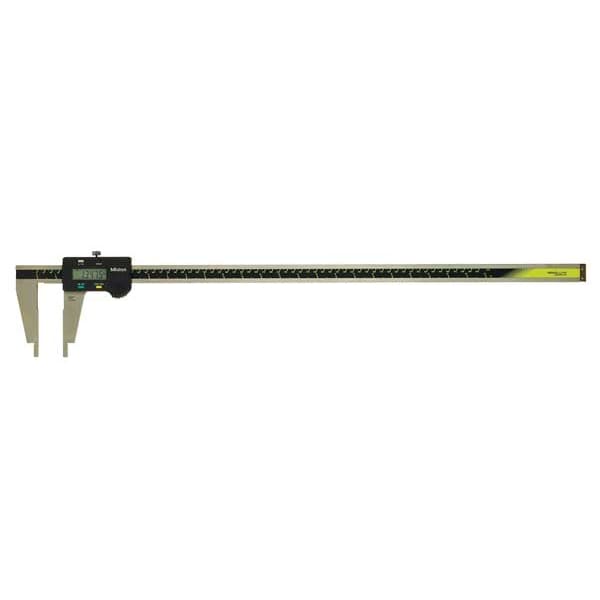

Mitutoyo Absolute Digital Caliper, 0 to 24 In 550-225-10 - main

Absolute Digital Caliper, 0 to 24 In

  • Mfr # 550-225-10

  • Zoro # G2876072

product price: $1,429.99
/ea
Free Shipping & Returns

Key Features

Caliper Material
Stainless Steel
Caliper Range
0-24 in /0-600mm
Accuracy
+/- 0.0020 in
SPC Output
Yes
Resolution
0.0005 in/0.01 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
550-225-10
Zoro #
G2876072
UPC #
603908245209
Country of Origin
Japan

Dimensions

Jaw Depth
3 15/16 in
Depth Rod Shape
Rectangular
Dimension Type
Inch/Metric
Measures Outside Dimension
Yes
Measures Inside Dimension
Yes
Battery Size
SR44
Measures Depth
No

Details

Item
Nib Jaw Digital Caliper
Caliper Material
Stainless Steel
Caliper Range
0-24 in /0-600mm
Accuracy
+/- 0.0020 in
SPC Output
Yes
Resolution
0.0005 in/0.01 mm
IP Rating
Not Rated
Absolute Positioning
Yes
Features
Control Buttons on Face, Zero, On/Off and Inch/mm, Absolute Scales
Caliper Grouping
Digital Caliper
Long Form Calibration Certificate
No
Standards
TUV Rheinland
Compatible SPC Cable
Mfr. No. 959149; Mfr. No. 959150
Water Resistant
No
With Locking Nut
Yes
Functions
Origin-Set, Zero, Data Output, Inch/mm, Alarm: Low Voltage, Counting Value Composition Error
Measurements
Outside, Inside
Graduations - Lower Scale
0 in
Jaw Material
Stainless Steel
Minimum Measurement - Fractional Inch
0 in
Left-Handed Operation
No
Data Output Connection Type
Digimatic
Repeatability
0.0005 in/0.01 mm
Data Output Type
Cabled
Jaw Shape
Nib-Style
Measures Step
No
Case Type
Plastic Case
Maximum Measurement - mm
600 mm
Linear Encoder Type
Electrostatic Capacitance
Jaw Actuation Type
Slide
Minimum Measurement - mm
0 mm
Includes Battery
Yes
Minimum Measurement - Inch
0 in
Display Type
LCD
Maximum Measurement - Inch
24 in
Coolant Resistant
No
Range
0 in to 24 in, 0 to 600 mm
Dust Resistant
Yes
Includes Case
Yes
Graduations - Upper Scale
24 in
Battery Type
SR44
Inches Measured - Minimum
0 in
Data Output Wired Connection
Digimatic
Millimeters Measured - Minimum
0 mm
Measurement Type
Inside, Outside
Millimeters Measured - Maximum
600 mm
Inches Measured - Maximum
24 in
Product Type
Digital Caliper

Description

Nib Jaw Digital Caliper, Caliper Range 0-24 in /0-600mm, Resolution 0.0005 in/0.01 mm, IP Rating Not Rated, SPC Output Yes, Accuracy +/- 0.0020 in, Caliper Material Stainless Steel, Absolute Positioning Yes, Jaw Depth 3 15/16 in, Long Form Calibration Certificate No, Features Control Buttons on Face, Zero, On/Off and Inch/mm, Absolute Scales, Standards TUV Rheinland
