  13. Absolute Digital Caliper, 0 to 8 In
Mitutoyo Absolute Digital Caliper, 0 to 8 In 500-734-20CAL - main

Absolute Digital Caliper, 0 to 8 In

  • Mfr # 500-734-20CAL

  • Zoro # G5944005

product price: $529.99
/ea
Free Shipping & Returns

Key Features

Caliper Material
Stainless Steel
Caliper Range
0-8 in /0-200mm
Accuracy
+/- 0.0010 in
SPC Output
No
Resolution
0.0005 in/0.01 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
500-734-20CAL
Zoro #
G5944005
UPC #
-
Country of Origin
Japan

Dimensions

Jaw Depth
1 31/32 in
Depth Rod Shape
Rectangular
Measures Inside Dimension
Yes
Jaw Depth - Upper Jaw
25/32 in
Battery Size
SR44
Measures Outside Dimension
Yes
Measures Depth
Yes
Dimension Type
Inch/Metric

Details

Item
Carbide Jaw 4-Way Digital Caliper
Caliper Material
Stainless Steel
Caliper Range
0-8 in /0-200mm
Accuracy
+/- 0.0010 in
SPC Output
No
Resolution
0.0005 in/0.01 mm
IP Rating
IP67
Absolute Positioning
Yes
Features
Coolant Proof, Carbide Tipped ID and OD Jaws
Caliper Grouping
Digital Caliper
Long Form Calibration Certificate
Yes
Standards
TUV Rheinland
Maximum Measurement - Inch
8 in
Functions
Origin-Set, Zero, Auto Turn On/Off, Data Output, Inch/mm, Alarm: Low Voltage, Counting Value Composition Error
Measurements
4-Way
Minimum Measurement - Fractional Inch
0 in
Minimum Measurement - mm
0 mm
Maximum Measurement - mm
200 mm
Water Resistant
Yes
Includes Case
Yes
Linear Encoder Type
Electromagnetic Induction
Range
0 in to 8 in, 0 to 200 mm
With Locking Nut
Yes
Graduations - Upper Scale
8 in
Jaw Material
Carbide-Tipped
Left-Handed Operation
No
Coolant Resistant
Yes
Case Type
Plastic Case
Dust Resistant
Yes
Minimum Measurement - Inch
0 in
Jaw Actuation Type
Thumb Wheel
Non-Magnetic
No
Includes Battery
Yes
Display Type
LCD
Included Certification
TUV Rheinland Certification, Long Form Calibration Certificate Traceable to NIST
Measures Step
Yes
Graduations - Lower Scale
0 in
Jaw Shape
Standard
Repeatability
0.0005 in/0.01 mm
Inches Measured - Maximum
8 in
Measurement Type
Depth, Inside, Outside, Step
Millimeters Measured - Minimum
0 mm
Product Type
Digital Caliper
Battery Type
SR44
Data Output Type
Cabled
Millimeters Measured - Maximum
200 mm
Inches Measured - Minimum
0 in

Description

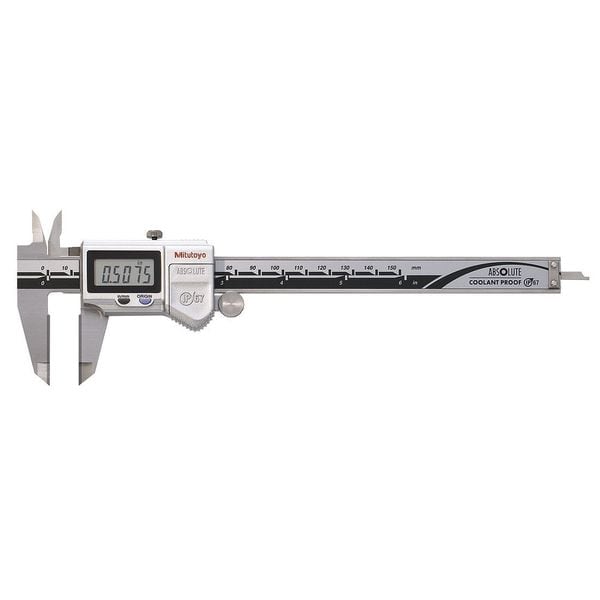

If you need to measure small parts or do precision work, the Mitutoyo 500-734-20 w/cert Absolute Digital Caliper is the tool for you. This digital caliper has a 0 to 8 in range and 0 to 200 mm range. The IP67 rating means it is waterproof and dustproof. It also has a stainless steel body, with carbide tipped jaws that can be used on ID and OD parts. The 0.0005 in/0.01 mm resolution ensures accurate measurements, while the +/-0.001 in accuracy means there will be no mistakes made with your readings. This digital caliper will provide all of the necessary measurements needed for precision work or measuring small parts accurately.
