  13. Absolute Digital Caliper, 0 to 8 In

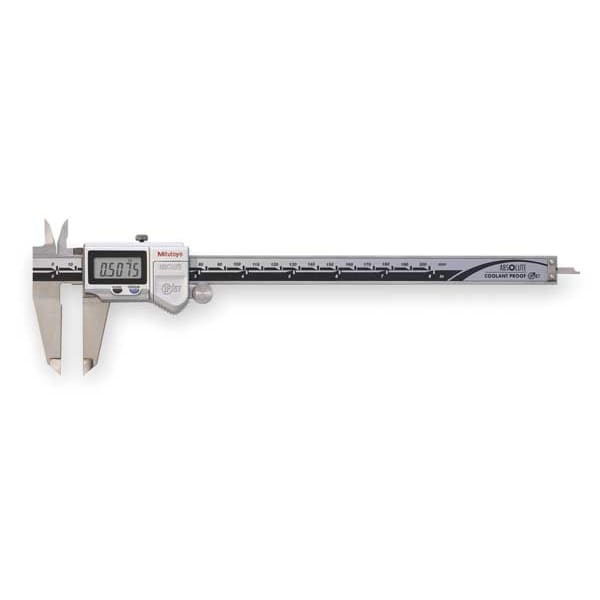

Mitutoyo Absolute Digital Caliper, 0 to 8 In 500-753-20 - main

Absolute Digital Caliper, 0 to 8 In

  • Mfr # 500-753-20

  • Zoro # G1427833

product price: $312.99
/ea
Free Shipping & Returns

Key Features

Caliper Material
Stainless Steel
Caliper Range
0-8 in /0-200mm
Accuracy
+/- 0.0010 in
SPC Output
No
Resolution
0.0005 in/0.01 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
500-753-20
Zoro #
G1427833
UPC #
-
Country of Origin
Japan

Dimensions

Jaw Depth
1 31/32 in
Jaw Depth - Upper Jaw
25/32 in
Dimension Type
Inch/Metric
Depth Rod Shape
Rectangular
Measures Outside Dimension
Yes
Measures Inside Dimension
Yes
Measures Depth
Yes
Battery Size
SR44

Details

Item
4-Way Digital Caliper
Caliper Material
Stainless Steel
Caliper Range
0-8 in /0-200mm
Accuracy
+/- 0.0010 in
SPC Output
No
Resolution
0.0005 in/0.01 mm
IP Rating
IP67
Absolute Positioning
Yes
Features
Coolant Proof, Rolling Thumb Wheel, Auto On/Off, Control Buttons on Face, Origin/Zero and Inch/mm, Absolute Scales, Waterproof, Oilproof
Long Form Calibration Certificate
No
Caliper Grouping
Digital Caliper
Standards
TUV Rheinland
Coolant Resistant
Yes
Case Type
Plastic Case
Range
0 in to 8 in, 0 to 200 mm
Left-Handed Operation
No
Minimum Measurement - Fractional Inch
0 in
Minimum Measurement - Inch
0 in
Included Certification
TUV Rheinland Certification; Certificate of Inspection
Maximum Measurement - Inch
8 in
Includes Case
Yes
Linear Encoder Type
Electromagnetic Induction
Minimum Measurement - mm
0 mm
Maximum Measurement - mm
200 mm
Non-Magnetic
No
With Locking Nut
Yes
Dust Resistant
Yes
Functions
Origin-Set, Zero, Auto Turn On/Off, Data Output, Inch/mm, Alarm: Low Voltage, Counting Value Composition Error
Measurements
4-Way
Repeatability
0.0005 in/0.01 mm
Jaw Shape
Standard
Jaw Material
Stainless Steel
Includes Battery
Yes
Water Resistant
Yes
Display Type
LCD
Measures Step
Yes
Graduations - Upper Scale
6 in
Jaw Actuation Type
Thumb Wheel
Graduations - Lower Scale
0 in
Inches Measured - Maximum
8 in
Inches Measured - Minimum
0 in
Millimeters Measured - Minimum
0 mm
Data Output Type
Cabled
Millimeters Measured - Maximum
200 mm
Battery Type
SR44
Measurement Type
Depth, Inside, Outside, Step
Product Type
Digital Caliper

Description

4-Way Digital Caliper, Caliper Range 0-8 in /0-200mm, Resolution 0.0005 in/0.01 mm, IP Rating IP67, SPC Output No, Accuracy +/- 0.0010 in, Caliper Material Stainless Steel, Absolute Positioning Yes, Jaw Depth 1 31/32 in, Long Form Calibration Certificate No, Features Coolant Proof, Rolling Thumb Wheel, Auto On/Off, Control Buttons on Face, Origin/Zero and Inch/mm, Absolute Scales, Waterproof, Oilproof, Standards TUV Rheinland
