  13. Absolute Digital Caliper, 0 to 8 In

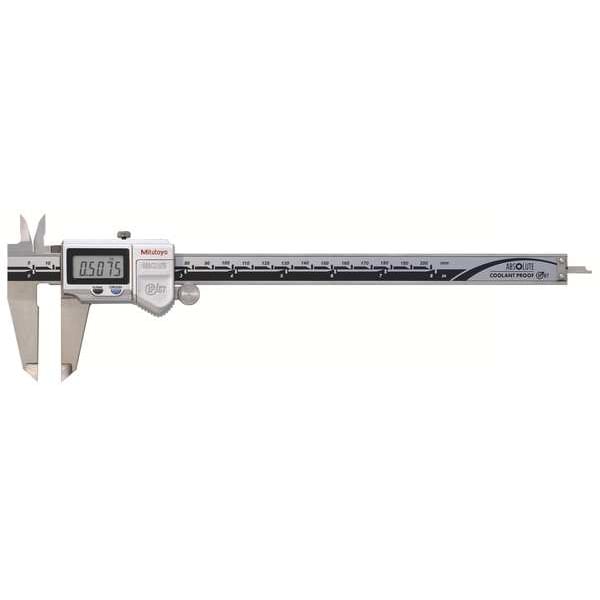

Mitutoyo Absolute Digital Caliper, 0 to 8 In 500-753-20CAL - main

Absolute Digital Caliper, 0 to 8 In

  • Mfr # 500-753-20CAL

  • Zoro # G2960115

product price: $379.99
/ea
Free Shipping & Returns

Key Features

Caliper Material
Stainless Steel
Caliper Range
0-8 in /0-200mm
Accuracy
+/- 0.0010 in
SPC Output
No
Resolution
0.0005 in/0.01 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
500-753-20CAL
Zoro #
G2960115
UPC #
-
Country of Origin
Japan

Dimensions

Jaw Depth
1 31/32 in
Jaw Depth - Upper Jaw
25/32 in
Measures Outside Dimension
Yes
Dimension Type
Inch/Metric
Battery Size
SR44
Depth Rod Shape
Rectangular
Measures Depth
Yes
Measures Inside Dimension
Yes

Details

Item
4-Way Digital Caliper
Caliper Material
Stainless Steel
Caliper Range
0-8 in /0-200mm
Accuracy
+/- 0.0010 in
SPC Output
No
Resolution
0.0005 in/0.01 mm
IP Rating
IP67
Absolute Positioning
Yes
Features
Coolant Proof, Rolling Thumb Wheel, Auto On/Off, Control Buttons on Face, Origin/Zero and Inch/mm, Absolute Scales, Waterproof, Oilproof
Long Form Calibration Certificate
Yes
Caliper Grouping
Digital Caliper
Standards
TUV Rheinland
Includes Case
Yes
Graduations - Upper Scale
8 in
Display Type
LCD
Minimum Measurement - Fractional Inch
0 in
Jaw Material
Stainless Steel
With Locking Nut
Yes
Measurements
4-Way
Included Certification
TUV Rheinland Certification, Long Form Calibration Certificate Traceable to NIST
Measures Step
Yes
Jaw Actuation Type
Thumb Wheel
Minimum Measurement - mm
0 mm
Graduations - Lower Scale
0 in
Water Resistant
Yes
Range
0 in to 8 in, 0 to 200 mm
Repeatability
0.0005 in/0.01 mm
Linear Encoder Type
Electromagnetic Induction
Functions
Origin-Set, Zero, Auto Turn On/Off, Data Output, Inch/mm, Alarm: Low Voltage, Counting Value Composition Error
Maximum Measurement - Inch
8 in
Non-Magnetic
No
Dust Resistant
Yes
Minimum Measurement - Inch
0 in
Case Type
Plastic Case
Maximum Measurement - mm
200 mm
Coolant Resistant
Yes
Left-Handed Operation
No
Includes Battery
Yes
Jaw Shape
Standard
Battery Type
SR44
Millimeters Measured - Maximum
200 mm
Data Output Type
Cabled
Product Type
Digital Caliper
Inches Measured - Minimum
0 in
Inches Measured - Maximum
8 in
Millimeters Measured - Minimum
0 mm
Measurement Type
Depth, Inside, Outside, Step

Description

This Mitutoyo 500-753-20CERT Absolute Digital Caliper is the perfect tool for measuring your parts. It has a range of 0 in to 8 in, making it easy to measure small and large objects. The 4-way digital caliper is accurate to +/-0.001 in and features a stainless steel construction for durability. It also has an IP67 rating which means that it can be submerged in water up to 1 meter deep without being damaged. It comes with a TUV Rheinland certification as well as a long form calibration certificate traceable to NIST, ensuring that you get quality results every time you use this caliper. The Mitutoyo 500-753-20CERT Absolute Digital Caliper is the ideal tool for measuring your parts accurately and precisely.
