  13. Dial Indicator, 0 to 1 In, 0-50-0
Shop All Dial Indicators
Mitutoyo

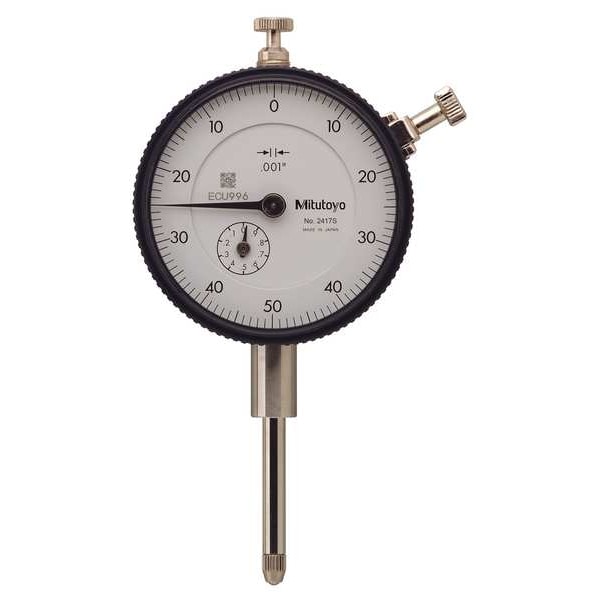

Dial Indicator, 0 to 1 In, 0-50-0

product price: $127.99
/ea
Free Shipping & Returns
Delivery to commercial address only
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Graduations 0.001 in
  • Range 0 in to 1 in
  • Features #4-48 UNF Thread, 3/8 in Stem
  • Accuracy +/-0.001 in
  • Contact Point Style Carbide Ball
See all product information

Product Information

Dimensions

Contact Point Dia. 3 mm
Dial Size 57 mm
Stem Thread Size M2.5 x 0.45
Dimension Type Inch
Stem Dia. 0.375 in

Details

Graduations 0.001 in
Range 0 in to 1 in
Features #4-48 UNF Thread, 3/8 in Stem
Accuracy +/-0.001 in
Contact Point Style Carbide Ball
Reading Balanced
Bearing Type Plain
Dial Reading 0-50-0
Bezel Lock No
Range per Revolution 0.1 in
Item Dial Indicator - Lug Back
Back Type Lug
AGD No. AGD 2
Dial Color White
Standards AGD, ANSI
Long Form Calibration Certificate No
Minimum Measurement - Inch 0 in
Maximum Measurement - Inch 1 in
Number of Indicators 1
Includes Case No
Included Certification Certificate of Inspection
Contact Point Shape Ball
Max. Measuring Force 1.8 N
Shock Resistant No
AGD Number AGD 2
Case Type Box
Operation Type Plunger
Non-Magnetic Yes

Description

When you need to take accurate measurements, the 2417S Dial Indicator from Mitutoyo is the tool for you. This dial indicator has a range of 0 in. to 1 in.. The accuracy on this white dial indicator is +/-0.001 in. With graduations of 0.001 in., it also has a scale of 0-50-0 and offers readability at every 0.001 increment. It features a 3/8" stem with #4-48 UNF thread and weighs only 4 oz.. When it comes to getting accurate measurements, you will definitely want to equip yourself with the 2417S Dial Indicator from Mitutoyo.
