Shop MITUTOYO

Dial Indicator, 0 to 3 In, 0-100

  • Mfr # 4887A-19

  • Zoro # G2083952

product price:  $561.99
/ea
Free Shipping & Returns

Key Features

Graduations
0.001 in
Range
0 in to 3 in
Features
Glare Free Scratch Resistant Crystal
Accuracy
0.001 in, 0.005 in
Includes
Limit Pin; Clamp
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
4887A-19
Zoro #
G2083952
UPC #
603908406501
Country of Origin
Japan

Dimensions

Dial Size
92 mm
Contact Point Dia.
3 mm
Stem Thread Size
#4-48
Dimension Type
Inch
Stem Dia.
0.375 in
Contact Point Diameter
3 mm
Stem Diameter
0.375 in

Details

Graduations
0.001 in
Range
0 in to 3 in
Features
Glare Free Scratch Resistant Crystal
Accuracy
0.001 in, 0.005 in
Includes
Limit Pin; Clamp
Reading
Continuous
Bearing Type
Jeweled
Dial Reading
0-100
Standards
AGD, ANSI
Item
Dial Indicator - Lug Back
Bezel Lock
No
AGD No.
AGD 4
Range per Revolution
0.1 in
Dial Color
White
Back Type
Lug
Long Form Calibration Certificate
No
Maximum Measurement - Inch
3 in
Number of Indicators
1
Minimum Measurement - Inch
0 in
Includes Case
No
Included Certification
Certificate of Inspection
Shock Resistant
Yes
Max. Measuring Force
3 N
AGD Number
AGD 4
Non-Magnetic
Yes
Case Type
Box
Contact Point Shape
Curved
Operation Type
Back Plunger
Product Type
Dial Indicator - Lug Back
Maximum Measuring Force
3 N
Inches Measured - Maximum
3 in
Inches Measured - Minimum
0 in

Description

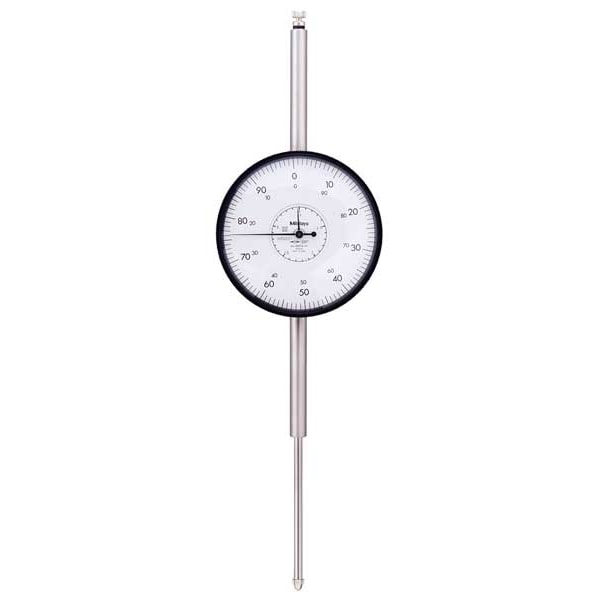

The Mitutoyo 4887S-19 Dial Indicator is the ideal tool for measuring, setting and checking. With a 0 to 3 in range, you can use it on almost any application. The dial indicator has a 0.001 in graduation for accuracy, with an overall resolution of +/-0.005 in. It features a continuous reading dial that goes from 0 to 100 with white markings on a back plunger design. The crystal is glare free and scratch resistant so you don't have to worry about it being damaged while working on your project. This Mitutoyo Dial Indicator is the essential measuring tool you need for precision work.
