Shop MITUTOYO

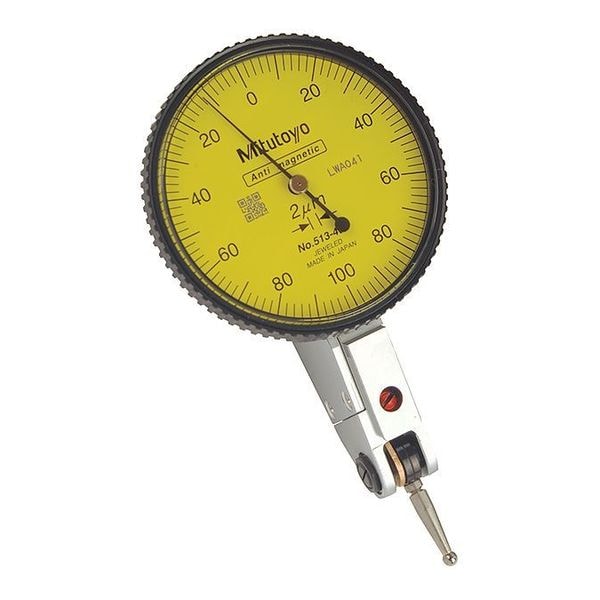

Dial Test Indicator, 40mm Dial, Yellow

  • Mfr # 513-405-10H

  • Zoro # G1607142

product price:
$
223.99
/ea
Free Shipping & Returns

Key Features

Graduations
0.01 mm
Range
0 mm to 0.2 mm
Features
High Sensitivity and Quick Response, No-Clutch Structure for Automatic Reversal of Measuring Direction
Accuracy
+/- 0.0005 in
Includes
8 mm Stem, Knurled Clamp Ring
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
513-405-10H
Zoro #
G1607142
UPC #
603908127680
Country of Origin
Japan

Dimensions

Contact Point Length
14.7mm
Dial Size
40 mm
Contact Point Dia.
2 mm
Stem Thread Size
M8 x 1
Stylus Length
14.7 mm
Dimension Type
Metric
Contact Point Diameter
2 mm

Details

Graduations
0.01 mm
Range
0 mm to 0.2 mm
Features
High Sensitivity and Quick Response, No-Clutch Structure for Automatic Reversal of Measuring Direction
Accuracy
+/- 0.0005 in
Includes
8 mm Stem, Knurled Clamp Ring
Indicator Style
Horizontal
Contact Point Style
Carbide
Reading
Balanced
Bearing Type
Jeweled
Series
Mitutoyo 513 Standard
Dial Reading
0-100-0
Range per Revolution
0.2 mm
Dial Color
Yellow
Item
Horizontal Dial Test Indicator
Standards
ASME, ISO DIS 9493S, JIS B 7533
Long Form Calibration Certificate
No
Mounting Style
Dovetail
Number of Indicators
1
Test Indicator Style
Horizontal
Operation Type
Lever-Style
Maximum Measurement - mm
0.2 mm
Minimum Measurement - mm
0 mm
Contact Point Material
Carbide
Non-Magnetic Tip
Yes
Product Type
Horizontal Dial Test Indicator
Millimeters Measured - Maximum
0.2 mm
Millimeters Measured - Minimum
0 mm

Description

This Mitutoyo 513 Standard Dial Test Indicator has a range of 0 mm to 0.2 mm, with graduations of 0.002 mm and an accuracy of +/-0.0005 in.. The dial test indicator measures 40mm in diameter and is yellow in color. It also has a balanced dial reading of 0-100-0, so it's easy to read the measurements on the dial. You can easily take measurements with this lever style dial test indicator because it comes with a large grip area that you can grab onto. If you're looking for an accurate measuring device that's simple to use, then the Mitutoyo 513 Standard Dial Test Indicator is what you need.
