  13. Dial Test Indicator, Hori, 0 to 0.016 In

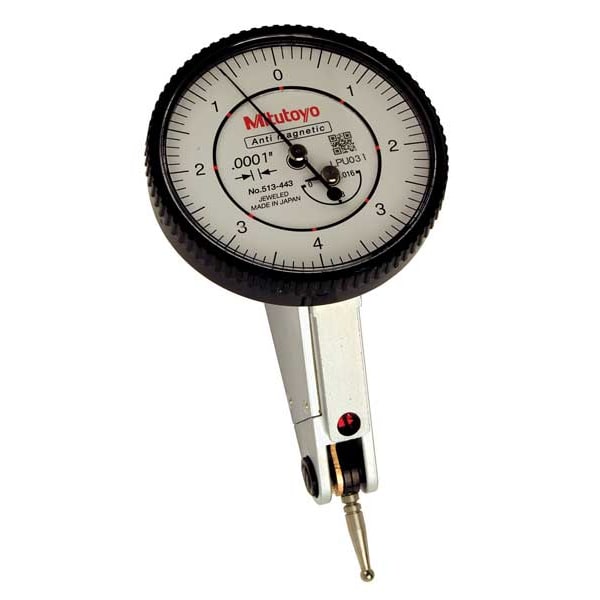

Mitutoyo Dial Test Indicator, Hori, 0 to 0.016 In 513-443-10A - main

Dial Test Indicator, Hori, 0 to 0.016 In

  • Mfr # 513-443-10A

  • Zoro # G2298222

product price: $259.99
/ea
Free Shipping & Returns

Key Features

Graduations
0.0005 in
Range
0 in to 0.016 in
Features
Jeweled Bearings, Glare Free Scratch Resistant Crystal, Finish Satin Chrome
Accuracy
+/- 0.0002 in
Includes
Carbide Point, Stem
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
513-443-10A
Zoro #
G2298222
UPC #
603908220503
Country of Origin
Japan

Dimensions

Dial Size
40 mm
Contact Point Dia.
0.078125 in
Dimension Type
Inch
Stem Thread Size
M8 x 1
Stylus Length
15 mm
Contact Point Diameter
0.078125 in

Details

Graduations
0.0005 in
Range
0 in to 0.016 in
Features
Jeweled Bearings, Glare Free Scratch Resistant Crystal, Finish Satin Chrome
Accuracy
+/- 0.0002 in
Includes
Carbide Point, Stem
Indicator Style
Horizontal
Contact Point Style
Carbide
Reading
Balanced
Bearing Type
Jeweled
Series
Mitutoyo 513 Tilted Face
Dial Reading
0-4-0
Item
Tilted-Face Dial Test Indicator
Dial Color
White
Range per Revolution
0.008 in
Standards
AGD
Long Form Calibration Certificate
No
Number of Indicators
1
Max. Measuring Force
0.3 N
Maximum Measurement - Inch
0.016 in
Includes Case
Yes
Contact Point Shape
Ball
Operation Type
Lever-Style
Includes Dovetail Mount Attachments
Yes
Mounting Style
Dovetail
Included Certification
Inspection Certificate
Test Indicator Style
Tilted Face
Non-Conductive Tip
No
Minimum Measurement - Inch
0 in
Non-Magnetic Tip
Yes
Contact Point Material
Carbide
Product Type
Tilted-Face Dial Test Indicator
Maximum Measuring Force
0.3 N
Inches Measured - Minimum
0 in
Inches Measured - Maximum
0.016 in

Description

The MITUTOYO 513-443-10A Dial Test Indicator is the high-quality tool that will meet the demands of the job. This tilting face dial test indicator has jewelled bearings, a glare free scratch resistant crystal and a satin chrome finish. It features 0 in to 0.016 in range, 0.0001 graduations and +/-0.0002 accuracy. The dial size is 40 mm and it comes with balanced dial reading at 0 - 4 - 0. Its white dial color makes it easy to read measurements even in low light conditions. The MITUTOYO 513-443-10A Dial Test Indicator is the reliable instrument you need for making precise measurements.
