  13. Screw Pitch Gage, 4 to 56/0.5 to 6mm
Shop All Hole, Drill, Bore, and Wire Gauges
Mitutoyo

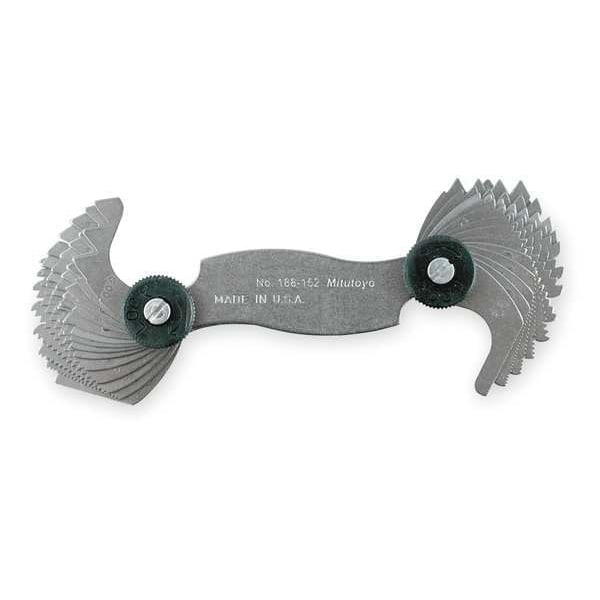

Screw Pitch Gage, 4 to 56/0.5 to 6mm

product price: $30.69
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Range of Pitches per Inch 4 to 56 TPI
  • Thread Angle (Deg.) 60
  • Locking Device Yes
  • Number of Leaves 28
  • Range of Pitches per Millimeter 0.5 to 6
See all product information

Product Information

Details

Item Thread Pitch Gauge Set
Range of Pitches per Inch 4 to 56 TPI
Thread Angle (Deg.) 60
Locking Device Yes
Number of Leaves 28
Range of Pitches per Millimeter 0.5 to 6
Leaves Narrow Design With Flattened Teeth
Construction Steel Case With Folding Leaves
Type Unified and Metric
Included Threads per Inch 4 TPI, 6 TPI, 8 TPI, 10 TPI, 11 TPI, 11 1/2 TPI, 12 TPI, 13 TPI, 20 TPI, 28 TPI, 32 TPI, 40 TPI, 56 TPI
Thread Type Metric
Included Thread Pitch - mm 0.05 mm, 0.75 mm, 1 mm, 1.25 mm, 1.5 mm, 1.75 mm, 2 mm, 2.5 mm, 3 mm, 3.5 mm, 4 mm, 4.5 mm, 5 mm, 6 mm
Gauge Material Steel
Minimum TPI 0.05 mm
Minimum Thread Pitch - mm 4
Thread Angle 60 Degrees
Maximum Thread Pitch - mm 56
Maximum TPI 6 mm

Description

This Mitutoyo 188-152 Screw Pitch Gage is a perfect tool for checking pitch in screws. It features leaves that are designed to fit into narrow spaces, making it ideal for use on small holes and bores. This screw pitch gage has a wide range of pitches per inch and per millimeter. The maximum pitch diameter is 6 mm, while the minimum pitch diameter is 0.05 mm. It also comes with 60 degrees thread angle and 60 degrees thread angle. The leaves are made of steel, which makes them durable and long lasting. They also fold flat when not in use for easy storage or transport. If you want a reliable tool that can help you check the pitch of screws easily, then this Mitutoyo 188-152 Screw Pitch Gage is just what you need.
